Power Computers
2
www.moxa.com
Hardware Specifications
Computer
CPU: 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz
OS: Linux Debian 8 (pre-installed)
W7E available by CTOS
System Chipset: Intel HM65
BIOS: 64 Mbit Flash BIOS, PCI Plug & Play, ACPI
System Memory: 8 GB capacity, 2 GB for Linux pre-installed; 1 slot of
DDR3-1066/1333 SO-DIMM SDRAM
Expansion Bus: PCI/104 onboard (DPP models only)
USB: 4 USB 2.0 ports, system bootable, type A connector
Storage
Built-in: 8 GB for Linux (pre-installed in mSATA)
Storage Expansion: SATA 3.0 interface
Display
Graphics Controller: Intel® HD Graphics (Integrated)
Display Memory: Dynamic video memory (shares up to 32 MB of
system memory)
Display Interface: CRT Interface for VGA output (DB15 female
connector)
Resolution: CRT display mode with pixel resolution up to 2048 x 1536
at 75 Hz
Ethernet Interface
LAN: 6 auto-sensing 10/100/1000 Mbps ports
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards:
• 2 RS-232/422/485 ports (DB9 male)
• 10 RS-485 ports (terminal block)
ESD Protection: 15 kV for all signals
Surge Protection: 4 kV (DA-681A-I-DPP-T only)
Isolation: 2 kV digital galvanic isolation
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs
System: Power, Storage
LAN: 100M x 6, 1000M x 6
Serial:
RS-232/422/485: 2 x Tx, 2 x Rx
RS-485: 10 x Tx, 10 x Rx
Programmable: 6 LEDs
Power Failure: LED x 2 (dual power models)
Switches and Buttons
Power Button: On/Off (on rear panel)
Reset Button: Hard Reset (on front panel)
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight: 4.5 kg
Dimensions: 440 x 315 x 45 mm (17.32 x 12.40 x 1.77 in), 19 inch 1U
height
Mounting: Standard 19-inch rackmount
Environmental Limits
Operating Temperature:
SP Models: -25 to 55°C (-13 to 131°F)
DPP Models: -25 to 55°C (-13 to 131°F)
DPP-T Models: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration: 7 mm (2-9 Hz), 20 m/s/s (9-200 Hz), 15 m/s/s
(200-500 Hz) @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/(4M6), sine
wave, 2-500 Hz, 1 Oct/min, 10 cycles, 2 hrs 40 mins per axis
Anti-Shock: 300 m/s2 @ IEC-61850-3, IEC 60870-2-2/Cm/(3M6)/
(4M6), half sine wave, 11 ms
Power Requirements
Input Voltage: Single or dual inputs, 100 to 240 VAC/VDC auto-
ranging, 47 to 63 Hz, terminal block
Power Consumption: 30 W

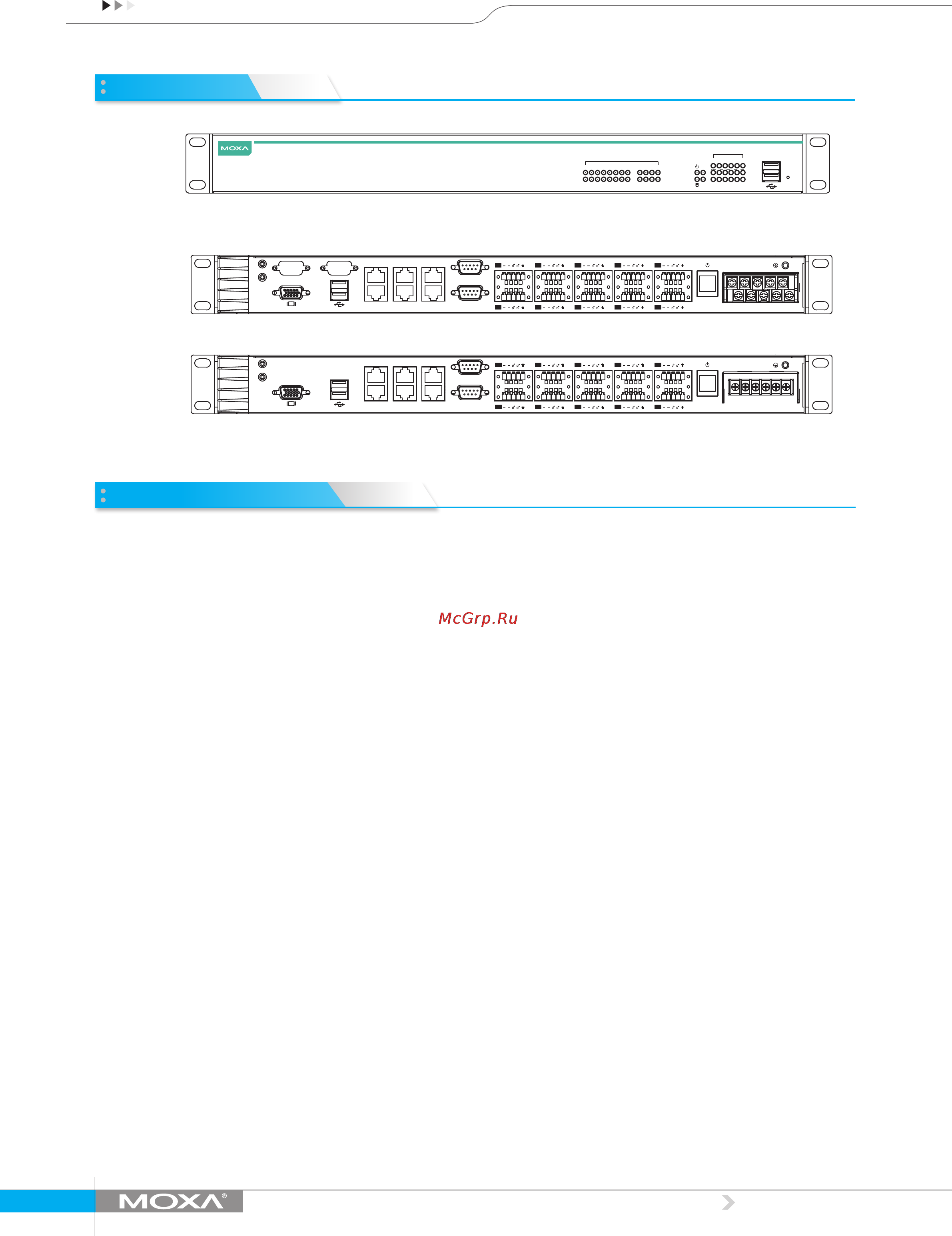

Appearance
Front View
Programmable LED
Eth ernet
Reset
1 2 3 4 5 6
1P2
P1
TX
RX
2 3 4 5 6
100Mbps
1000Mbps
Seria l Port
1 2 3 4 5 6 7 8 9 10 11 12
DA-681A
Industrial Embedded Computer
Rear View
LAN2
LAN1 LAN3 LAN5
P1
LAN4 LAN6
100-240 VAC/VDC
RS-232/ 422/485
RS-485
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P2
LA N2
LA N1 LA N3 LA N5
P1
LA N4 LA N6
100-240 VAC/V DC
RS-232 /422/48 5
RS-48 5
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P2
DA-681A-DPP & DA-681A-DPP-T
DA-681A-SP
