M-Audio Thru 1x4 [3/4] Thru 1x4 hook up diagram

Out of the instrument or sequencer you are

"Thruing." Next, connect each of Thru 1x4's MIDI

OUTs to the various instrument's MIDI Ins. All of

Thru 1x4's MIDI OUTs are identical so it doesn't

matter which MIDI OUT is connected to which MIDI

In.

Thru 1x4 is designed to consume almost no power.

However, very, very, rarely you may encounter some

older MIDI device which requires more power than

Thru 1x4 can deliver. This can only happen if the

Thru 1x4

™

POWER MIDI IN +9VDC

1 IN/4 OUT MIDI THRU BOX

MIDI OUT

1234

(Optional)

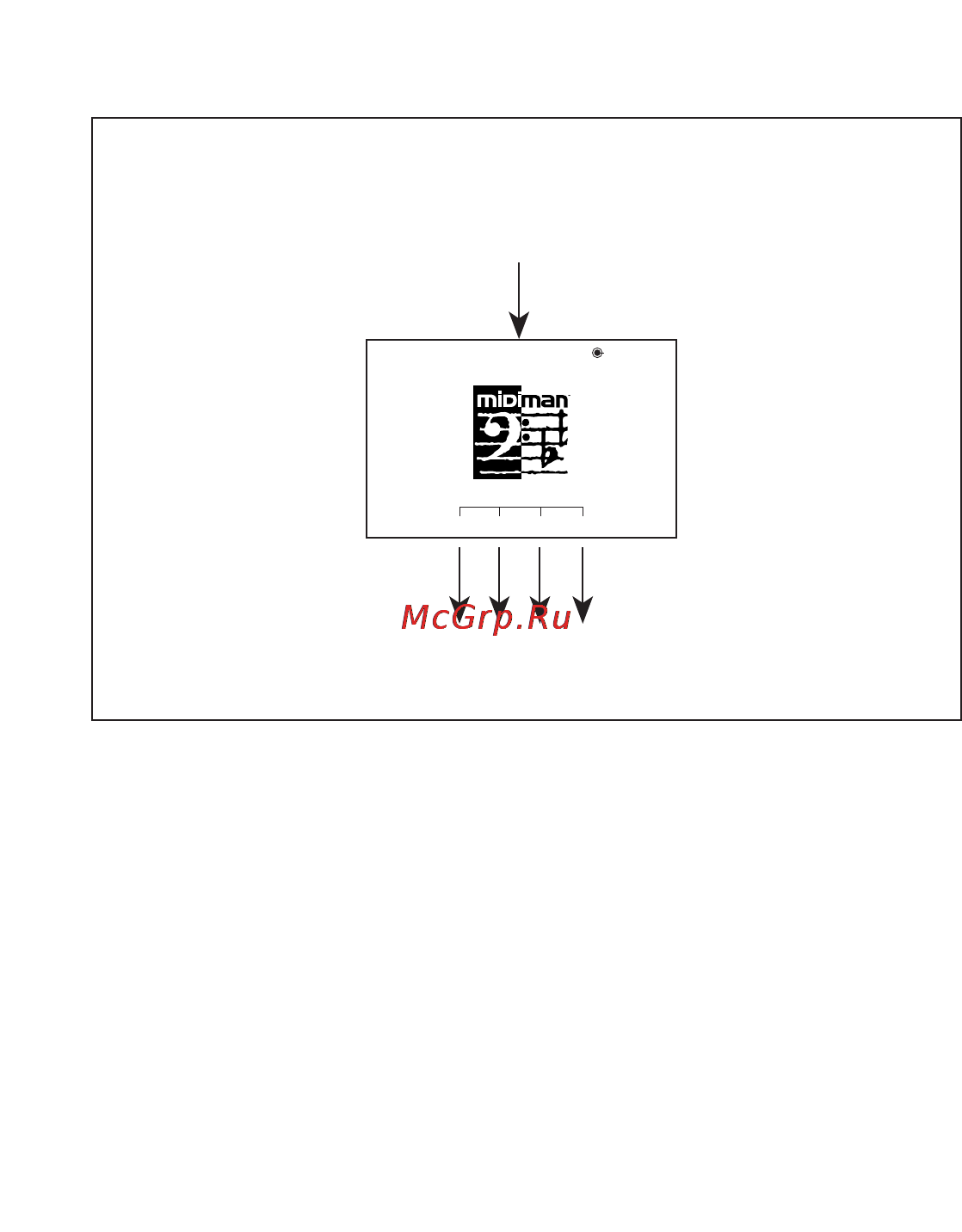

Thru 1x4 Hook-Up Diagram

From MIDI Out of Master Keyboard or Sequencer

To Various Instrument's MIDI Ins
