Hardware Installation

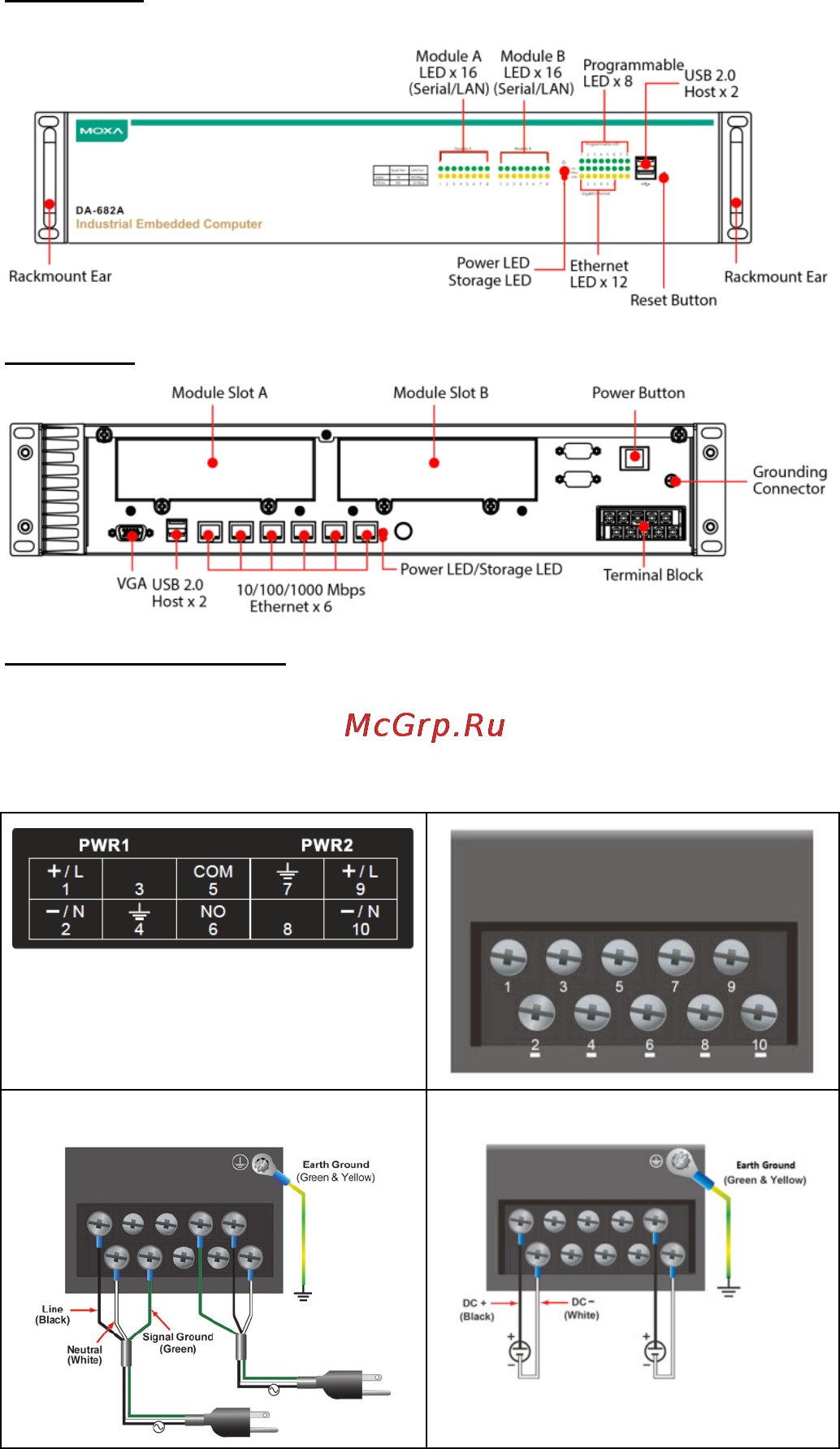

Front View

Rear View

Connecting the Power

The DA-682A-DPP has dual power inputs. Use a Phillips screwdriver to

remove the terminal clamp screws. Connect the power cord to the screws,

and then fasten the screws to the unit. Refer to the following figure for

detailed information:

AC Terminal

DC Terminal
