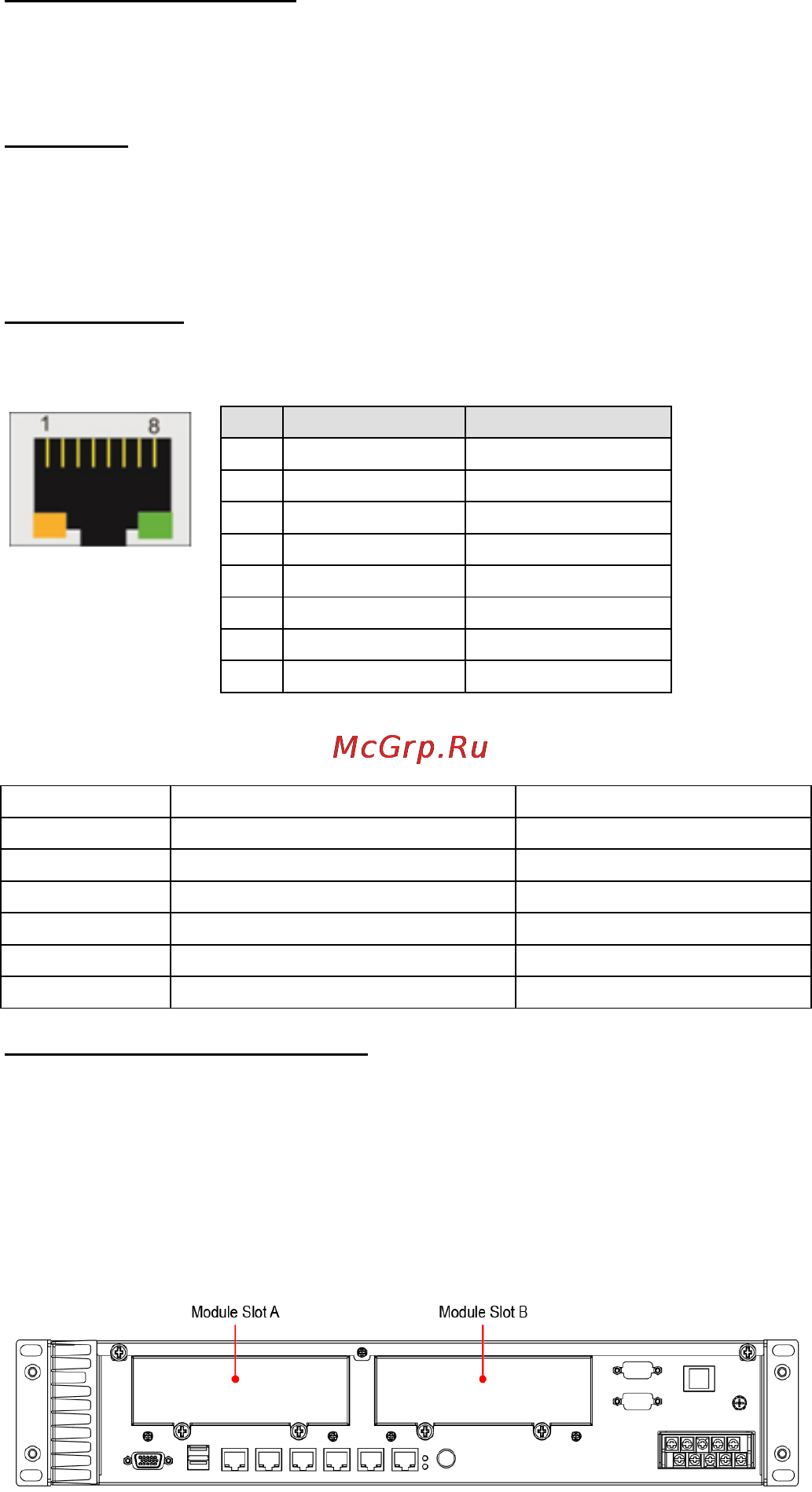

- 5 -
Connecting to a Display
The VGA hardware interface is a D-Sub 15-pin female connector. Be sure
to cut off system power before you connect or disconnect the monitor
cable.
USB Ports
The DA-682A-DPP comes with four USB 2.0 ports, two on the rear panel,
and two on the front. Users may use these USB ports to connect keyboard,
mouse, or other peripherals such as flash drives to expand the system’s
storage capacity.
Ethernet Ports
The DA-682A-DPP provides six 100/1000 Mbps Ethernet RJ45 ports. The
pin assignments are shown in the table below:
Pin
100 Mbps
1000 Mbps
1
Tx+
TRD(0)+
2
Tx-
TRD(0)-
3
Rx+
TRD(1)+
4
–
TRD(2)+
5
–
TRD(2)-
6
Rx-
TRD(1)-
7
–
TRD(3)+
8
–
TRD(3)-
The default IP addresses and netmasks of the Ethernet ports are as
follows. Please note that W7E models default to DHCP.
Default IP Address
Netmask
LAN 1
192.168.3.127
255.255.255.0
LAN 2
192.168.4.127
255.255.255.0
LAN 3
192.168.5.127
255.255.255.0
LAN 4
192.168.6.127
255.255.255.0
LAN 5
192.168.7.127
255.255.255.0
LAN 6
192.168.8.127
255.255.255.0
Installing Expansion Modules
The DA-682A-DPP is provided with two expansion slots, which can be
used to connect Moxa’s DA Series expansion modules. These modules
provide serial ports, Ethernet LAN interfaces, unmanaged switch ports,
and fiber interfaces. The modules can also serve as PCI development
modules for custom application development for PCI-based devices.
Expansion modules are loaded using the slots on the rear panel of the
DA-682A-DPP computer.
