DA-682A-DPP Hardware Introduction

1-4

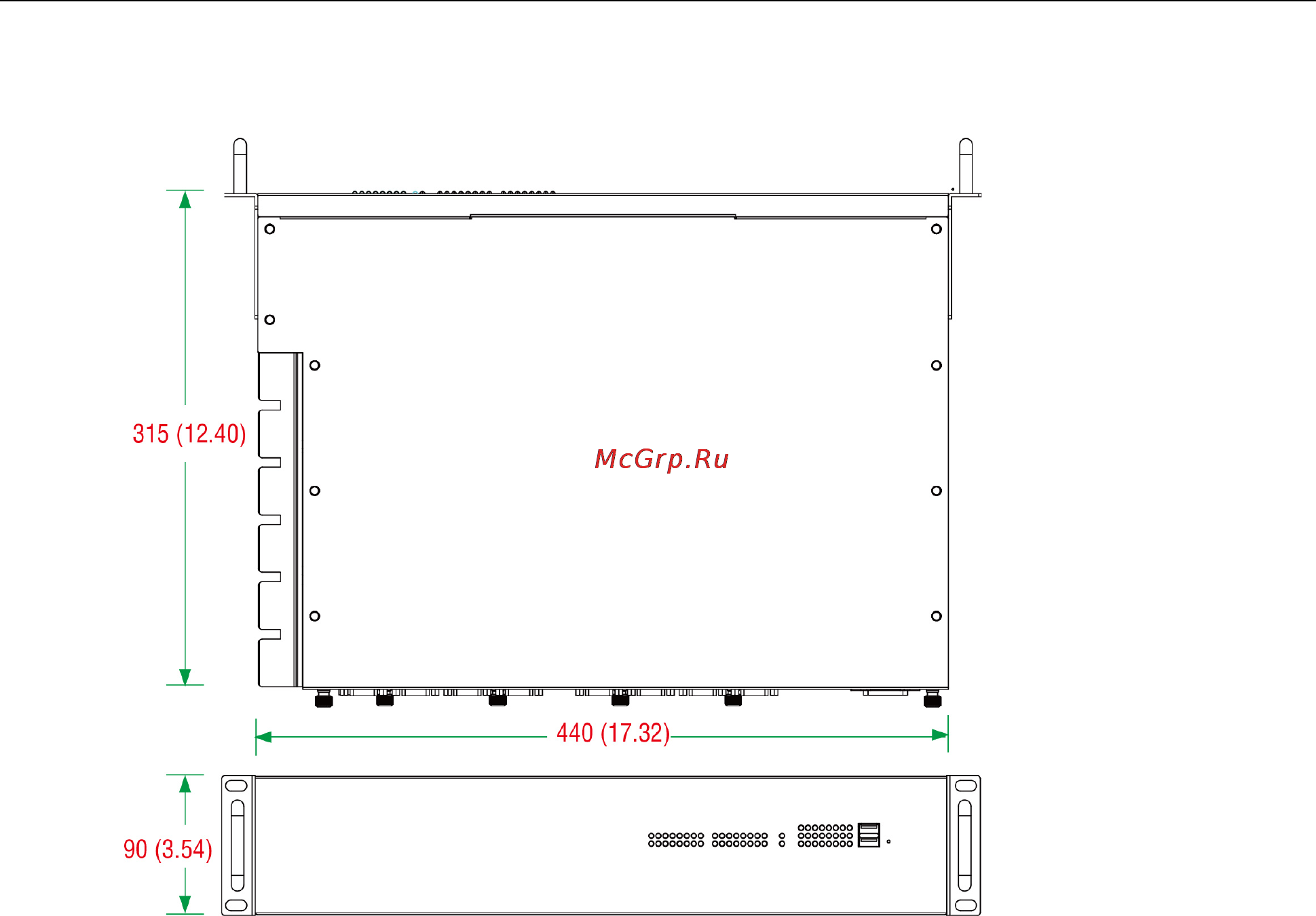

Dimensions

Features

The DA-682A-DPP computer has the following features:

• IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems

• 3rd generation Intel core processors (Ivy Bridge)

• Built-in DDR3 SDRAM and industrial DOM

• 6-gigabit Ethernet ports for network redundancy

• 2 PCI expansion slots for expansion modules

• 1 CompactFlash socket for storage expansion

• 4 high-speed system-bootable USB 2.0 ports

• Supports both 100 to 240 VAC and VDC power inputs (dual power)

• Optional IRIG-B expansion module for time synchronization.

• 8 or 16 software selectable RS-232/422/485 serial ports, with or without isolation protection
