Mac OS X (10.1.3 or later)
1. Insert the Sonica Software CD into your CD-ROM Drive and open the
CD to view its contents.

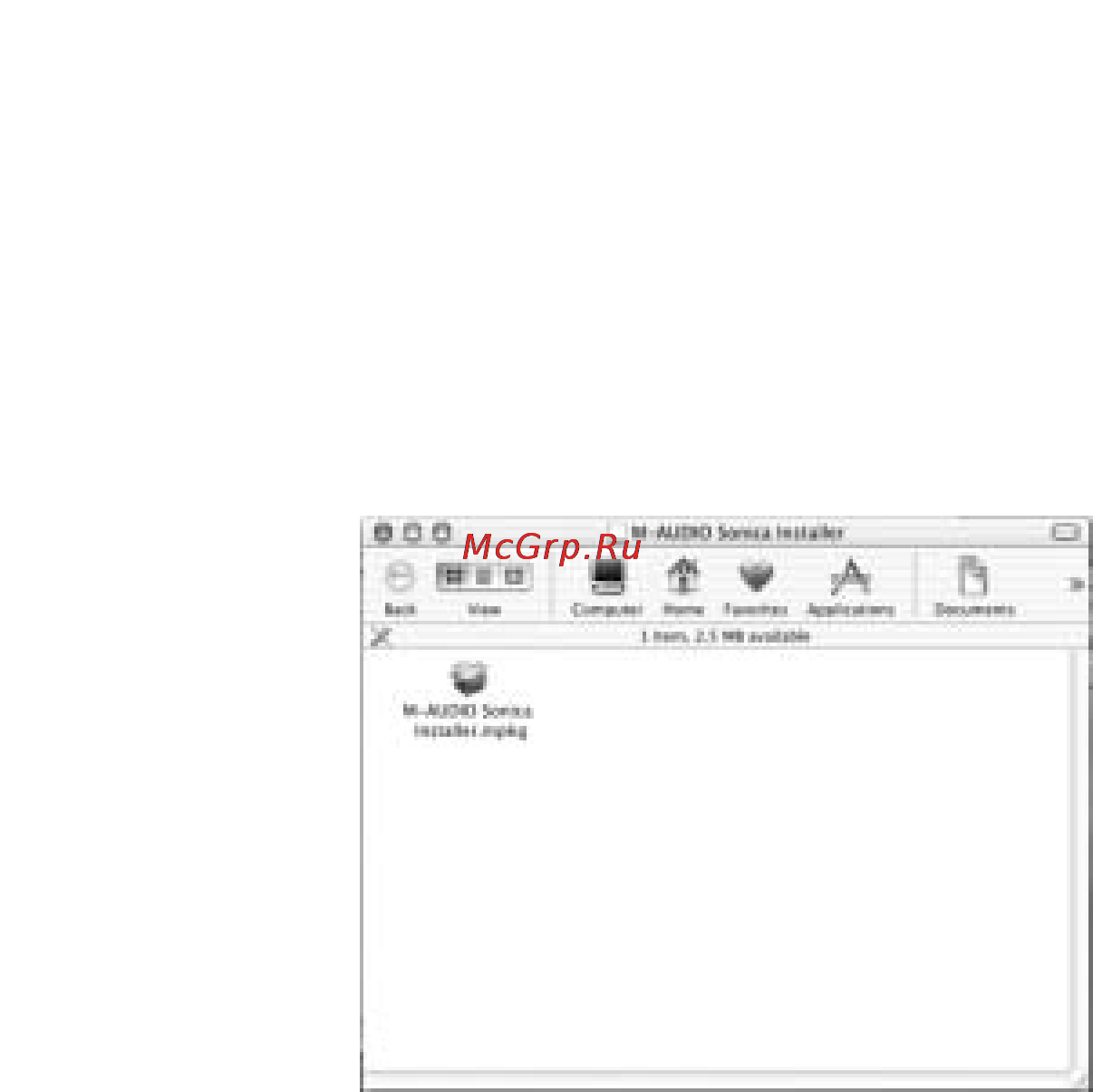

2. Double click "M-Audio Sonica Installer.dmg" file. An Icon will appear on
your desktop marked "Sonica."
3. Double click the "Sonica" icon on your desktop.
4. Now double click on the "M-Audio Sonica Installer.mpkg."
5. You will need your Administrator Password for the next step. To
continue,click the lock icon in the lower left corner of the window that
states,“Click The Lock To Make Changes."
6. Enter your password and click "OK."
7. The next window "Welcomes You..." to the installation process.
Click "Continue."
8. Select your OS X hard drive. Click "Continue."
9. When prompted,click "Upgrade" to continue.
10. When prompted, click "Continue Installation."
11. When prompted, click "Restart" to finish the installation.
12. After the computer has restarted, now plug the Sonica into your
computer’s USB Port.
13. Go to "System Preferences" in the Apple Menu. Select the "Sound"
preference panel, and click the "Output" tab. Select "M-Audio Sonica"
to choose the Sonica as your default output device.
Mac OS X Installation is now complete.
10
Содержание
- Sonica manual 1
- Table of contents 1
- Usb audi 1
- Introduction 2
- Sonica features 3
- What s in the box 3
- System requirements 4
- A closer look 5
- The following is an illustration of your sonica with a description of its connectors and components please see the section hooking up your sonica for more information 5
- Software installation 6
- Windows 2000 7
- Windows 2000 installation is now complete 7
- Windows xp installation is now complete 7
- Windows me 8
- Windows me installation is now complete 8
- Mac os 9 9
- Mac os 9 installation is now complete 9
- Mac os x 10 or later 10
- Mac os x installation is now complete 10
- Hooking up your sonica 11
- Note for those who have a coaxial digital connector rather than optical connector on your surround receiver or other digital device you may use the co2 coaxial optical converter from m audio to connect your sonica the c02 coaxial optical converter allows you to use an optical digital device with a coaxial digital input or vice versa for more information about the co2 go to http www m audio com products m audio co2 php 12
- Sonica 12
- Using analog connection 12
- Using optical digital connection 12
- Using the sonica with a software dvd player 13
- Using the srs trusurround xt software 14
- Contact information 17
- For additonal help contact midiman m audio technical support by telephone 626 445 7556 9 5 pst m f by fax 626 445 8407 or by e mail support m audio com 17
- Macintosh os x will allow you to select the sonica as the system s audio output device to check your computer s audio output setting and select the sonica 17
- Sonica and macintosh os x 17
- Sonica and the macintosh sound manager 17
- Sonica and the windows sound system 17
- The macintosh sound manager in os 9 will allow you to select the sonica as the system s audio output device to check your computer s audio output setting and select the sonica 17
- The sonica s windows multimedia drivers will allow you to use the sonica as your windows system sound device if the sonica is the only audio device installed in your computer then windows will select it automatically otherwise you may need to tell windows to use the sonica to check your windows audio setting and select the sonica 17
- Sonica warranty 18
- Asq 061002 19
