2
www.moxa.com
info@moxa.com
Power Computers

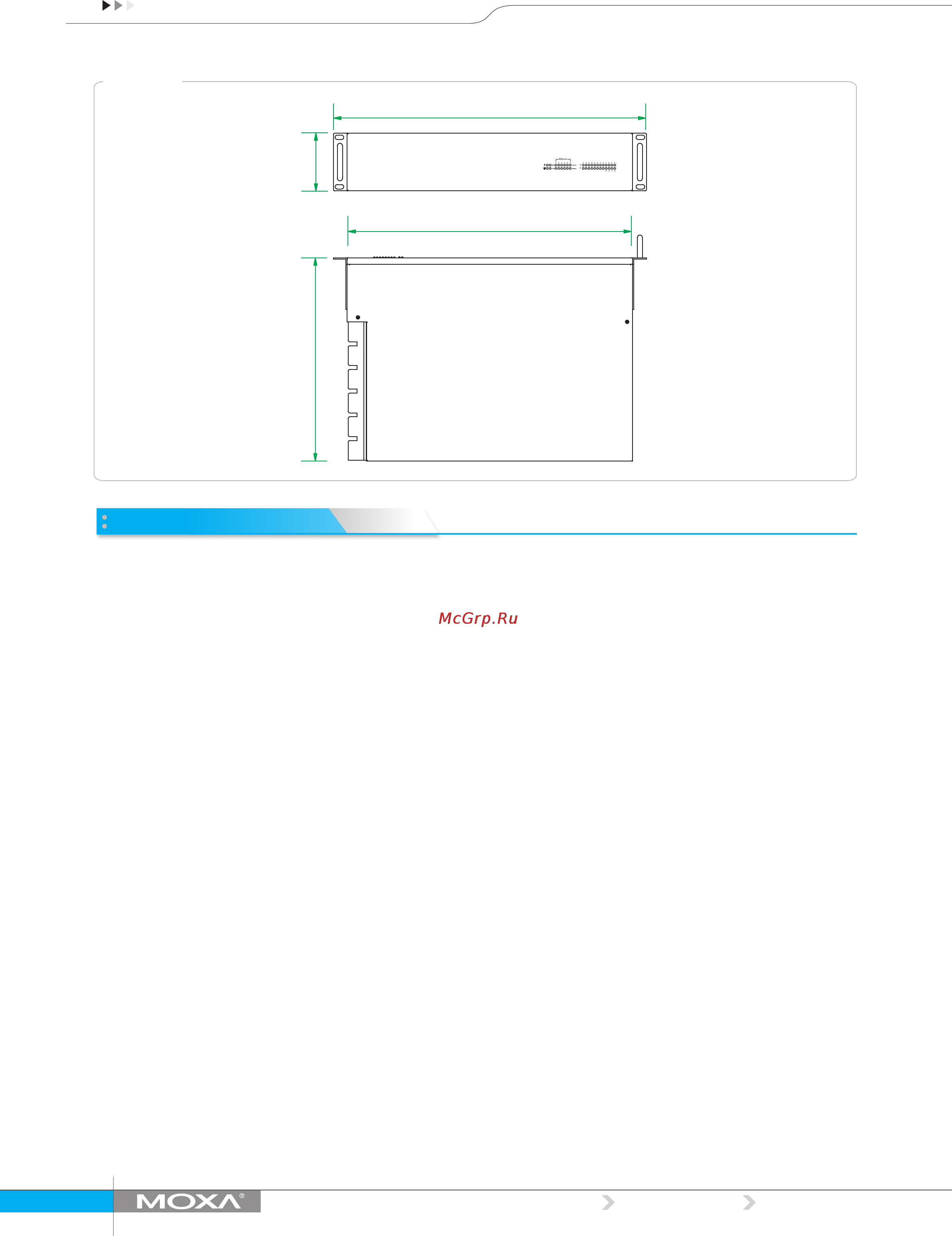

Dimensions
Unit: mm (inch)
Hardware Specifications
Computer
CPU: Intel Atom D510 1.66 GHz processor
OS: Linux, Windows Embedded Standard 2009, or Windows
Embedded Standard 7
System Chipset: Intel Pineview-D + ICH8M
BIOS: 16 Mbit Flash BIOS, PCI Plug & Play, ACPI function support
FSB: 667 MHz
System Memory: 2 GB capacity, 1 GB (LX and XPE)/ 2 GB (W7E)
pre-installed: 1 or 2 slots of 2 GB 200-pin DDR2-667 SO-DIMM
Expansion Bus: PCI/104 interface reserved
USB: USB 2.0 compliant hosts, Type A connector x 2, supports system
boot up
Storage
Built-in: 2 GB (LX and XPE) / 8 GB (W7E) industrial DOM onboard to
store OS
Storage Expansion: CompactFlash socket for CF card expansion,
supporting CF Type-I/II
HDD Support: 1 SATA connector for drive expansion
Other Peripherals
KB/MS: 1 PS/2 interface, supports standard PS/2 keyboard and mouse
through Y-type cable
Display
Graphics Controller: Intel
®
GMA3150 graphics controller on Intel
D510 card
Display Interface: VGA output (DB15 female connector)
Resolution: CRT display mode with pixel resolution up to 2048 x 1536
at 75 Hz
Ethernet Interface
LAN: 6 auto-sensing 10/100/1000 Mbps ports
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards:
• 2 RS-232/422/485 ports (DB9 male)
• 6 RS-485-2W ports (terminal block)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND, RI
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs
System: Power, Storage
Gigabit LAN: 100M x 6, 1000M x 6
Serial: TX/RX
Programmable: LED x 8
Switches and Buttons
Power Switch: on/off (on rear panel)
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight: 4 kg
Dimensions: 315 x 440 x 90 mm (12.40 x 17.32 x 3.54 in) (without
rackmount ears)
Mounting: Standard 19-inch rackmount
Environmental Limits
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-vibration: 2 G
rms
@ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per
axis
Anti-shock: 20 g @ IEC-68-2-27, half sine wave, 11 ms
Power Requirements
Input Voltage: 100 to 240 VAC, 50/60 Hz, 0.9-0.4 A
Power Consumption: 40 W
Standards and Certifications
Safety: LVD, UL, cUL, CCC
EMC: FCC, CE (Class A)
Green Product: RoHS, CRoHS, WEEE
Reliability
Alert Tools: Built-in buzzer and RTC (real-time clock) with lithium
backup battery
Automatic Reboot Trigger: Built-in WDT (watchdog timer) supporting
1-255 level time interval system reset, software programmable
Warranty
Warranty Period: 3 years
Details: See www.moxa.com/warranty
Programmable
LED
Serial Ports
440 (17.32)
483 (19.02)
90 (3.54)
315 (14.40)
