STEP 4: Connect the antenna cables to the

wireless module card

No.

2 & No. 4: 3G/LTE mini-PCIe card

No.

5: GPS

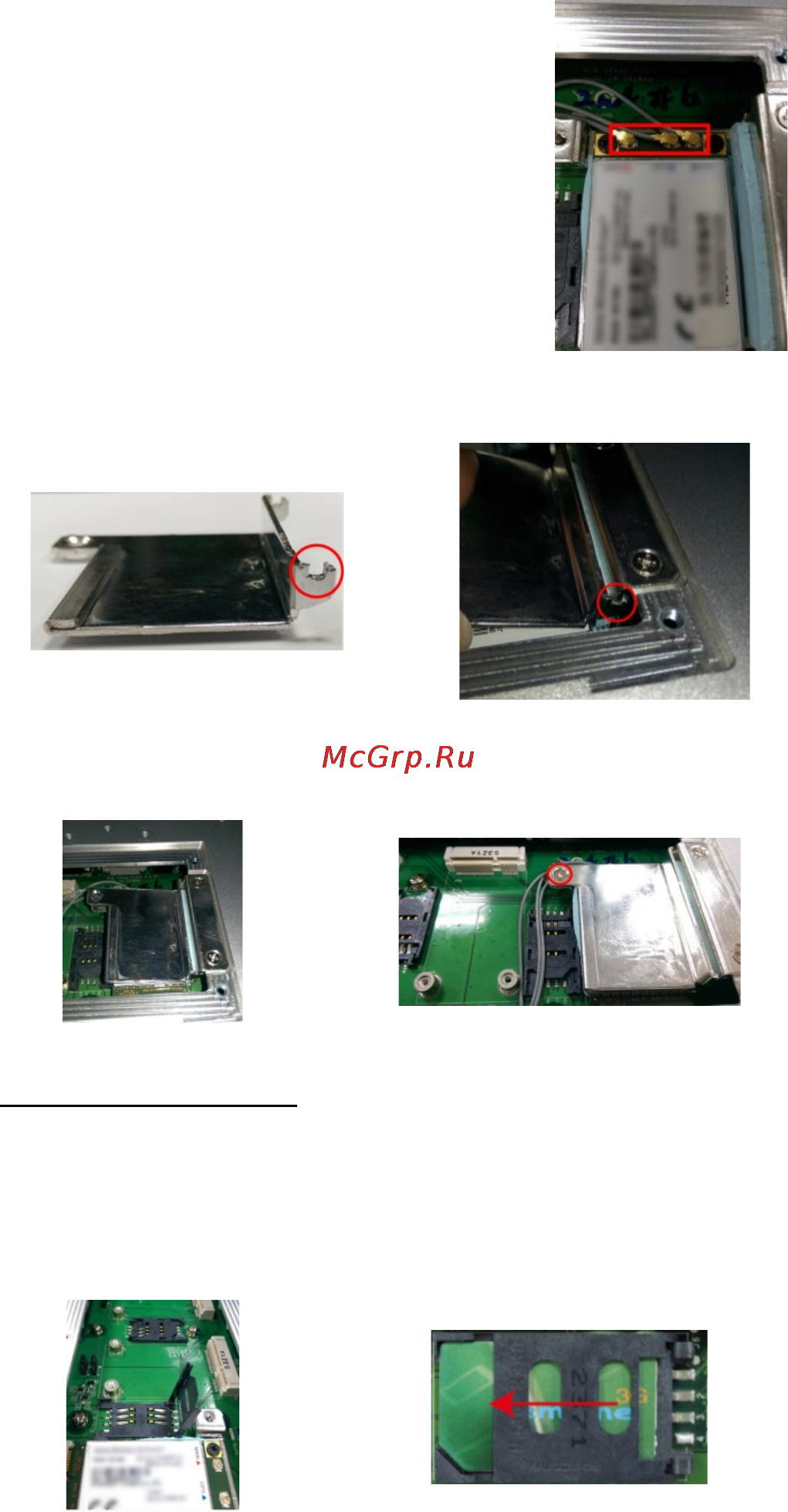

STEP 5: Use the fillister to obliquely buckle the heat sink that was already

installed inside the V2403 computer, as shown below:



STEP 6: Slightly push down the upper heat sink cover and use the silver

screw from the wireless package to fasten the upper heat sink cover

(outlined in red below).



STEP 7: Replace the bottom cover.

Installing the USIM card

The V2403 has 2 USIM slots for 3G/LTE wireless Internet connections.

Instructions for installing a USIM card are shown below:

Pull up the USIM card slot and insert the USIM card. When finished,

replace the holder and slide the slot towards the catch to fasten the

holder.


