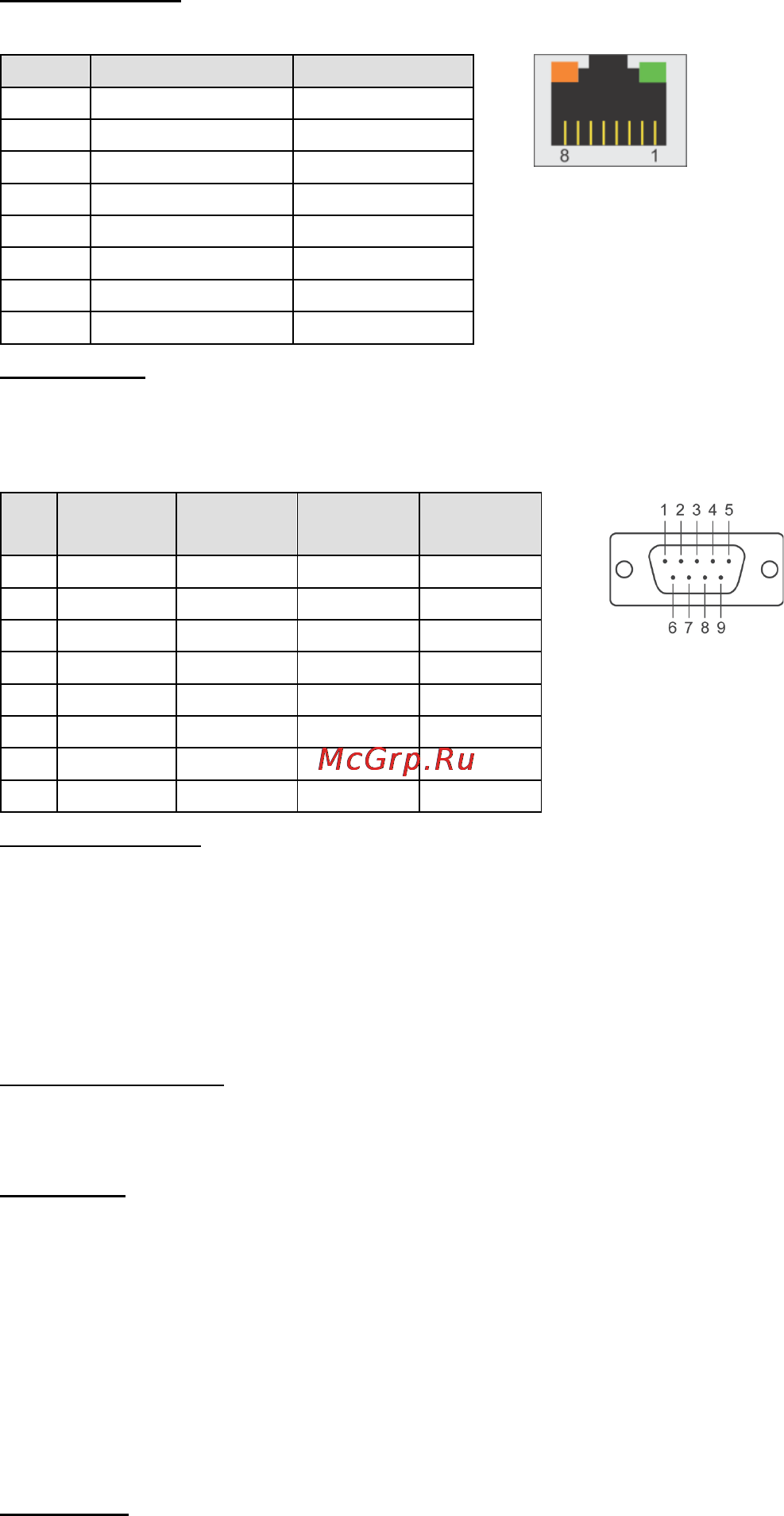

- 9 -
Ethernet Ports
The 10/100/1000 Mbps Ethernet ports use RJ45 connectors.
Pin
10/100 Mbps
1000 Mbps
1
ETx+
TRD(0)+
2
ETx-
TRD(0)-
3
ERx+
TRD(1)+
4
–
TRD(2)+
5
–
TRD(2)-
6
ERx-
TRD(1)-
7
–
TRD(3)+
8
–
TRD(3)-
Serial Ports
The serial ports use DB9 connectors. Each port can be configured by
software for RS-232, RS-422, or RS-485. The pin assignments for the
ports are shown in the following table:
Pin
RS-232 RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1
DCD
TxDA(-)
TxDA(-)
–
2
RxD
TxDB(+)
TxDB(+)
–
3
TxD
RxDB(+)
RxDB(+)
DataB(+)
4
DTR
RxDA(-)
RxDA(-)
DataA(-)
5
GND
GND
GND
GND
6
DSR
–
–
–
7
RTS
–
–
–
8
CTS
–
–
–
SATA Connector
The V2403 has 1 SATA-I/II connector for 2.5” SSD/HDD storage
expansion. To expand storage capacity, purchase an SSD/HDD and an
internal storage kit* through Moxa’s CTO** service.
*
Must be purchased separately for installing an SSD/HDD. For details,
check the optional accessories section of the V2403 datasheet.
**
CTO = Configure to order
mSATA Connector
The V2403 has 1 mini-PCIe socket with SATA signal for storage expansion.
Follow the “Installing the Wireless Modules” instructions.
CFast Slot
The V2403 has 2 CFast sockets. One slot is located on the front panel for
OS storage and the other slot is located inside the V2403 for backup OS
storage. Both slots support CFast Type-I/II with DMA mode.
To install an OS CFast card, remove the outer cover and insert the CFast
card in the socket. When finished, push the cover into the socket and
refasten the screws.
To install a CFast card for backup storage, purchase a CFast card through
Moxa’s CTO service. Refer to the V2406A datasheet for more information.
USB Hosts
The V2403 has 4 USB 2.0 Type A connectors. 2 USB ports are located on
the front panel; the other 2 USB ports are located on the rear panel. The
port supports keyboard and mouse, and can also be used to connect a
FlashDisk for storing large amounts of data.
Содержание
- Edition 1 september 2015 1
- V2403 quick installation guide 1
- Overview 2
- Package checklist 2
- V2403 panel layout 2
- Attention attention 3
- Installing the mini pcie modules and usim cards 3
- Installing the v2403 6
- Attention 8
- Connector description 8
- Attention 10
- Connecting the v2403 to a pc 10
- Powering on the v2403 10
- Configuring the ethernet interface 11
