V2401/2402 WinXP User’s Manual Introduction
1-13
Eight RS-232 Serial Ports (V2401 only)
The V2401 also offers eight RS-232 serial ports by connecting with a 68-pin VHDC cable. These
eight serial devices will be named “COM5” to “COM12”
Follow the steps below to set the operation mode of each COM port:

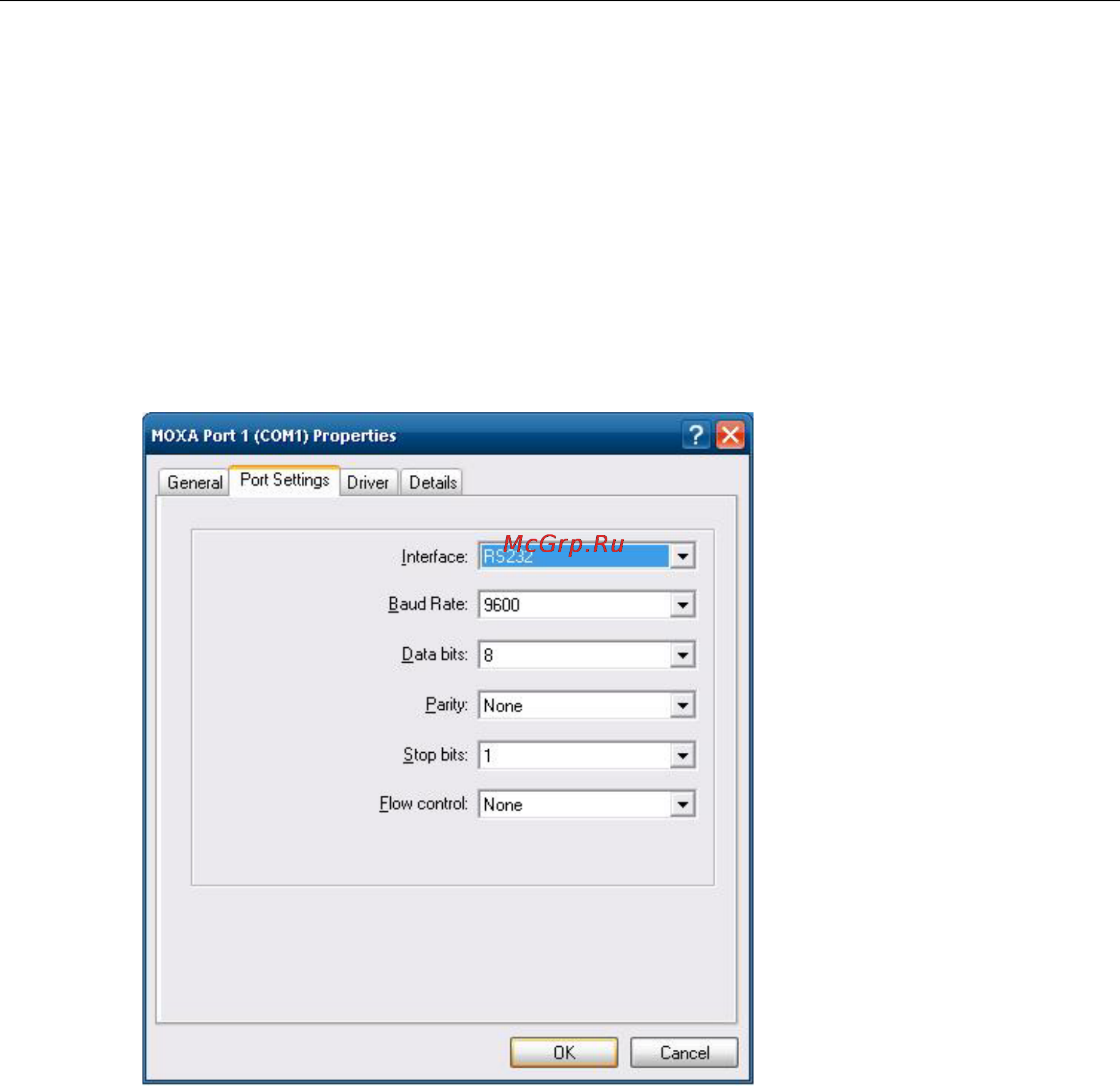

A. Go to the Control Panel Æ Ports (COM & LPT) and select the COM port (ex. MOXA Port
0 (COM1)).
B. Right-click the COM port and click Properties.
C. At the Port Settings tab, select the interface you wish to use.
D. Click OK to apply these settings.
