V2401/2402 Series Linux User’s Manual Introduction
1-2
Overview
V2401/2402 embedded computers are based on the Intel Atom N270 x86 processor and feature 4
RS-232/422/485 serial ports, 8 RS-232 serial ports, dual Gigabit LAN ports, six USB 2.0 hosts,
and a CompactFlash socket. The V2401/2402 series offers both VGA and LVDS outputs, making
it exceptionally well suited for industrial applications such as SCADA and factory automation.
The V2401/2402’s two serial ports make it ideal for connecting a wide range of serial devices, and
the dual 10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, which
taken together promise continuous data communication and management operations. For added
convenience, the V2401/2402 has four DIs and four DOs for connecting digital input/output
devices. In addition, the CompactFlash and USB ports provide V2401/2402 computers with data
buffering and storage expansion, which provide the necessary reliability for industrial applications.
Pre-installed with Linux, the V2401/2402 series provides programmers with a friendly
environment for developing sophisticated, bug-free application software at a lower cost.
All V2401/2402 models support a wide operating temperature range of -40 to 85°C for use in
harsh industrial environments.
Software Specifications
The Linux operating system pre-installed on the V2401/2402 embedded computer is the Debian
Lenny 5.02 distribution. The Debian project is a worldwide group of volunteers who endeavor to
produce an operating system distribution that composed entirely of free software. The Debian
GNU/Linux follows the standard Linux architecture, making it easy to use programs that meet the
POSIX standard. Program porting can be done with the GNU Tool Chain provided by Moxa. In
addition to Standard POSIX APIs, device drivers for Moxa UART and other special peripherals

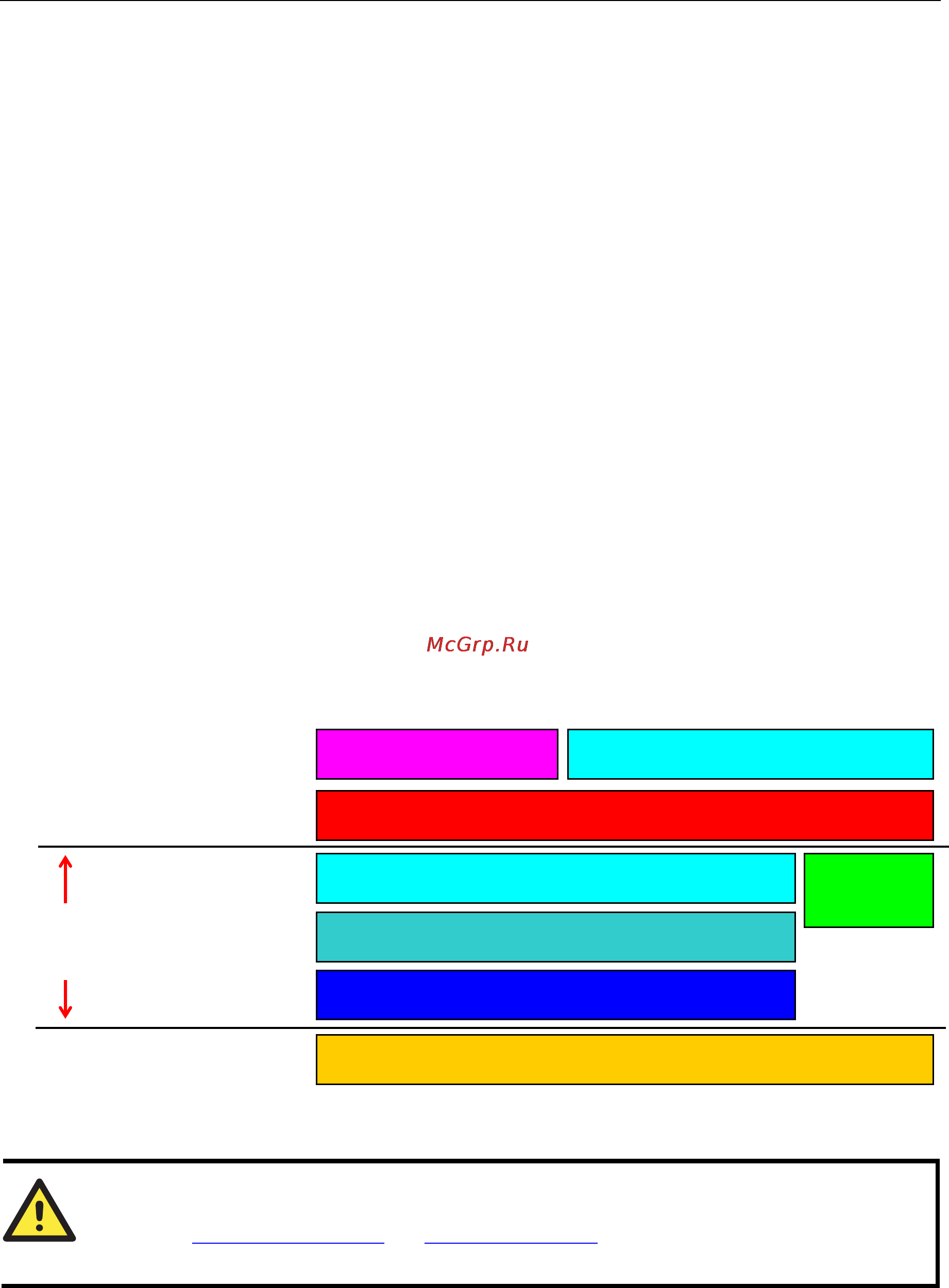

are also included. An example software architecture is shown below:
ATTENTION
Refer to http://www.debian.org/
and http://www.gnu.org/ for information and documentation of
the Debian GNU/Linux and free software concept.
RS-232/422/485, Ethernet, CompactFlash, SATA, USB
Memory Control, Schedule, Process
PCMCIA, CF, WLAN, USB, UART, RTC, VGA
TCP, IP, UDP, CMP, ARP, HTTP, SNMP, SMTP
Daemon (Apache, Telnet, FTPD)
Application Interface (POSIX, Socket, Secure Socket)
User Applications
File
System
Hardware
Micro Kernel
Device Driver
Protocol Stack
API
AP
Linux
Kernel
