Moxa V2401-LX [2/2] Attention

Moxa V2401-CE [2/2] Attention
– 4 – – 5 – – 6 –
www.moxa.com/support
The Americas:
+1-714-528-6777 (toll-free: 1-888-669-2872)
Europe:
+49-89-3 70 03 99-0
Asia-Pacific:
+886-2-8919-1230
China:
+86-21-5258-9955 (toll-free: 800-820-5036)
2010 Moxa Inc., All Rights Reserved

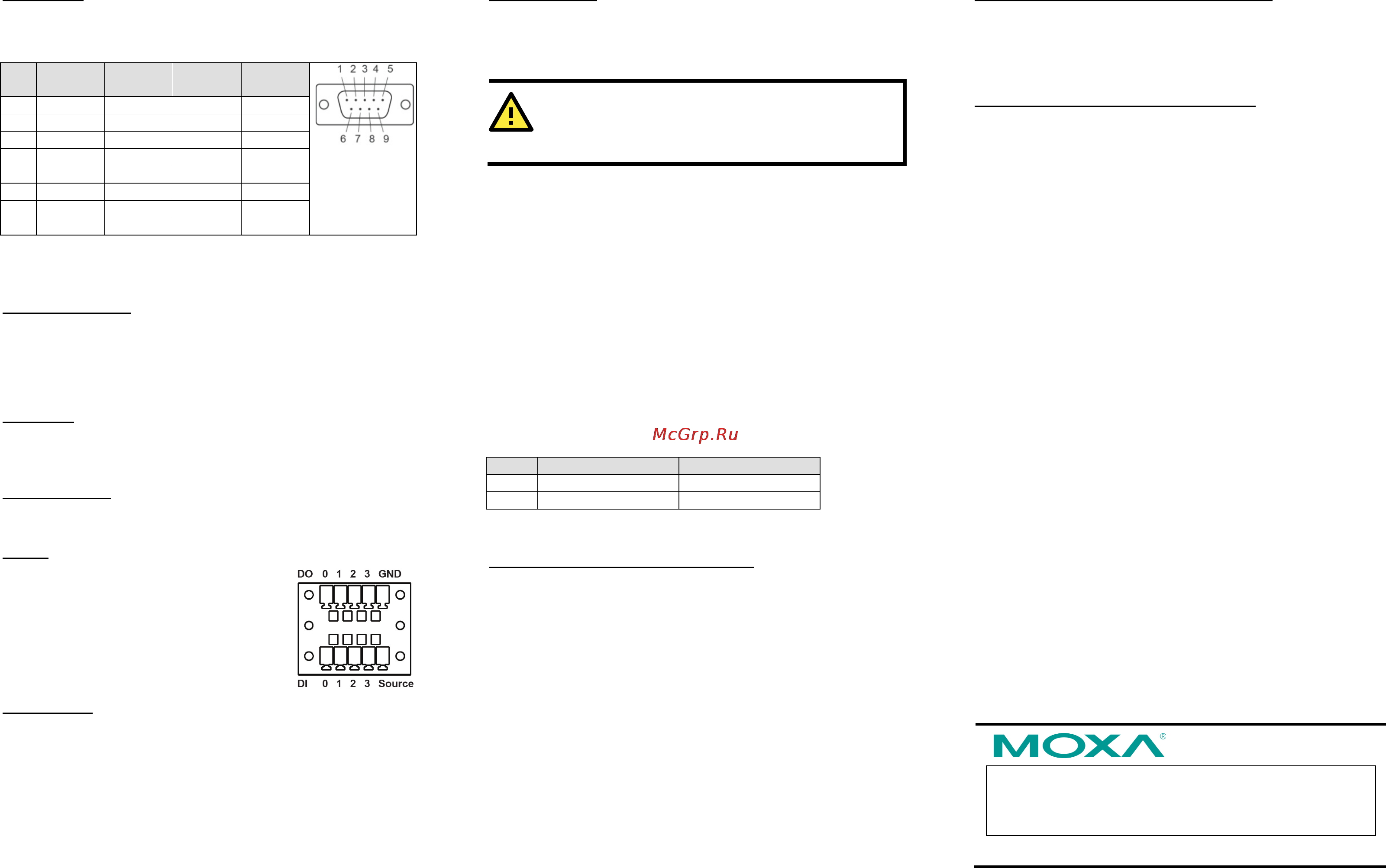

Serial Ports
The serial ports use DB9 connectors. Each port can be configured
by software for RS-232, RS-422, or RS-485. The pin assignments
for the ports are shown in the following table:
Pin RS-232 RS-422 RS-485
(4-wire)
RS-485
(2-wire)
1 DCD TxDA(-) TxDA(-) –
2 RxD TxDB(+) TxDB(+) –
3 TxD RxDB(+) RxDB(+) DataB(+)
4 DTR RxDA(-) RxDA(-) DataA(-)
5 GND GND GND GND
6 DSR – – –
7 RTS – – –
8 CTS – – –
The V2401 includes a serial connector on the front panel; it can
connect eight serial devices with a 68-pin VHDC connector and
transmit the data with the RS-232 interface.
CompactFlash Slot
The V2401/2402 has an internal CompactFlash slot for storage
expansion. It supports CF Type-I/II with DMA mode. To install a
CompactFlash card, remove the outer cover, and then insert the
CF card in the socket. When finished, push the cover into the
socket and fasten the screws.
USB Hosts
The V2401/2402 has four USB 2.0 hosts on the front panel and two
USB 2.0 hosts on the rear panel. Users may use these USB ports to
connect flash disks for storing large amounts of data.
Audio Interface
The V2401/2402 comes with an audio input and an audio output,
allowing users to connect a speaker or an earphone.
DI/DO
The V2401/2402 comes with 4-
ch digital input
and 4-ch digital output in the terminal block
connectors.
Reset Button
Press the “Reset Button” on the rear panel of the V2401/2402, the
system will reboot automatically. The Ready LED will blink on and
off for the first 5 seconds, and then maintain a steady glow once
the system has rebooted.
Real-time Clock
The V2401/2402’s real-time clock is powered by a lithium battery.
We strongly recommend that you do not replace the lithium
battery without help from a qualified Moxa support engineer. If you
need to change the battery, contact the Moxa RMA service team.
ATTENTION
There is a risk of explosion if the battery is replaced by an
incorrect type of battery.
Powering on the V2401/2402
To power on the V2401/2402, connect the “terminal block to
power jack converter” to the V2401/2402’s DC terminal block
(located on the side panel), and then connect the power adaptor.
Press the Power Button to turn on the computer. Note that the
Shielded Ground wire should be connected to the top pin of the
terminal block. It takes about 30 seconds for the system to boot up.
Once the system is ready, the Power LED will light up.
Connecting the V2401/2402 to a PC
Power on the V2401/2402 computer after connecting a monitor,
keyboard, and mouse, and verifying that the power source is ready.
Once the operating system boots up, the first step is to configure
the Ethernet interface. The factory default settings for the
V2401/2402’s LANs are show below. (XPE models uses DHCP)
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
Configuring the Ethernet Interface
Linux users should follow these steps:
If you use the console cable to configure Network settings for the
first time, use the following commands to edit the interfaces file:
#ifdown –a
//Disable LAN1~LAN2 interface first, before you
reconfigure the LAN settings. LAN1 = eth0, LAN2 =
eth1//
#vi /etc/network/interfaces
//check the LAN interface first//
After the boot setting of the LAN interface has been modified, use
the following commands to activate the LAN settings immediately:
#sync; ifup –a
WinCE 6.0 users should follow these steps:
1. Go to [Start] [Settings] [Network and Dial-Up
Connections]. You will see two network interfaces.
2. Right click the LAN interface to be configured and click
[property]. A configuration window will pop-up.
3. Click OK after inputting the proper IP address and netmask.
WinXPE users should follow these steps:
1. Go to [Start] [Network Connections].
2. Right-click Network Connections, click Properties, select
Internet Protocol (TCP/IP), and then click Properties.
3. Click OK after inputting the proper IP address and netmask.
NOTE: Refer to the User’s Manual for other configuration
information.
