V2101 Series Linux Introduction
1-2
Overview
V2101 embedded computers are based on the Intel Atom Menlow XL x86 processor and feature two serial ports,
dual Gigabit LAN ports, four USB 2.0 hosts, and an SD socket. The V2100 series offers both VGA and LVDS
outputs, making it exceptionally well suited for industrial applications such as SCADA and factory automation.
The V2101’s two serial ports make it ideal for connecting a wide range of serial devices, and the dual
10/100/1000 Mbps Ethernet ports offer a reliable solution for network redundancy, which taken together
promise continuous data communication and management operations. For added convenience, the V2101 has
three DIs and three DOs for connecting digital input/output devices. In addition, the SD and USB ports provide
V2101 computers with data buffering and storage expansion, which provide the necessary reliability for
industrial applications.
Pre-installed with Linux, the V2101 Series provides programmers with a friendly environment for developing
sophisticated, bug-free application software at a lower cost.
All V2101 models support a wide operating temperature range of -40 to 85°C for use in harsh industrial
environments.
Software Specifications
The Linux operating system pre-installed on the V2101 embedded computer is the Debian Lenny 5.0
distribution. The Debian project is a worldwide group of volunteers who endeavor to produce an operating
system distribution that composed entirely of free software. The Debian GNU/Linux follows the standard Linux
architecture, making it easy to use programs that meet the POSIX standard. Program porting can be done with
the GNU Tool Chain provided by Moxa. In addition to Standard POSIX APIs, device drivers for Moxa UART and

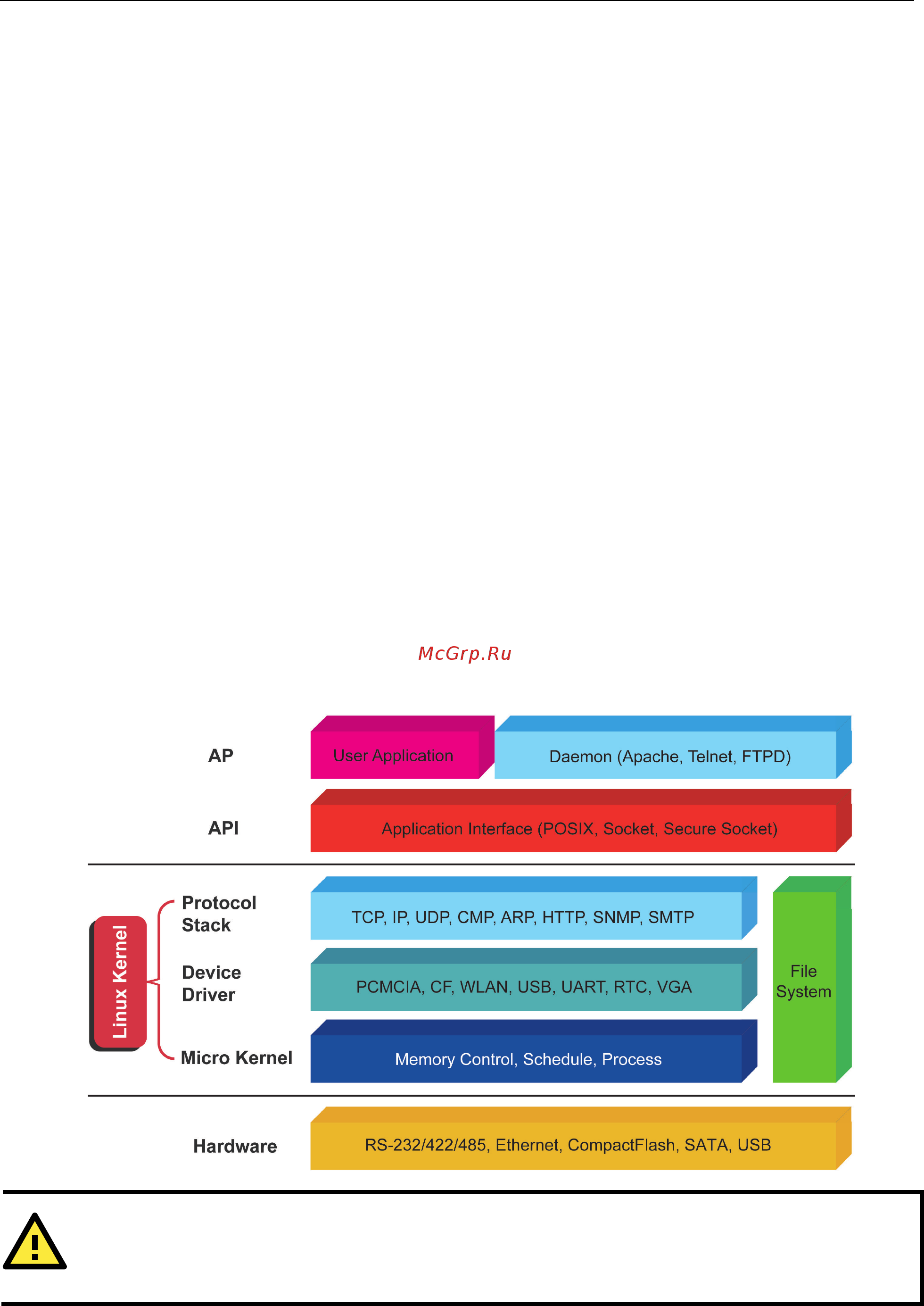

other special peripherals are also included. An example software architecture is shown below:
ATTENTION
Refer to
http://www.debian.org/ and http://www.gnu.org/ for information and documentation of the
Debian
GNU/Linux and free software concept.
