DA-IRIGB-4DIO-PCI104-EMC4 Module Driver and Utility Installation
3-12
Installing the IRIG-B Utility in Windows 7
You can use the IRIG-B utility to view the status information and configure the signal type for the
DA-IRIGB-4DIO-PCI104 module.
NOTE Before you install the utility in 64-bit Windows 7, make sure that Microsoft Visual C++ 2010 SP1
Redistributable Package and Microsoft Visual C++ 2010 SP1 Redistributable Package (x64) are already
installed.

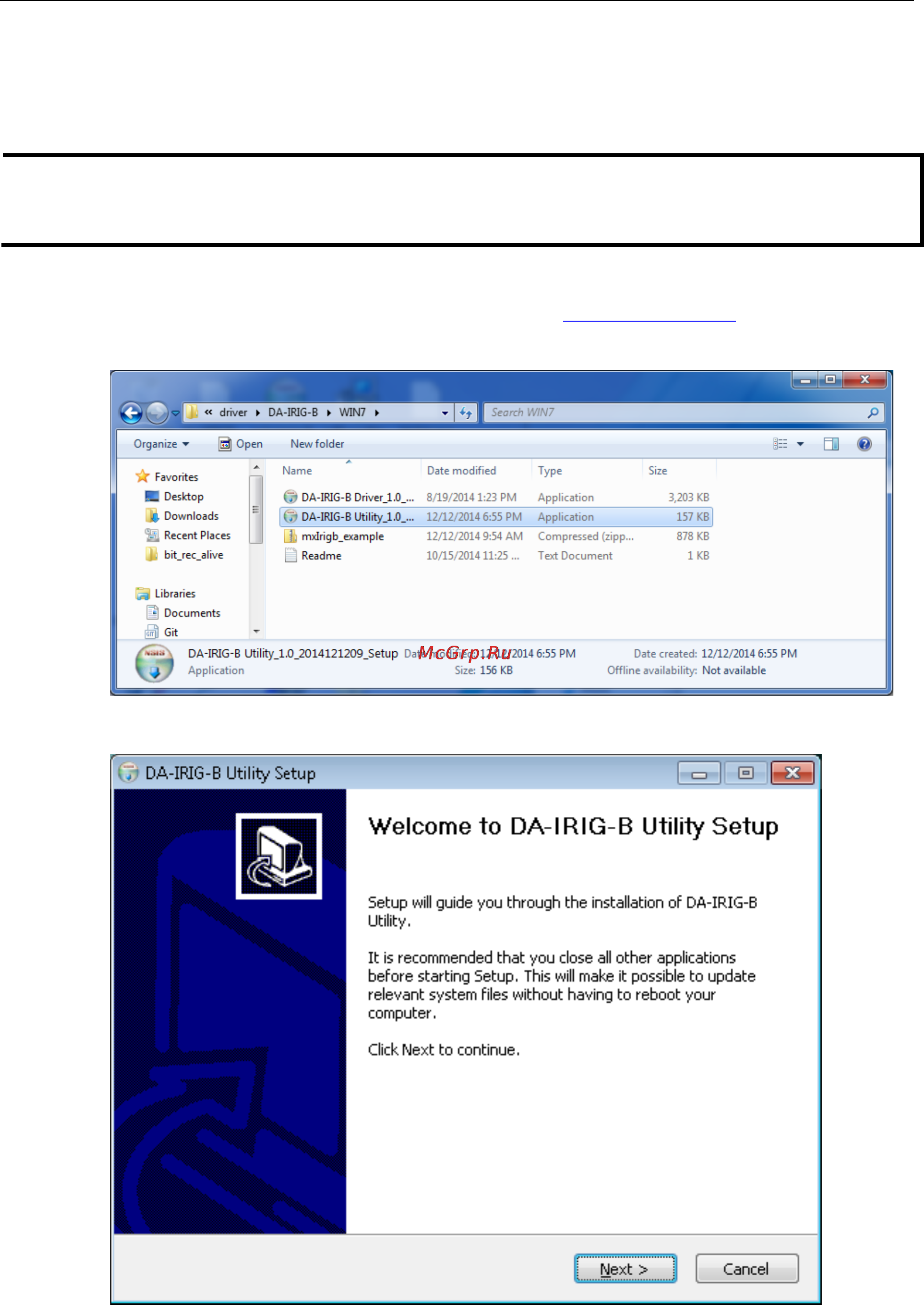

1. Log into the embedded computer as an administrator.
2. Obtain the utility installation file from the Moxa web site at http://www.moxa.com
.
3. On the embedded computer, double-click the IRIG-B utility installation file.
4. When the welcome screen appears, click Next.
