DA-681 Series Embedded Computer Hardware Installation
2-15

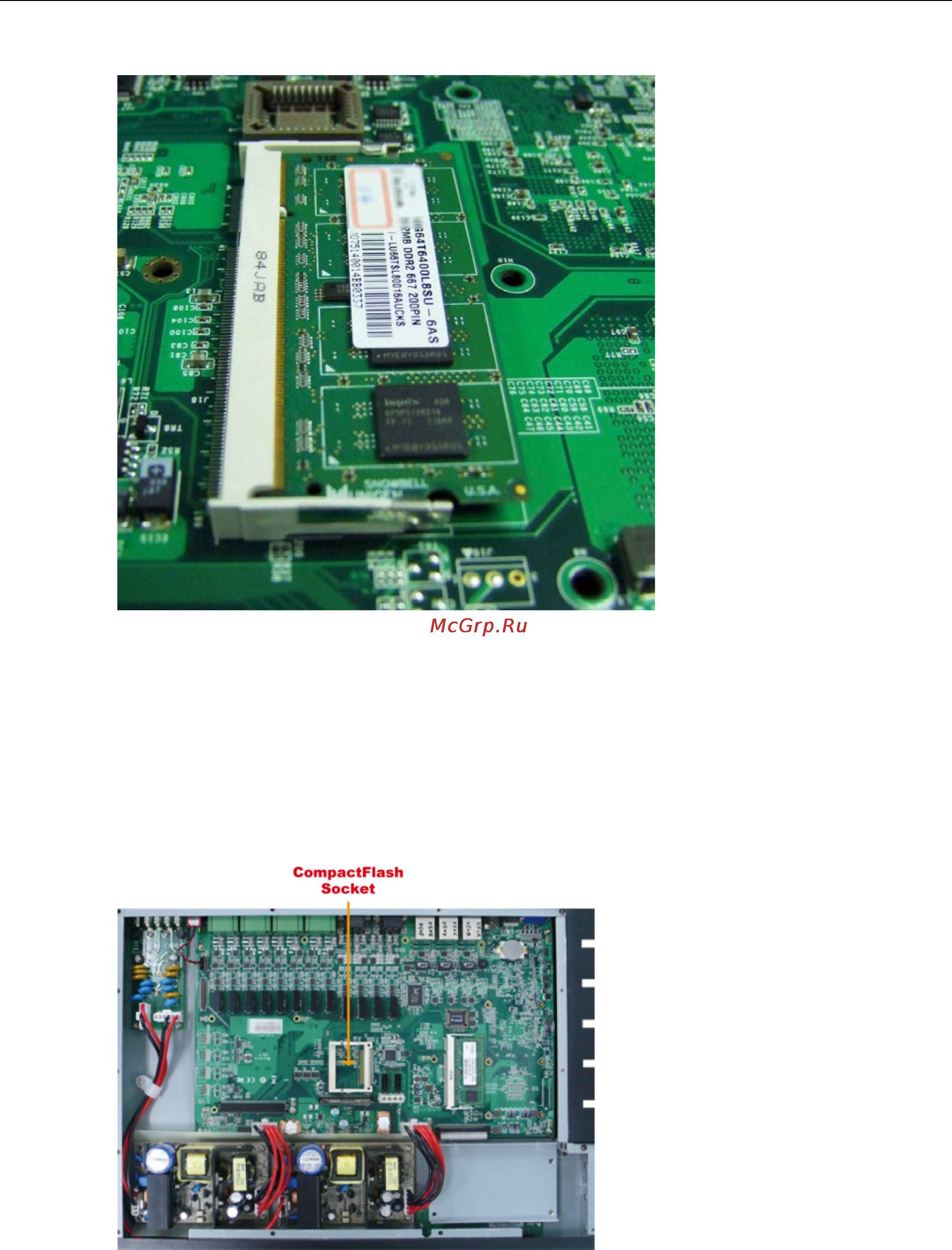

Push the memory all the way down to complete.
Installing a CompactFlash Card
The DA-681 embedded computer comes with a CompactFlash socket. To insert a CompactFlash card, follow
these instructions.
1. Disconnect the DA-681 from its power source.
2. The DA-681’s CompactFlash socket is located inside the DA-681. Use a screwdriver to remove all the screws
on the top cover of the DA-681.
