Moxa DA-683-DPP-T-W7E [11/35] Committing data and or disabling ewf
![Moxa DA-683-DPP-T-W7E [11/35] Committing data and or disabling ewf](/views2/1199564/page11/bgb.png)
4. Reboot the system.

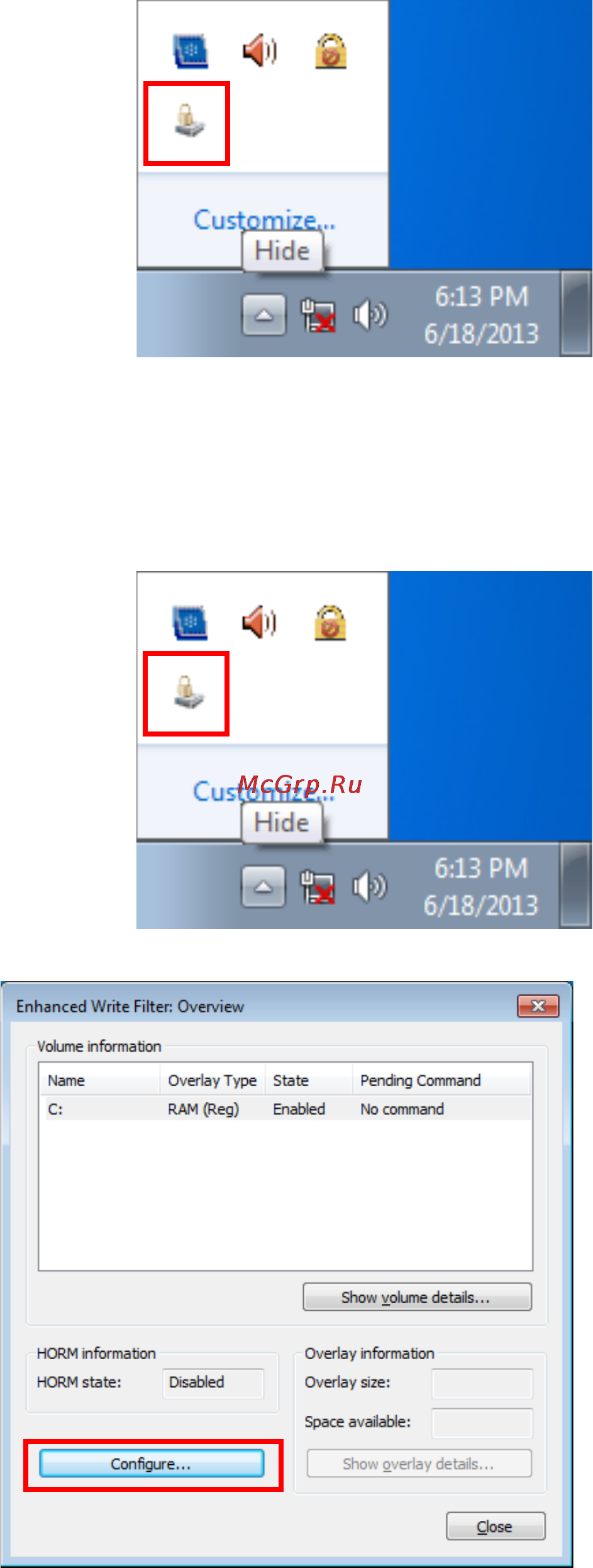

5. After logging in to the desktop environment,
open the system tray (located in the lower
right corner of the desktop) and check to
verify that the padlock icon now shows the
drive volume is locked down with EWF.
Committing Data and/or Disabling EWF
When EWF is enabled on a drive users will need to go through a special process to write any data to the hard
drive. Writing data to the drive in this situation is called a Commit, and users must be given administrator
privileges to be able to do so.
1. Open the EWF control dialog by
right-clicking on the padlocked drive in the
system tray (located in the lower right
corner of the desktop).
2. Once the EWF control dialog is open, select
the drive you wish to operate and click on
the Configure button in the lower left
corner. This will open the EWF
Configuration page.
