UC-7101

Hardware Speciﬁcations

Computer

CPU: MOXA ART ARM9 32-bit RISC CPU, 192 MHz

DRAM:

UC-7101/7110/7112: 16 MB

UC-7112 Plus: 32 MB

Flash:

UC-7101/7110/7112: 8 MB

UC-7112 Plus: 16 MB

OS (pre-installed): μClinux or Linux

Storage

Storage Expansion: SD slot (UC-7101, UC-7112, and UC-7112 Plus

only)

Ethernet Interface

LAN: Auto-sensing 10/100 Mbps (RJ45)

• UC-7101: 1 port

• UC-7110/7112/7112 Plus: 2 ports

Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface

Serial Standards: RS-232/422/485 software-selectable (DB9 male)

• UC-7101: 1 port

• UC-7110/7112: 2 ports

ESD Protection: 4 kV ESD for all signals

Console Port: RS-232 (TxD, RxD, GND)

• UC-7101: 4-pin pin header output

• UC-7110/7112: 3-wire pin-header

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction

control) for RS-485

Baudrate: 50 bps to 921.6 kbps (supports nonstandard baudrates; see

user’s manual for details)

Serial Signals

RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

RS-422: TxD+, TxD-, RxD+, RxD-, GND

RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND

RS-485-2w: Data+, Data-, GND

LEDs

System: Ready

LAN: LED located on the RJ45 connector

• UC-7101: 10M/Link x 1, 100M/Link x 1

• UC-7110/7112: 10M/Link x 2, 100M/Link x 2

Serial:

• UC-7101: TxD x 1, RxD x 1

• UC-7110/7112: TxD x 2, RxD x 2

Physical Characteristics

Housing: Aluminum (1 mm)

Weight:

• UC-7101: 130 g (0.29 lb)

• UC-7110/7112: 190 g (0.42 lb)

Dimensions:

• UC-7101: 67 x 22 x 100.4 mm (2.64 x 0.87 x 3.95 in)

• UC-7110/7112: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

Mounting: DIN rail, wall

Environmental Limits

Operating Temperature:

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature:

Standard Models: -20 to 80°C (-4 to 176°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Anti-Vibration: 1 Grms @ IEC-68-2-6, sine wave (resonance search),

5-500 Hz, 1 Oct/min, 1 cycle, 13 min 17 sec per axis (UC-7101/7110

only)

Power Requirements

Input Voltage: 12 to 48 VDC

Input Current:

• 170 mA @ 24 VDC

• 340 mA @ 12 VDC

Power Consumption: 4.5 W

Standards and Certiﬁcations

Safety:

• UC-7101: UL 60950, CSA-C22.2 No. 60950-1, EN 60950-1

• UC-7110/7112: UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1

EMC: EN 55022 Class A, EN 61000-3-2 Class A, EN 61000-3-3, EN

55024, FCC Part 15 Subpart B Class A, DNV

Green Product: RoHS, CRoHS, WEEE

Reliability

Alert Tools: Built-in buzzer and RTC (real-time clock)

Automatic Reboot Trigger: Built-in WDT (watchdog timer)

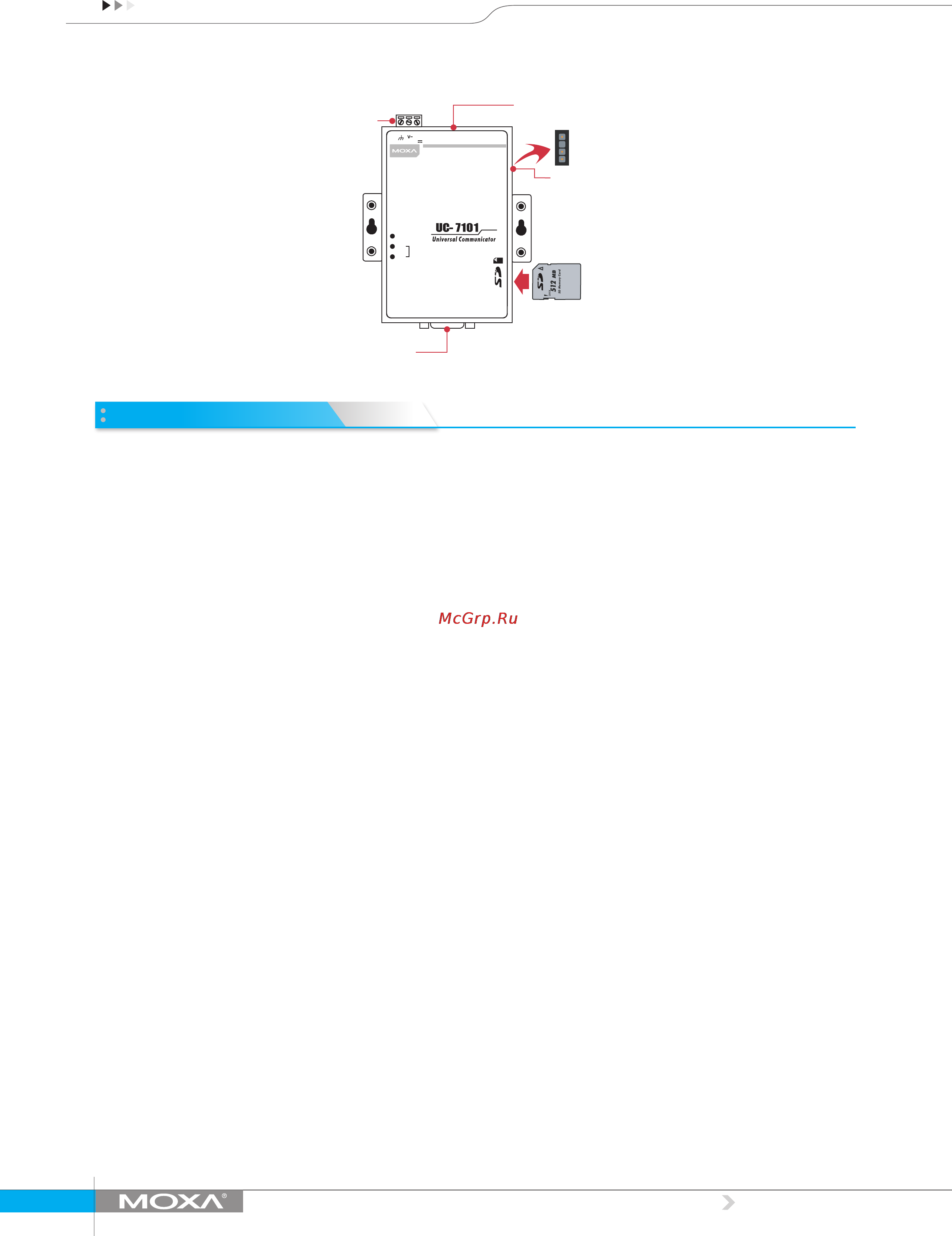

Ready

V+ RESET

12-48V

LAN

RS-232/422/485

12 to 48 VDC

Ethernet x 1

(10/100BaseTx)

RS-232

Console Terminal

Internal SD Slot for

Storage Expansion

(remove cover to access)

Serial Port

(RS-232/422/485)
