UC-7101-LX
Quick Installation Guide
Second Edition, June 2008
1. Overview
The UC-7101 Series of mini size RISC-based ready-to-run embedded
computers feature one 10/100 Mbps Ethernet port and one
RS-232/422/485 serial port in a built-in μClinux ARM9 box. In addition,
the UC-7101 provides an internal SD socket for storage expansion, offers
high performance communication and unlimited storage in a super
compact, palm-size box. The UC-7101 is the right high-performance
solution for embedded applications that use a lot of memory, but that are
housed in a small physical space.
2. Package Checklist
Before installing the UC-7101, verify that the package contains the
following items:
y 1 UC-7101
y Document and Software CD
y UC-7101Quick Installation Guide
y Cross-over Ethernet cable: RJ45 to RJ45, 100 cm
y Console port cable: CBL-4PINDB9F-100
4-pin header to DB9 (female) cable, 100 cm
y Universal Power Adaptor
y Product Warranty Statement
Optional Accessories
y DK-35A DIN-Rail Mounting Kit (35 mm)
Note: Please notify your sales representative if any of the above items
are missing or damaged.
3. UC-7101 Panel Layout
The UC-7101 comes with one software selectable RS-232/422/485 serial
port, one RS-232 console port, one 10/100 Mbps LAN port, and one
internal SD slot. The following figures show the panel layouts of the
UC-7101.

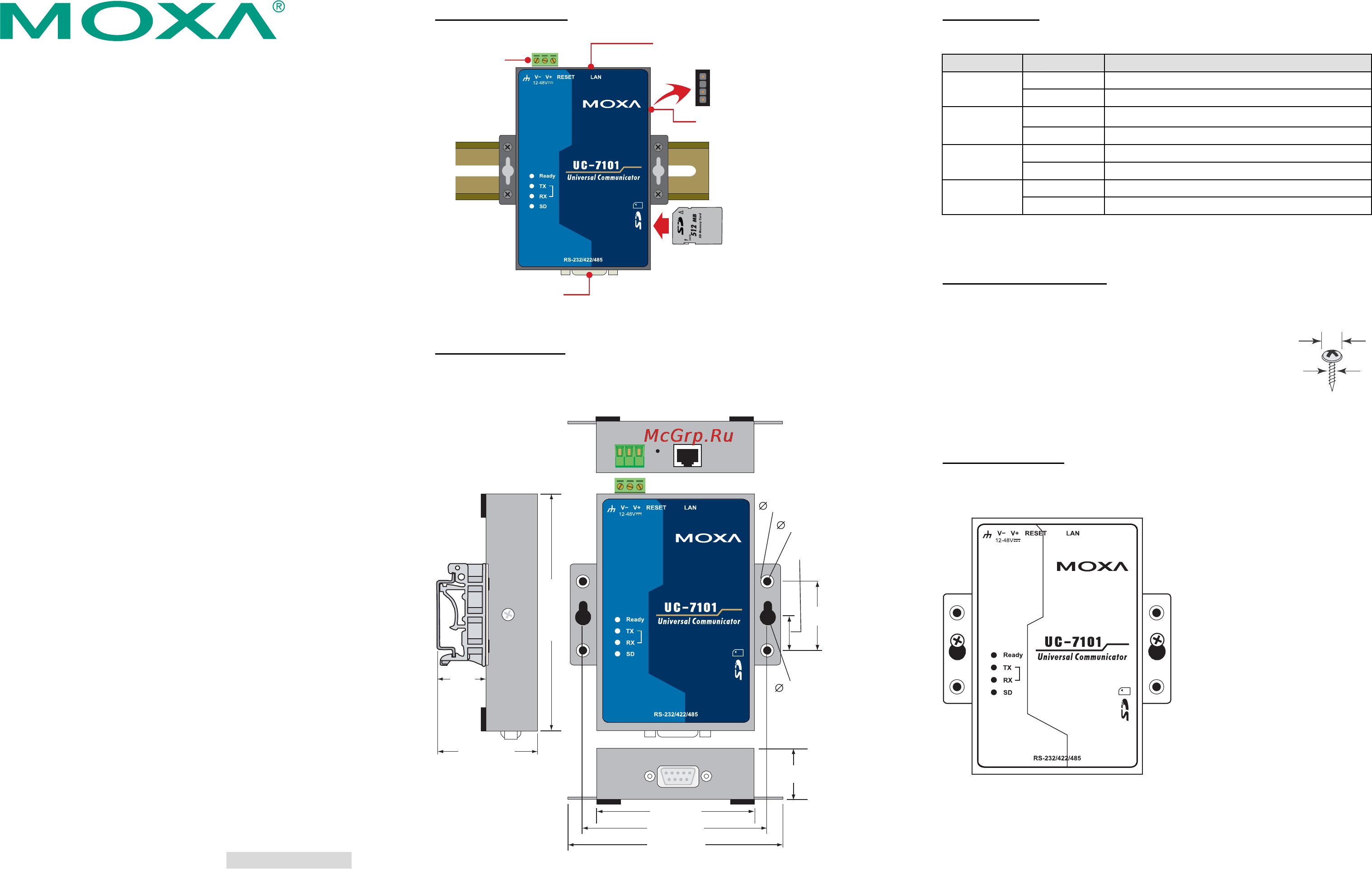

UC-7101 Appearance
Ethernet
(10/100BaseTx)
RS-232
Console Terminal
Internal SD Slot for
Storage Expansion
(remove cover to access)
12 to48 VDC
Serial Port
(RS-232/422/485)
UC-7101 Dimensions
The dimensions of the three UC-7101 models are shown in the
following figure.
6 (0.24)
12.5 (0.49)
25 (0.98)
4 (0.16)
7 (0.28)
22 (0.87)
67 (2.64)
43.3 (1.67)
21.3
(0.8)
)59.3( 4.001
78 (3.07)
90 (3.54)
unit = mm (inch)
LED Indicators
The following LED indicators are located on the UC-7101’s top panel.
LED Name LED Color LED Function
Green Power is on and functioning normally
Ready
Off Power is off or power error exists
Green
SD card is detected
SD
Off No SD card is detected
Green Serial port is transmitting data
TxD
Off Serial port is not transmitting data
Yellow Serial port is receiving data
RxD
Off Serial port is not receiving data
4. Installing the UC-7101
Wall or Cabinet Mounting
The UC-7101 has built-in “ears” for attaching the
embedded computer to a wall or the inside of a cabinet.
We suggest using two screws per ear to attach the
UC-7101 to a wall or cabinet. The heads of the screws
should be less than 6.0 mm in diameter, and the shafts
should be less than 3.5 mm in diameter, as shown in the
figure at the right.
mm 0.6
mm
5.
3
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the product
to a DIN-rail.
P/N: 1802071010011
