MK-261

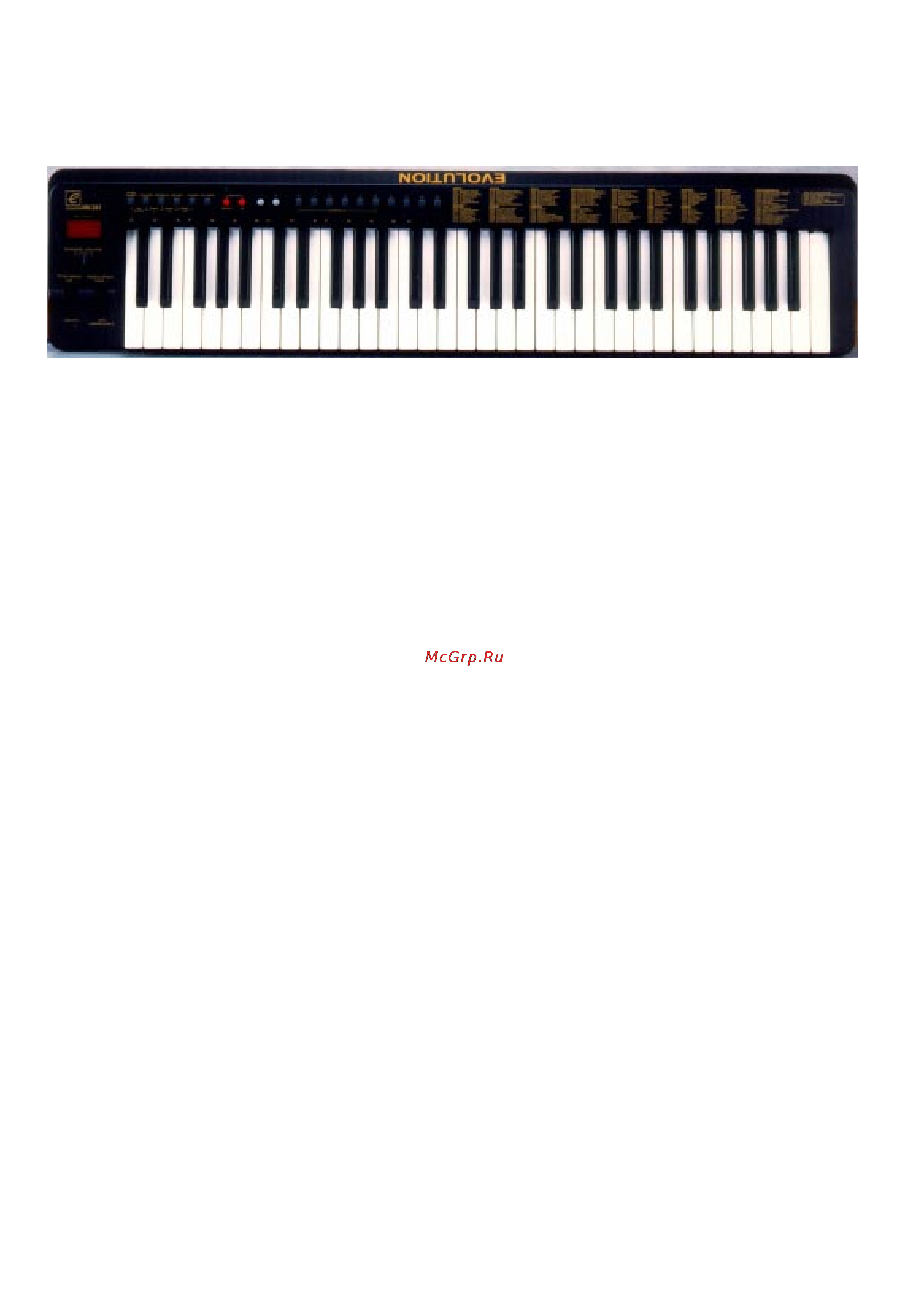

Evolution MK-261

www.evolution.co.uk

MIDI KEYBOARD MANUAL

1. POWER SUPPLY

1-1 Soundcard as power source

Using the supplied self powered connector cable, connect the 5 pin male plug to the MK-261 MIDI keyboard and the

15 pin male plug to the MIDI port on your PC soundcard.

IMPORTANT – DO NOT USE THIS CABLE TO POWER ANY OTHER EQUIPMENT

1-2 AC Power

You can also use an AC adapter (not included) with the following specification: 9-12V DC output, 250-300mA,

centre positive.

Note: Do not leave the adapter plugged in for long periods of time if the unit is not in use.
