— 1 — — 2 — — 3—
IA260
Quick Installation Guide
Second Edition, April 2009
1. Overview
The IA260 embedded computer comes with four RS-232/422/485 serial
ports, dual 10/100 Mbps Ethernet ports, 8 digital input and 8 digital
output channels, VGA output, a CompactFlash socket for mass storage
expansion, and USB ports for keyboard/mouse connection or mass
storage disk expansion. These features make the IA260 ideal for
embedded applications in harsh industrial environments, such as SCADA
systems and manufacturing automation.
2. Package Checklist
Before installing the IA260, verify that the package contains the
following items:
y 1 IA260 Embedded Computer
y Wall-Mounting Kit
y DIN-Rail Mounting Kit (attached to the product’s casing)
y Quick Installation Guide
y Document and Software CD
y Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm
y CBL-4PINDB9F-100: 4-pin header to DB9 female console port cable,
100 cm
y Universal Power Adaptor
y Product Warranty Statement
NOTE: Please notify your sales representative if any of the above items
are missing or damaged.

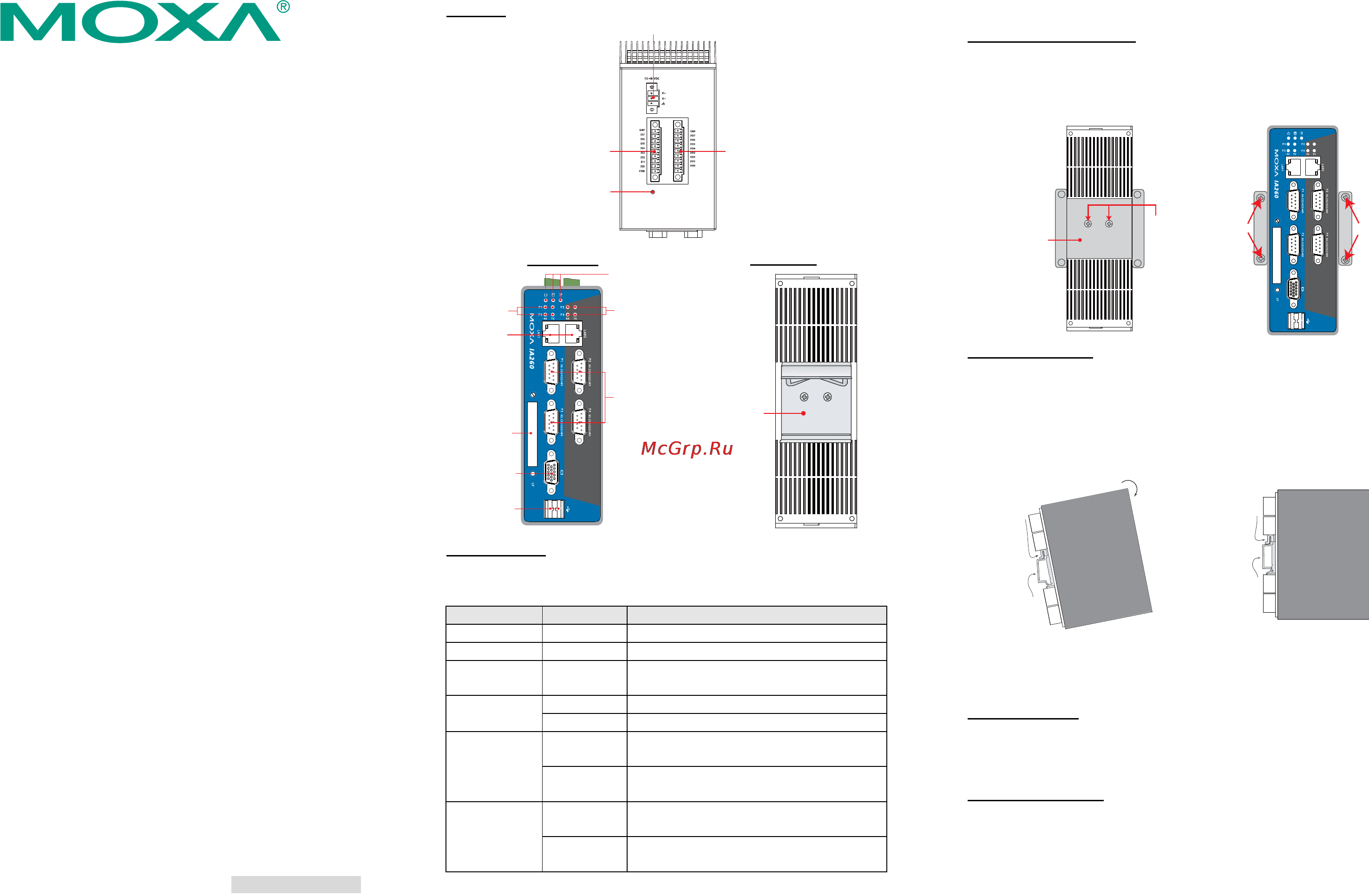

3. IA260 Panel Layout
The following figures show the panel layouts of the IA260.
Top View
DI x 8
DO x 8
Power Input (12 to 48 VDC)
Reset
Front View
Rear View
LED Indicators
10/100 Mbps
Ethernet x 2
RT
4
CompactFlash
Socket
Power, Ready, Storage
Serial, Tx/Rx
LED Indicators
VGA Output
RS-232/422/485
Serial Port x 4
USB 2.0 Host x 2
Serial, Tx/Rx
LED Indicators
DIN-rail Kit
LED Indicators
The IA260 has 15 LED indicators on the front panel. Refer to the
following table for information about each LED.
LED Name LED Color LED Function
Power Green Power is on
Ready Green OS is ready and functioning normally
Storage Green
Data is being written to or read from the
storage unit.
Orange 10 Mbps Ethernet connection
LAN 1/2
Green 100 Mbps Ethernet connection
Orange
Serial port is transmitting TX data to the
serial device.
P1-P4 (Tx)
Off Serial port is not transmitting TX data to
the serial device.
Orange Serial port is receiving RX data from the
serial device.
P1-P4 (Rx)
Off Serial port is not receiving RX data from
the serial device.
4. Installing the IA260
Wall or Cabinet Mounting
The IA260 comes with one metal bracket for attaching it to a wall or the
inside of a cabinet. Using two screws for the bracket, first attach the
bracket to the rear of the IA260. Next, use four screws per side to attach
the IA260 to a wall or cabinet.
Wallmount Kit
Screws
RT
4
Screws
Screws
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate is already attached to the
product casing. When attaching the plate to the IA260, make sure that the
stiff metal spring is at the top.
STEP 1: Insert the top of the
DIN-Rail into the slot just below
the stiff metal spring.
STEP 2: The DIN-Rail attachment
unit will snap into place as shown
below.
metal
spring
DIN-Rail
metal
spring
DIN-Rail
To remove the IA260 from the DIN-Rail, simply reverse Steps 1 and 2
above.
5. Connector Description
Power Connector
Connect the 12 to 48 VDC LPS or Class 2 power line to the IA260’s
terminal block. If the power is properly supplied, the Power LED will
light up. The OS is ready when the Ready LED glows a solid green.
Grounding the IA260
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting the power.
P/N: 1802002600041
