IA260-261-262 EM-2260 LX User’s Manual Managing Communications

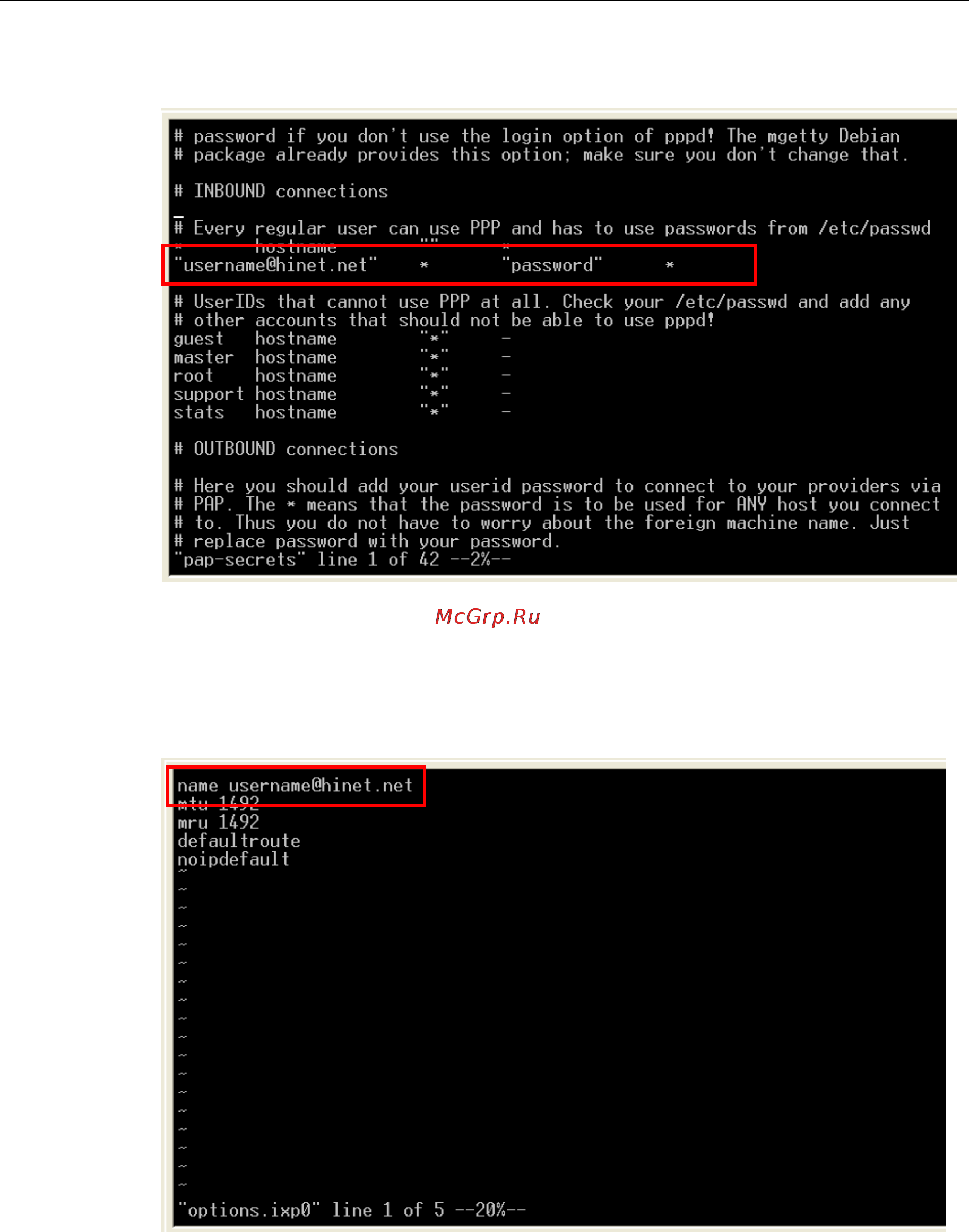

4. Edit the file /etc/ppp/pap-secrets and add the following:
“username@hinet.net” * “password” *
“username@hinet.net” is the username obtained from the ISP to log in to the ISP account.
“password” is the corresponding password for the account.
5. Add one of two files: /etc/ppp/options.eth0 or /etc/ppp/options.eth1. The choice depends on
which LAN is connected to the ADSL modem. If you use LAN1 to connect to the ADSL
modem, then add /etc/ppp/options.eth0. If you use LAN2 to connect to the ADSL modem,
then add /etc/ppp/options.eth1. The file context is shown below:
Type your username (the one you set in the /etc/ppp/pap-secrets and /etc/ppp/chap-secrets
files) after the “name” option. You may add other options as desired.
4-17
