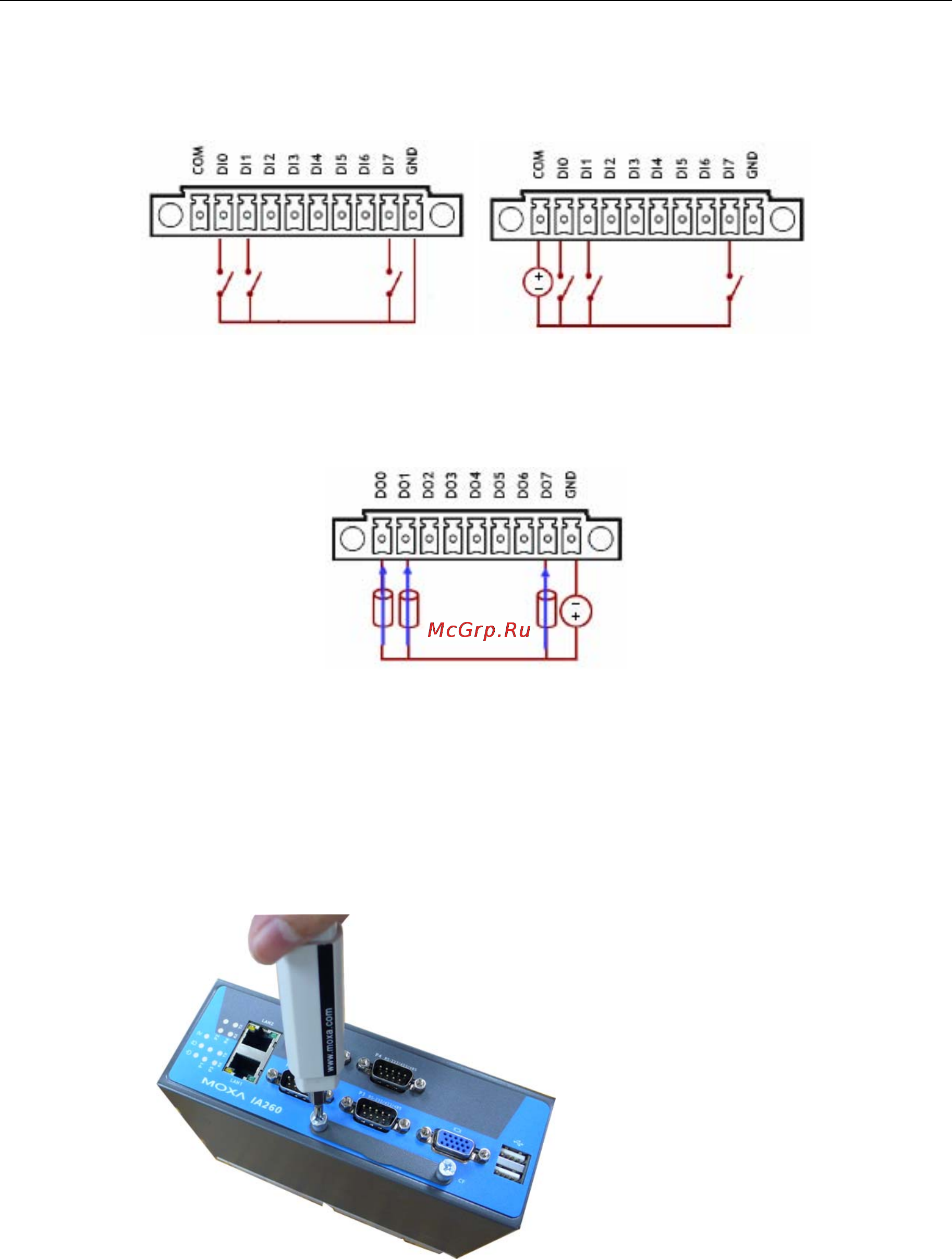

IA260 Hardware User’s Manual Hardware Connection Description
Digital Input Wiring
Dry Contact Wet Contact
Note: If you are using wet contacts, you must connect “COM” to power.
Digital Output Wiring
Insert CompactFlash Card
The IA260 has a built-in CompactFlash socket that allows users to add additional memory by
inserting a CompactFlash memory card, without any risk to the computer.
Follow the instructions below to insert a CompactFlash card:
1. Remove the power source.
2. Unscrew the CompactFlash socket protection cover which is located on the front of the unit.
3-6
