LED returns to normal. You can also use the “+” or “-” switch to change the
value.
Note: * If there is no key action for 5 seconds, the LED will stop flashing
and show the current PROGRAM CHANGE number.
* If the number you press is larger than 127, it will return to the
previous PROGRAM CHANGE number.
* When the display is showing the current PROGRAM number, you
can also use the +/- switch to change the program number without
pressing the ‘PROGRAM’ switch.
9. Sending Bank MSB (Most Significant Bit) and LSB (Least
Significant Bit) message
Allows you to send any value of MSB or LSB each from 0-127.
9-1 Press CHANNEL and PROGRAM switches simultaneously. The LED starts to
flash showing the current value of LSB. Press the numeric keys to change
the LSB value. If you enter 3 digits program number, the number will be sent
immediately. If you enter 1 or 2 digit(s) program number, the number will be
sent after the LED returns to normal. You can also use the “+” or “-” switch
to change the value. Bank Select LSB, Bank Select MSB and Program Num-
ber are sent together.
9-2 Press PROGRAM and MEMORY switches simultaneously. The LED starts to
flash showing the current value of MSB. Press the numeric keys to change
the MSB value. If you enter 3 digits program number, the number will be sent
immediately. If you enter 1 or 2 digit(s) program number, the number will be
sent after the LED returns to normal. You can also use the “+” or “-” switch
to change the value. When MSB is sent only the MSB value is changed, but,
as above, Bank Select LSB, Bank Select MSB and Program Number are sent
again.
Note: * If there is no key action for 5 seconds, LED will return to show
current PROGRAM CHANGE number.
* If the number you input is over 127, it will return to previous LSB
or MSB.
10. PROGRAM & BANK CHANGE MEMORY
You can assign a selected PROGRAM CHANGE as well as a BANK LSB and
a BANK MSB to one of six numeric keys (0-5). Simply pressing one of the
numeric keys will then send the desired PROGRAM and BANK CHANGE.
10-1 Select the design PROGRAM CHANGE, BANK LSB and MSB. Please refer
to relative chapter.
10-2 Press MEMORY switch, the LED will start to flash.
10-3 Press the numeric key (from 0-5) you wish to assign the setting to. Now, the
current PROGRAM Number and BANK CHANGE setting is memorized on the
selected numeric key.

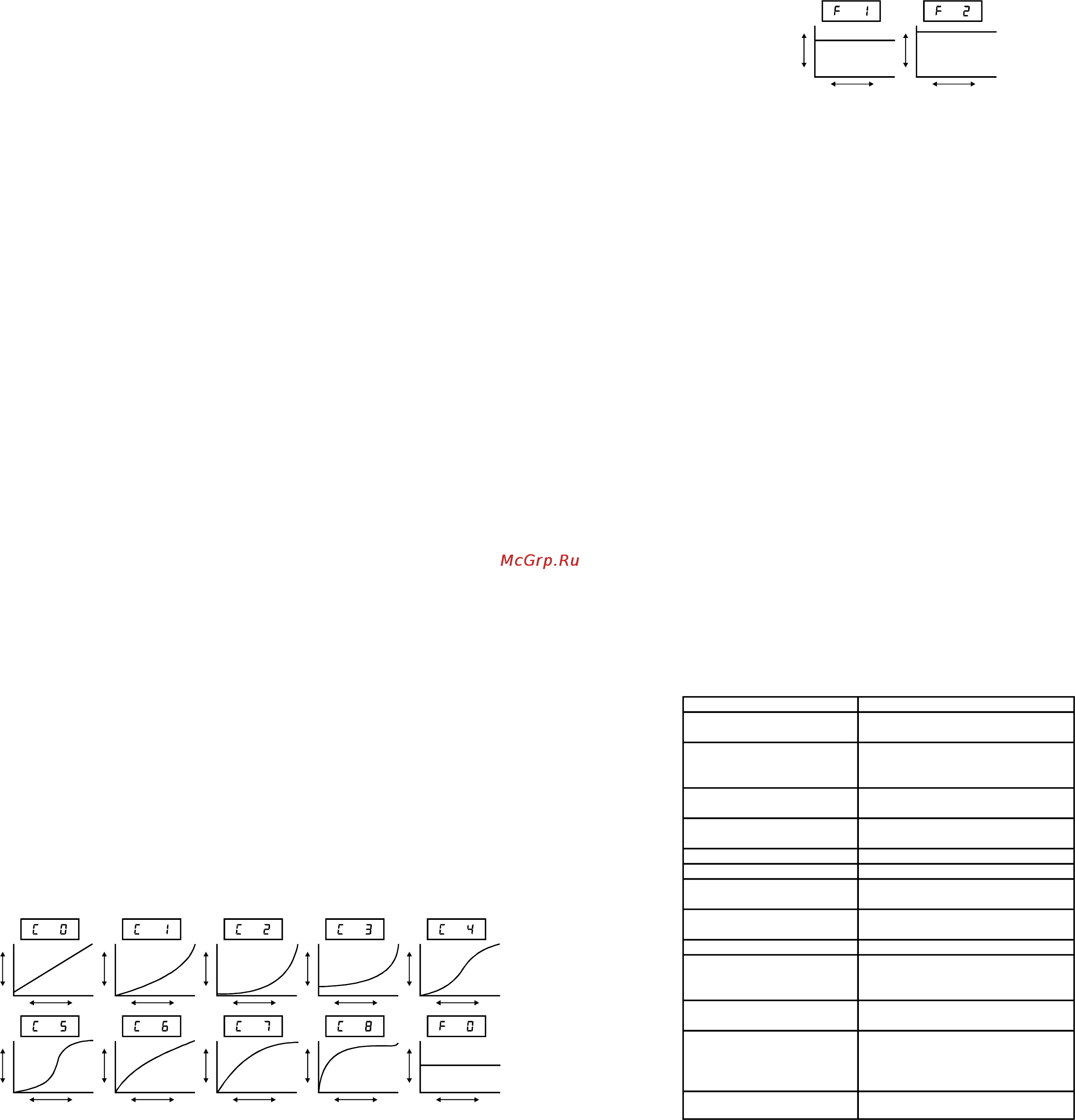

11. Selecting a VELOCITY CURVE
The VELOCITY CURVEs determine the relationship between how hard the
keys are struck and the corresponding velocity that the unit transmits.
This unit allows you to select from 12 VELOCITY CURVEs.
11-1 Simultaneously press WHEEL ASSIGN and CHANNEL switches, LED starts
to flash showing the current number of VELOCITY CURVE.
11-2 Press one of the numeric keys (0-9) to select a VELOCITY CURVE. The 10
key numbers correspond to the 10 VELOCITY CURVEs as follows:
Load
Load
Load
Load
Load
Load Load
Soft
Soft
Soft
Soft
Soft
Soft Soft
Soft
Soft
Soft
Soft
Soft
Soft Soft
Hard
Hard
Hard
Hard
Hard
Hard Hard
Load Load
Soft Soft
Soft SoftHard Hard
Load
Soft
Soft Hard
You can also use the “+” or “-” switch to change the number for all 12
VELOCITY CURVEs (including F1 and F2).
Load Load
Soft Soft
Soft SoftHard Hard
Note: If there is no key action after the LED starts to flash, the LED will
return to show the current PROGRAM CHANGE number.
12. RESET-ALL CONTROLLERS (Reset AC)
This function allows you send RESET-ALL CONTROLLERS message to con-
nected equipment.
12-1 Press MEMORY and X'POSER buttons simultaneously and hold for 2 sec-
onds.
13. GENERAL MIDI MODE RESET (GM reset)
Allows you to send GENERAL MIDI MODE RESET message.
13-1 Press GM RESET button and hold for 2 seconds.
14. SPECIFICATIONS
1. Keyboard : 25 standard keys (Velocity sensitive)
2. Control : Switches (WHEEL, MIDI CHANNEL, PROGRAM, MEMORY,
TRANSPOSER, OCTAVE, VEL CURVE, BANK LSB, BANK MSB,
RESET AC, GM RESET)
PITCH BEND WHEEL
MODULATION WHEEL
POWER SWITCH
Numerical Keys (0-9)
3. Display : 3 digit LED
4. Jack : DC IN (DC 9-12V), MIDI OUT, SUSTAIN
5. Dimension : 480 x 215 x 80mm (W) x (D) x (H)
6. Weight : 1.85 kg
Note : Specification are subject to change without prior notice.
APPENDIX
MIDI IMPLEMENTATION CHART
Basic : Default
: ChangedChannel
: Default
: MessagesMode
:Altered
Note
:TrueVoiceNumber
:NoteONVelocity
:NoteOFF
After : Key's
Pitch Bend
0-95Control
Change 102-121
Program
: True NumberChange
System Exclusive
Song Position
System
Common
: Song Select
Tune
:ClockSystem
Real Time : Commands
Aux : Local ON/OFF
:AllNotesOFFMessages
: Active Sense
Notes:
: Reset
X
O
O
O
0-127
*********************
X
X
X
X
X
X
X
X
O
X
Volume can be controlled by assigning
the Modulation Wheel.
1-16
1-16
------------------------
X
*********************
0-127
*********************
O
X
Function Transmitted
MK2501
