V2416A W7E Series Moxa SynMap Package
6-13

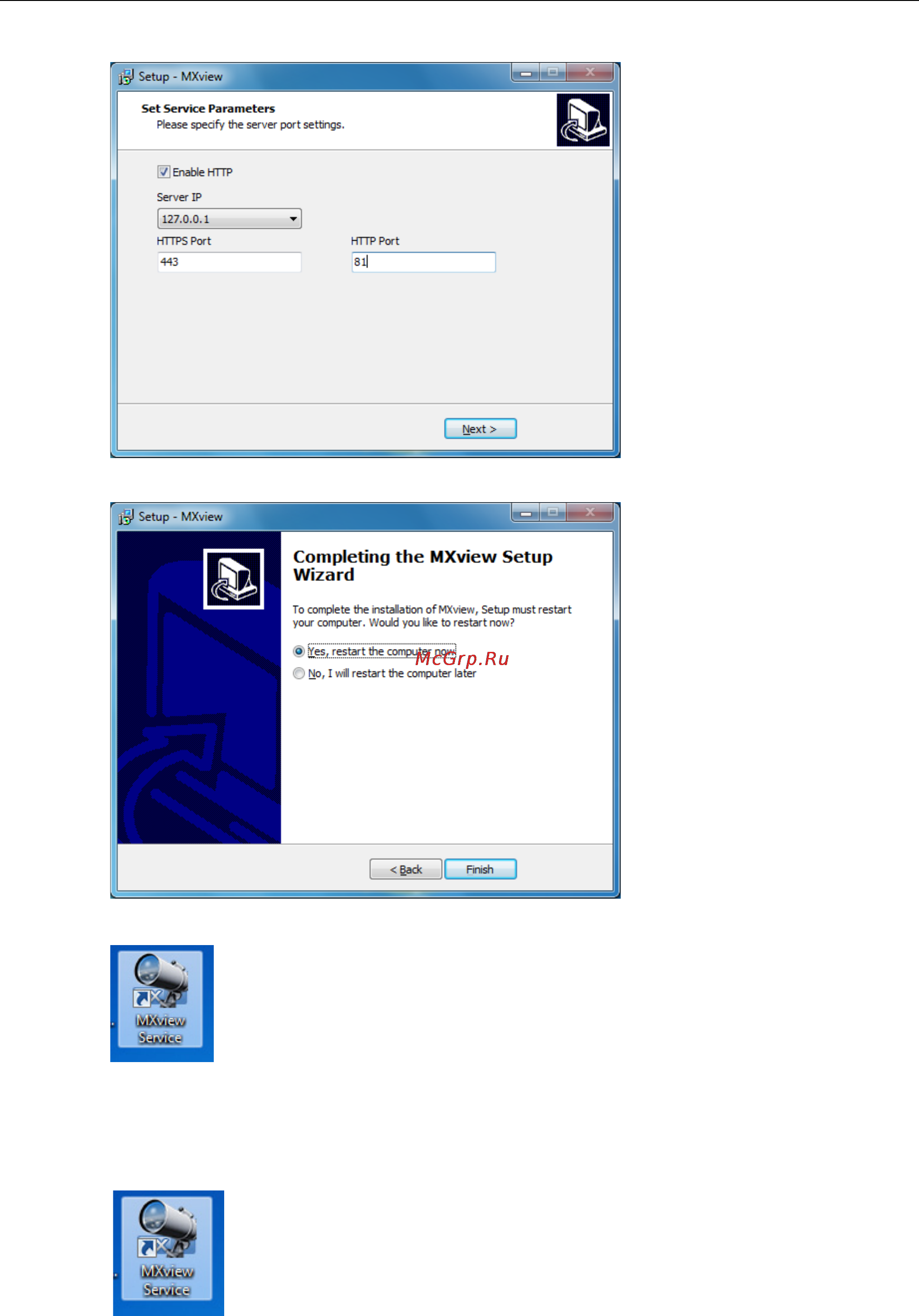

11. Set the HTTP port to 81 and click Next.
12. Select Yes, restart the computer now and click Finish to reboot the system
13. After the computer is restarted, the MXview Service shortcut appears on the computer desktop.
Configuring MXview
1. Double-click the MXview shortcut on the desktop.
