Escada ES-S105 [4/9] Assembling manual

Assembling manual

Note: Two people are recommended to assemble this unit.

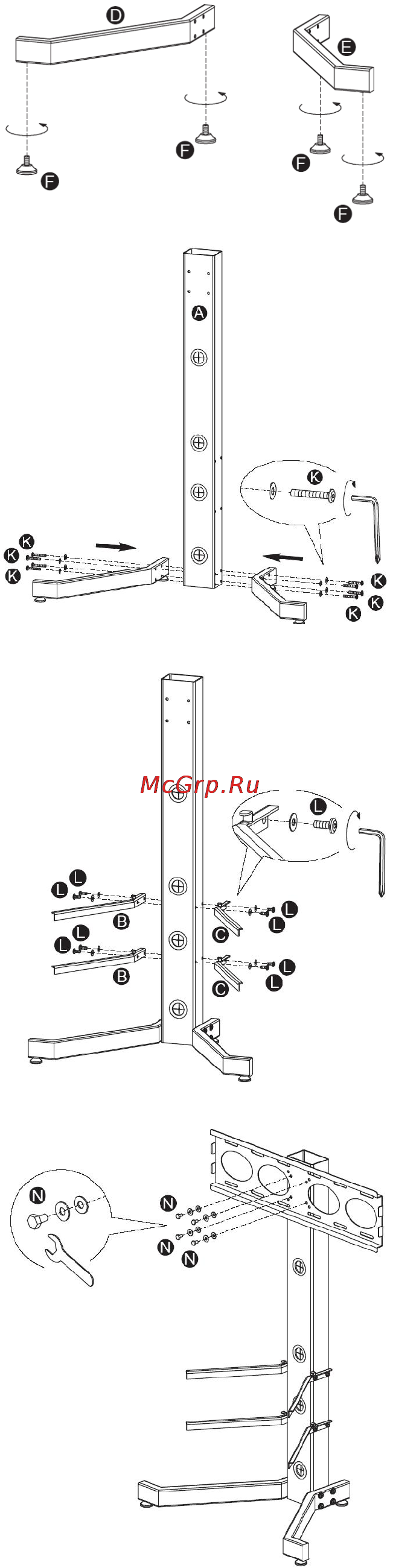

1. Screw in the feet (F) into the holes on the bottom side

of both left (E) and right (D) bases.

2. Align the holes on the both bases with the holes in the

lower part of the steel pillar (A) and fix the bases to the

pillar with long screws (K), using the allen key.

3. Align the holes on both right (B) and left (C) shelf

supports with the holes in the middle part of the steel

pillar and fix the shelf supports to the pillar with short

screws (L), using the allen key.

4. Align the holes on the steel plate (I) with the holes in

the upper part of the steel pillar and fix the plate to the

pillar with short screws (N), using the spanner.
