Escada ES-S109 [4/11] Assembling manual

Assembling manual

Notes: It is recommended to put on glove before assembling the unit, not to leave prints on

surfaces. Two people are recommended to assemble this unit.

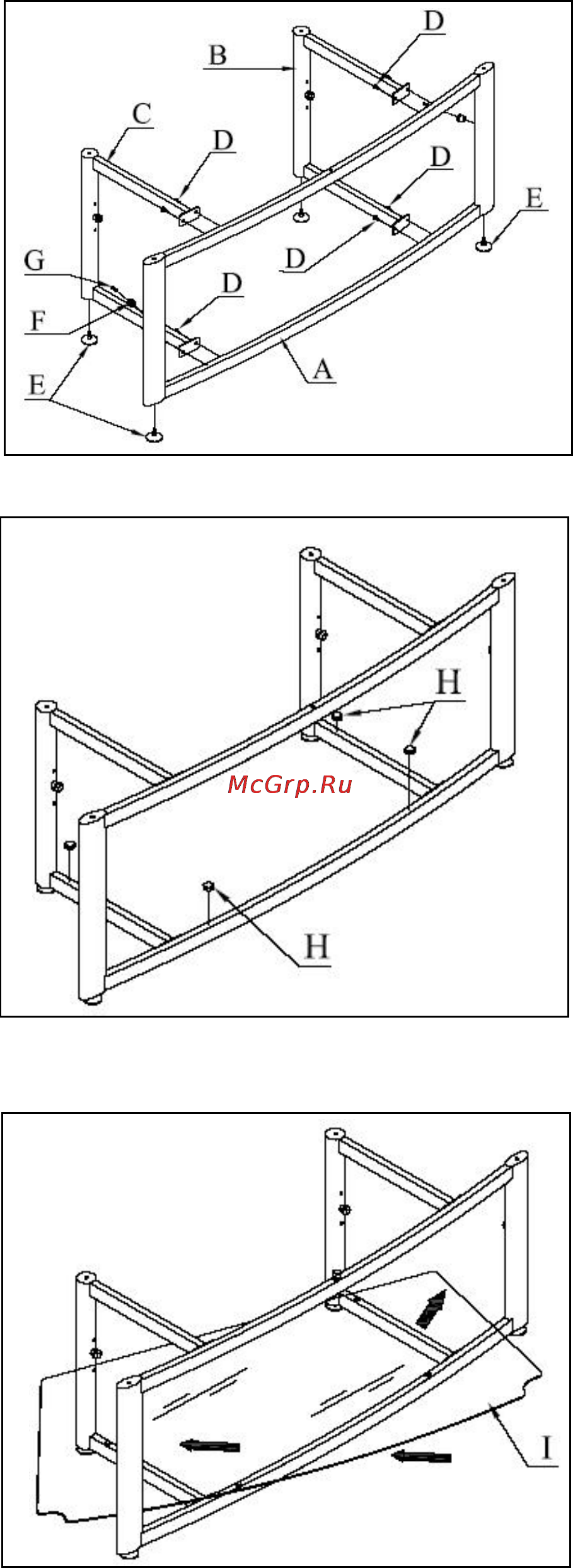

1. Insert four adjustable level feet (E) into the

bottom of each side frame (B and C) and of

the front frame (A). Tighten screws (D) into

holes of top and bottom bars of both side

frames. Fix side frames to the front frame.

Fix a bush (F) to the post of each side

frames with screws (G).

2. Insert bottom shelf supporters (H) into the

holes in the bottom bars of the front frame

and side frames.

3. Place bottom glass shelf (I) on the bottom

bars of the front frame and side frames.
