Escada ES-S110 [4/9] Assembling manual

Assembling manual

Notes: It is recommended to put on glove before assembling the unit, not to leave prints on

surfaces. Two people are recommended to assemble this unit.

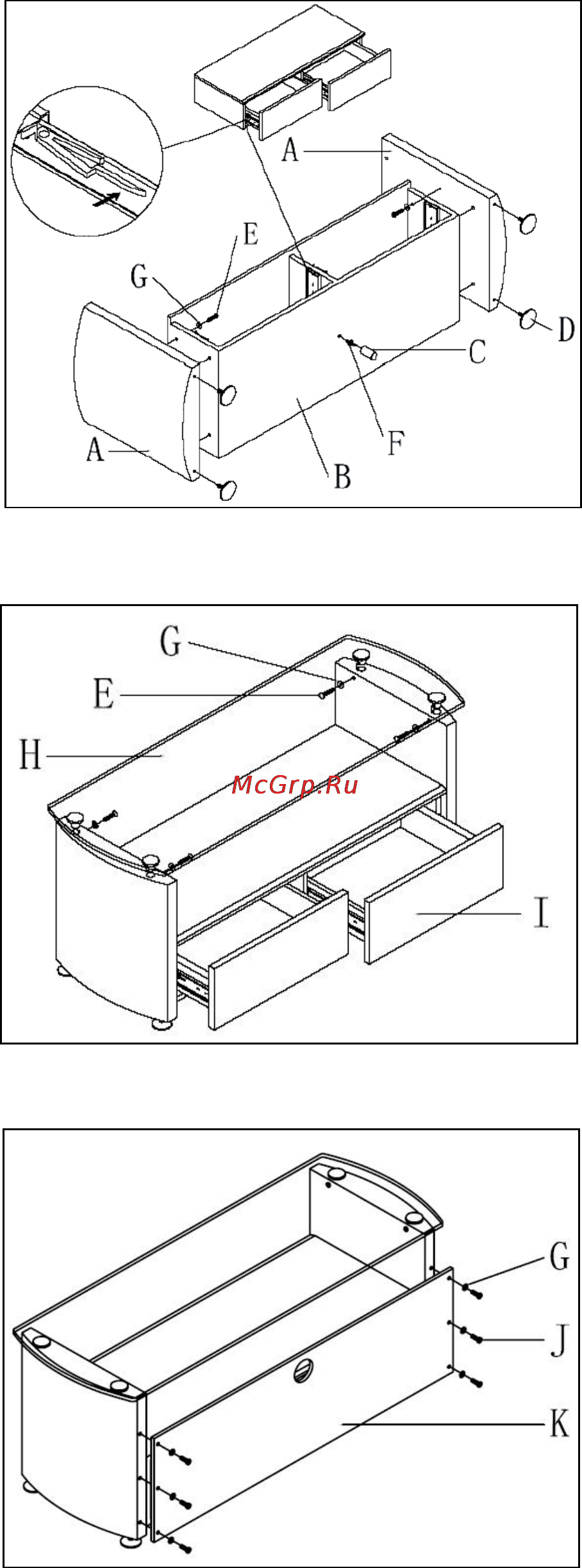

1. Screw the middle support (C) to the bottom

of the frame (B), using screws (F). Insert

adjustable level feet (D) into bottom holes of

both side panels (A). Fix both side panels to

the frame, using washers (G) and screws

(E). The screws should be screwed from the

inside of the frame.

2. Insert both drawers (I) into the front

departments of the frame. Insert the supports

of the top glass panel (H) into the holes on

the top of both side frames. Fix the top glass

panel with screws (E) using washers (G).

The screws should be screwed from the

inside of the construction.

Note: Drawers can be taken out after

pressing rail switch.

3. Align the rear holes of both side panels with

the holes of the rear panel (K). Screw the

rear panel to both side panels with screws (J)

using washers (G).
