Escada ES-S112 [4/9] Assembling manual

Assembling manual

Notes: It is recommended to put on glove before assembling the unit, not to leave prints on

surfaces. Two people are recommended to assemble this unit.

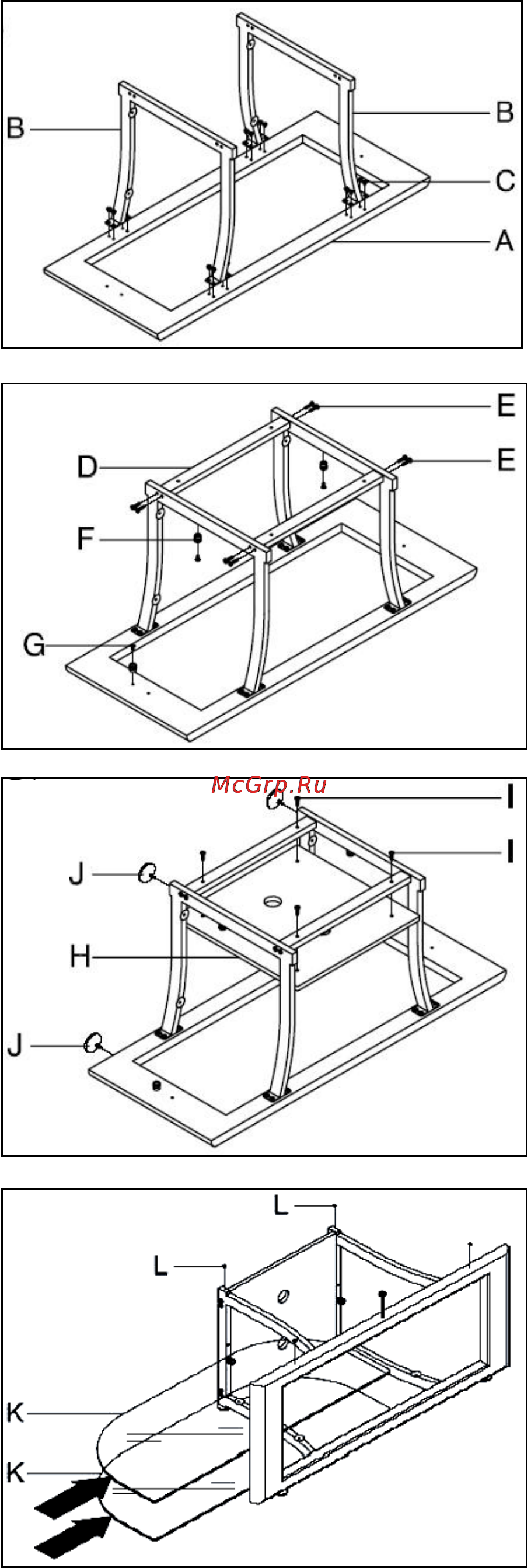

1. Fix both side frames (B) to the front frame

(A), using screws (C). The holes in the side

frame brackets should be aligned with holes

in the rear side of the front frame.

2. Place both rear bars (D) between the posts of

both side frames, then fix them with screws

(E), using side holes of the frames and the

bars. Fix bushes (F) to the middle holes in

the posts of both side frames and to the

holes of the front frame, using screws (G).

3. Insert adjustable level feet (J) to the bottom

of both side frames and the front frame. Fix

the back panel (H) to the top and bottom

rear bars using screws (I).

4. Place the bottom and middle glass shelves

(K) inside the construction, so that the

bottom shelf was situated on the lower bars

of both side frames and the middle shelf was

supported by the bushes. Fix glass stoppers

(L) on the top of the front frame and the side

frames.
