V2616A Linux System Recovery
7-3

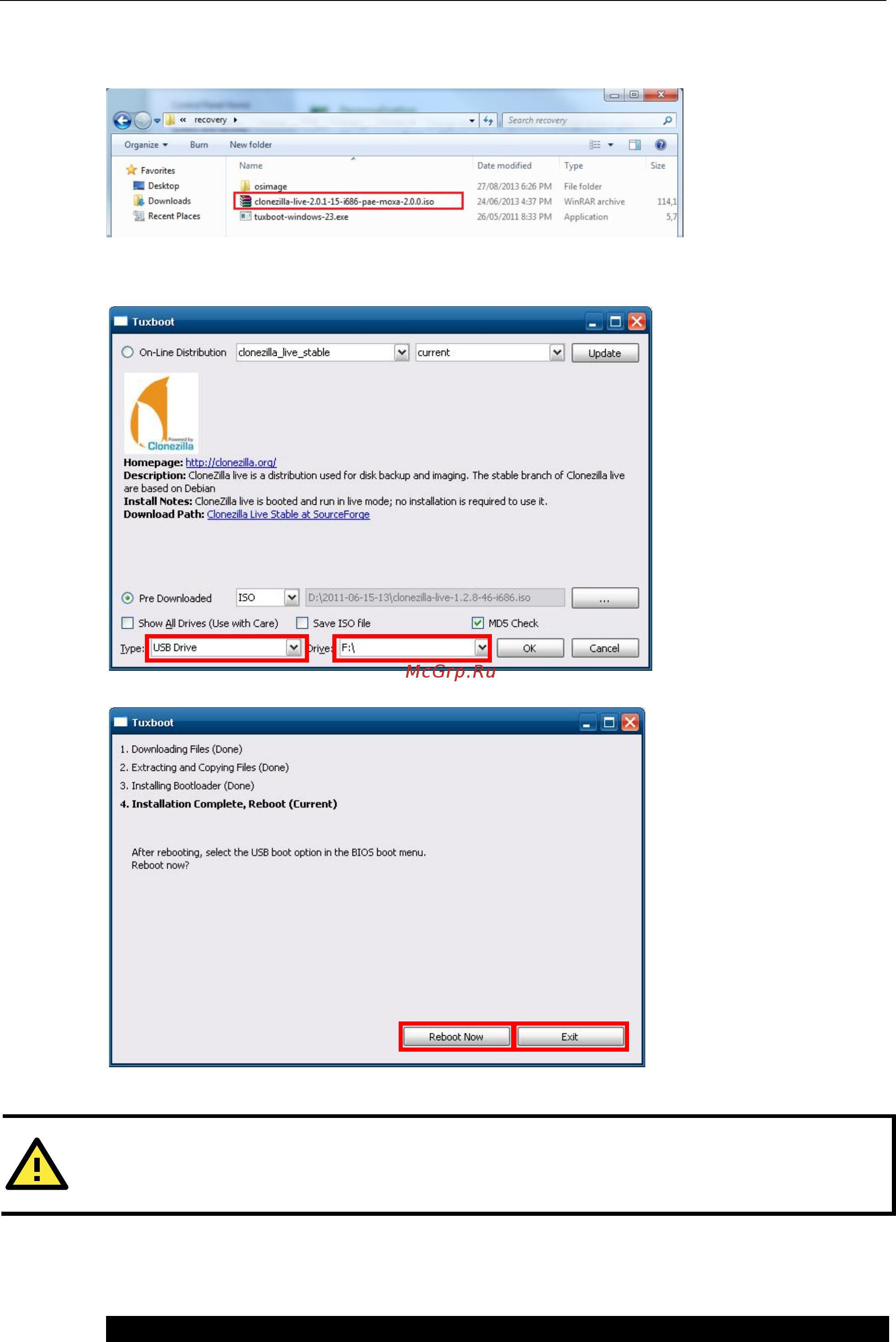

4. Navigate the file manager to \Recovery\V2616A-LX_Recovery\clonezilla directory on the software
DVD
and select the Clonezilla recovery environment’s ISO image.
5. Set the Device Type (lower left-hand corner) as USB Drive, then set the Drive dialog to the letter under
which the USB is currently mounted.
6. Click OK, and the Clonezilla recovery environment (plus bootloader) will be copied to your USB drive.
7. When finished, select Exit to leave.
ATTENTION
You must manually d
elete the EFI directory on the USB.
8. Next, copy the stock OS image (found on the software CD that shipped with your computer) over to the
USB drive; the image will be found in the recovery directory, /media/cd0/recovery/os_image, and
will be copied to the USB file tree at /media/usb0/home/partimag. Depending on how the USB and CD
have been automounted, you will use a command much like this:
moxa@Moxa:~# cp –a /media/cd0/recovery/os_image /media/usb0/home/partimag/
