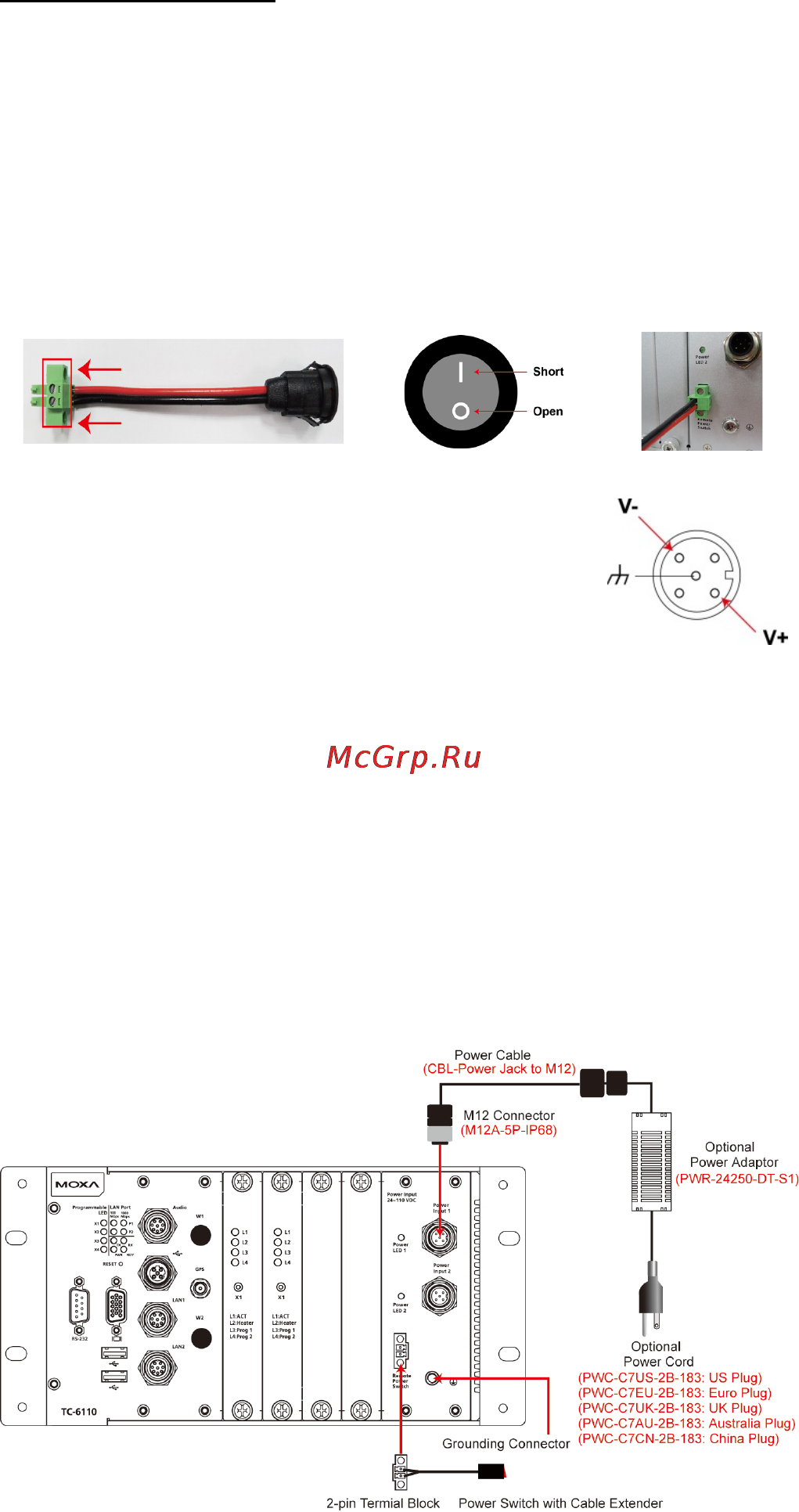

Powering the TC-6110

TC-6110 computers come with DC power inputs. When connecting the

TC-6110 to an office AC source (for testing), an adaptor must be used. To

connect the AC adaptor, follow these steps:

Step 1: Connect the ends of the extended power switch cable to the male

portion of the 2-pin Euroblock (provided).

Step 2: Plug the male Euroblock into the matching female terminal on the

front panel.

Step 3: Make sure the power switch is turned off (Open, in the diagram

below).

Step 4: Connect the earth/ground cable to the

Phillips

-head ground connector on the lower right

corner of the

front panel.

Step 5: Connect the power cable (CBL-Power Jack to M12) to the M12

(A-coded, 5-pin, male) connector as shown at right. Then connect the

power connector to power input 1 on the front panel.

Step 6: On the other side of the power cable, connect to the

PWR-24250-DT-S1 power adaptor (optional), and a PWC-series power

cord (optional).

Step 7: To check power redundancy, use the same method to connect

the power to the power input 2.

Step 8: Switch on the TC-6110 (Short state). If power supply is

connected properly, both power input and system power LEDs will be on

(green), as well as the yellow Ready LED.
