Each basic system model is shipped with following standard items:
• TC-6110 train computer
• Rackmount kit
• Power switch with cable extender
• Power cable
• Documentation CD or DVD
• Quick installation guide (printed)
• Warranty card
Hardware Installation

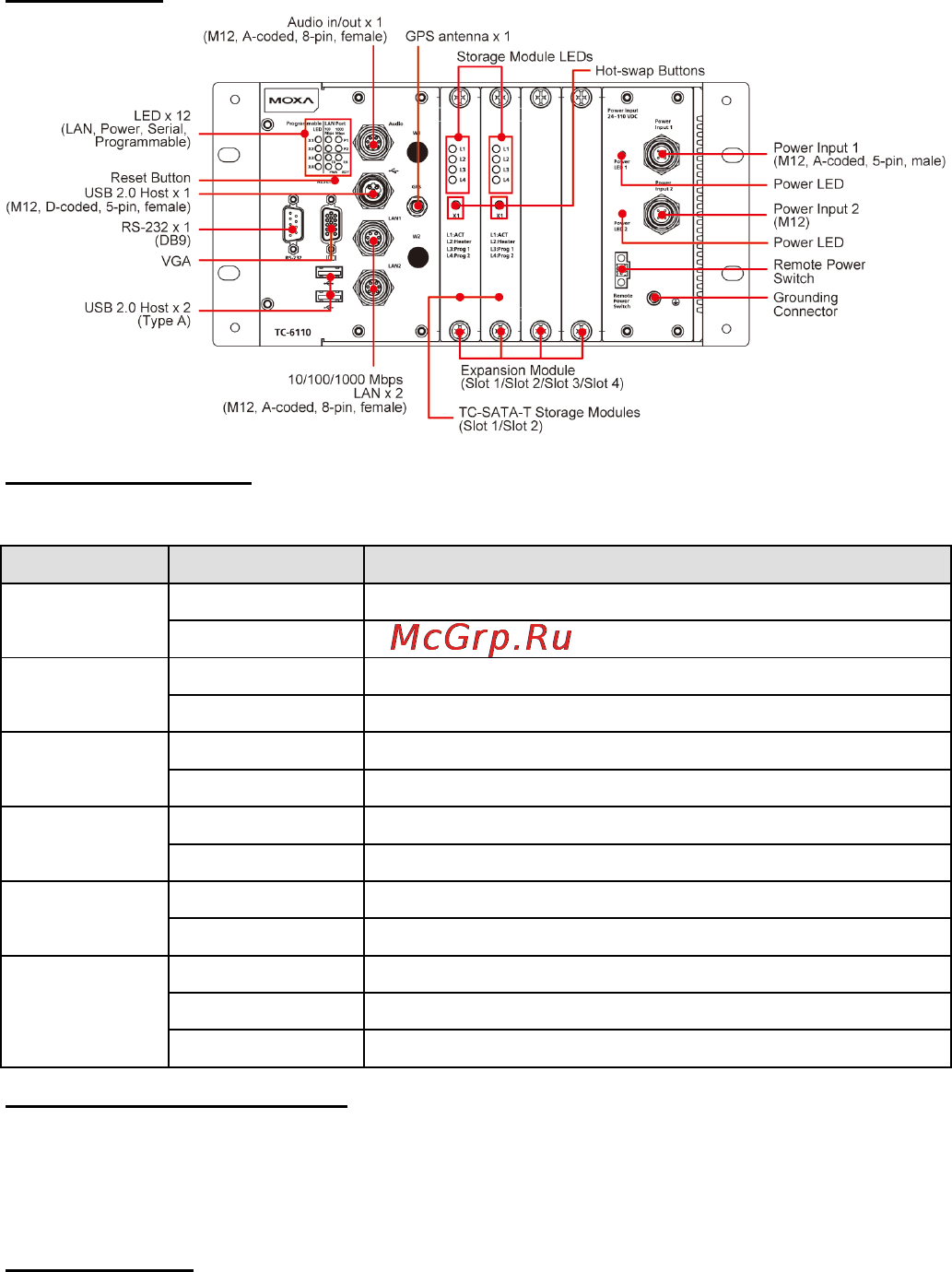

Front View
Front Panel LEDs
Information about each LED is given in the following table.
LED Name
LED Color
LED Function
Power
Green
Power is on and functioning normally
Off
Power is off or power system error
System
Ready
Yellow
Logged in to OS, functioning normally
Off
Login failure or OS not functioning normally
Tx (P1)
Green
Serial port P1 transmitting data
Off
Serial port P1 not transmitting data
Rx (P1)
Yellow
Serial port P1receving data
Off
Serial port P1 not receiving data
X1-X4
Green
Programmable by users
Off
Programmable by users
LAN (P1-P2)
Green
Working 100 Mbps Ethernet link
Yellow
Working 1000 Mbps Ethernet link
Off
Disconnected or short circuit
Connecting to a Display
The TC-6110 comes with a female D-Sub DE-15 VGA interface on the
front panel. To ensure that the monitor image remains stable, be sure to
tighten the connector’s thumbscrews after connecting the cable.
Reset Button
The reset button on the TC-6110’s front panel initiates a soft system
reboot. Once the system has completed the reboot the Ready LED will
maintain a steady glow.
