P/N: 1802024160011
V2416 Quick Installation Guide
Second Edition, April 2014
Overview
The V2416 Series embedded computers are based on the Intel
Atom N270 x86 processor and feature 4 RS-232/422/485 serial
ports, dual LAN ports, and 3 USB 2.0 hosts. In addition, the V2416
computers provide VGA and DVI-I outputs and are EN 50155
certified to confirm their robustness for railway and industrial
applications. 2 hot-swappable and removable storage trays are also
provided for convenient, fast and easy storage expansion. The
V2416 also features user-defined programmable LEDs and an
associated API for storage management, supporting storage
plug/unplug functionality, automatic storage removal, and storage
status display. An API Library is included for easy development and
storage capacity notification.
Package Checklist
Before installing, verify that the package contains the following
items:
• V2416 embedded computer.
• Wall mounting kit
• PS2 to KB/MS Y-type cable
• Documentation and Software CD or DVD
• Quick installation guide (printed)
• Product Warranty Statement (printed)
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

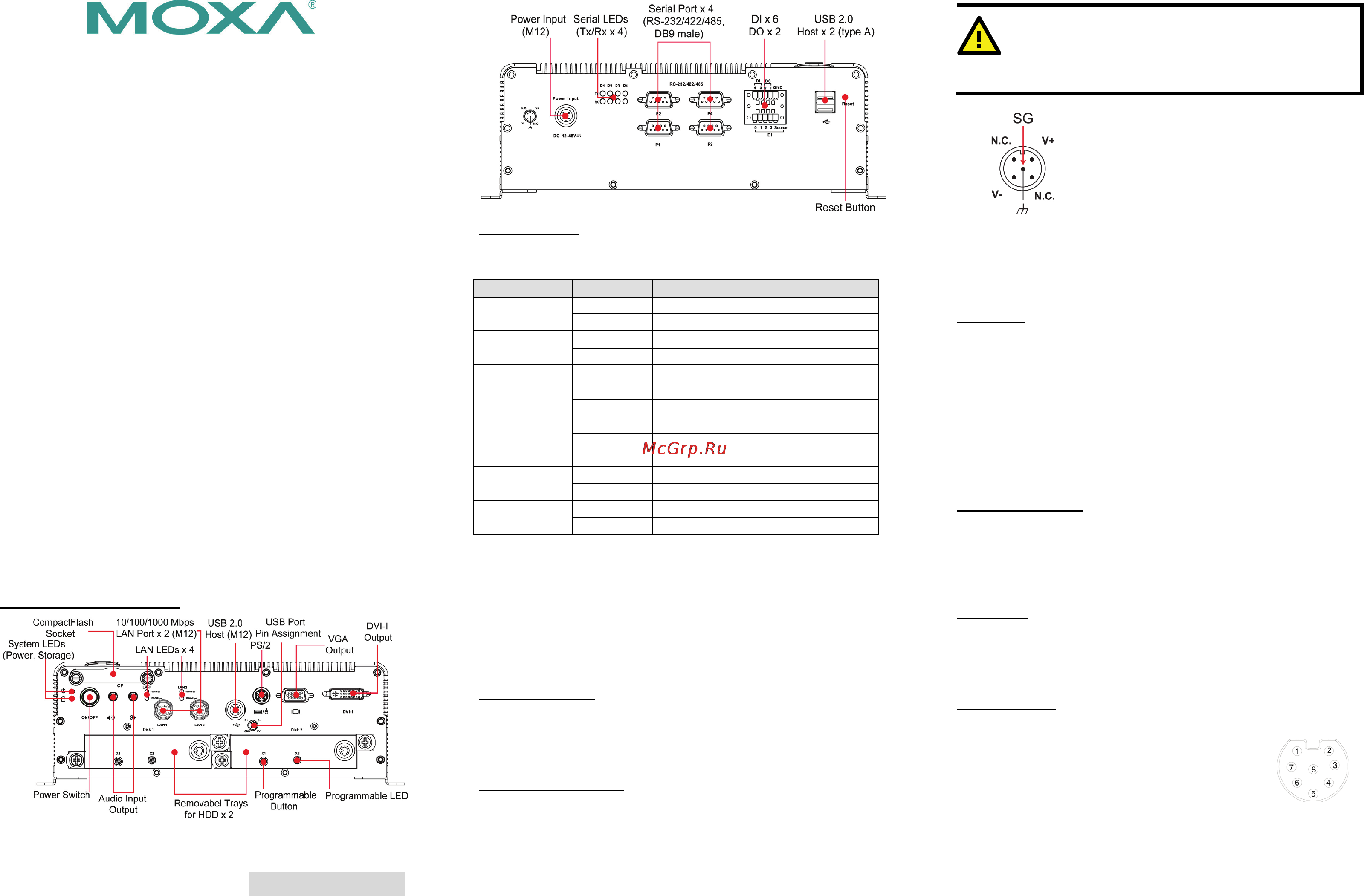

V2416 Panel Layout
V2416 Front & Rear Views
LED Indicators
The following table describes the LED indicators located on the
front and rear panels of the V2416.
LED Name
LED Color
LED Function
Power
Green
Power is on and functioning normally
Off
Power is off, or power error exists
Storage
Yellow
CF/HDD card is detected
Off
CF/HDD card is not detected
LAN (1, 2)
Green
100 Mbps Ethernet mode
Yellow
1000 Mbps Ethernet mode
Off
10 Mbps or no activity
Tx (P1-P4)
Green
Serial ports P1-P4 transmitting data
Off
Serial ports P1-P4 not transmitting
data
Rx (P1-P4)
Yellow
Serial ports P1-P4 receiving data
Off
Serial ports P1-P4 not receiving data
X2 (Disk 1,
Disk 2)
Yellow
User-programmable
Off
User-programmable
Installing the V2416
The V2416 can be DIN-rail mounted, wall mounted, and VESA
mounted. Some mounting kits may need to be purchased
separately. Refer to the Hardware User’s Manual for detailed
installation instructions.
Connector Description
Power Connector
Connect the 12 to 48 VDC power line with M12 connectors to the
V2416 computer. If the power is supplied properly, the Power LED
will light up. The OS is ready when the Ready LED glows a solid
green.
Grounding the V2416
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
the power.
ATTENTION
This product is intended to be mounted to a well
-
grounded
mounting surface, such as a metal panel.
SG: The
of the power input connector. Connect the
SG wire to an appropriate grounded metal
surface.
VGA and DVI Outputs
The V2416 comes with a D-Sub 15-pin female connector for a VGA
monitor; it also comes with a DVI-I connector for the DVI display.
These output interfaces are all located on the front panel. Use the
proper cable to connect.
PS/2 Port
The V2416 embedded computer comes with a PS/2 mini-DIN
connector to connect to a PS/2 keyboard and PS/2 mouse. Use the
Y-type cable to convert the mini-DIN connector into two 6-pin
mini-DIN connectors to connect both a PS/2 keyboard and PS/2
mouse at the same time. You may also use the USB ports to
connect your USB-based keyboard and mouse. Please note that
without a Y-type cable, the PS/2 connector on the V2416 can only
work with a PS/2 keyboard. A PS/2 mouse will not function when
directly connected to the PS/2 connector on the V2416 embedded
computer.
CompactFlash Slot
The V2416 has a CompactFlash slot located on the front panel for
storage expansion. It supports CF Type-I/II with DMA mode. To
install a CompactFlash card, remove the outer cover, and then
insert the CF card in the socket. When finished, push the cover into
the socket and fasten the screws.
USB Hosts
The V2416 has one USB port with a M12 connector on the front
panel, and two USB ports with type A connectors on the rear panel.
These USB ports can be used to connect flash disks for storing
large amounts of data.
Ethernet Ports
Two 10/100/1000 Mbps Ethernet ports using M12
connectors are located on the front panel. See the
following pin assignments.
