V2416 / W7E Moxa Software Package

3-8

Executing Monitor Function via Scripts

Each script is correspond to specific action, for example, when you press the button X1 on the SATA expansion

module 1, the “action_btnX1_pressed.vbs” is activated and the action defined in the script will be executed.

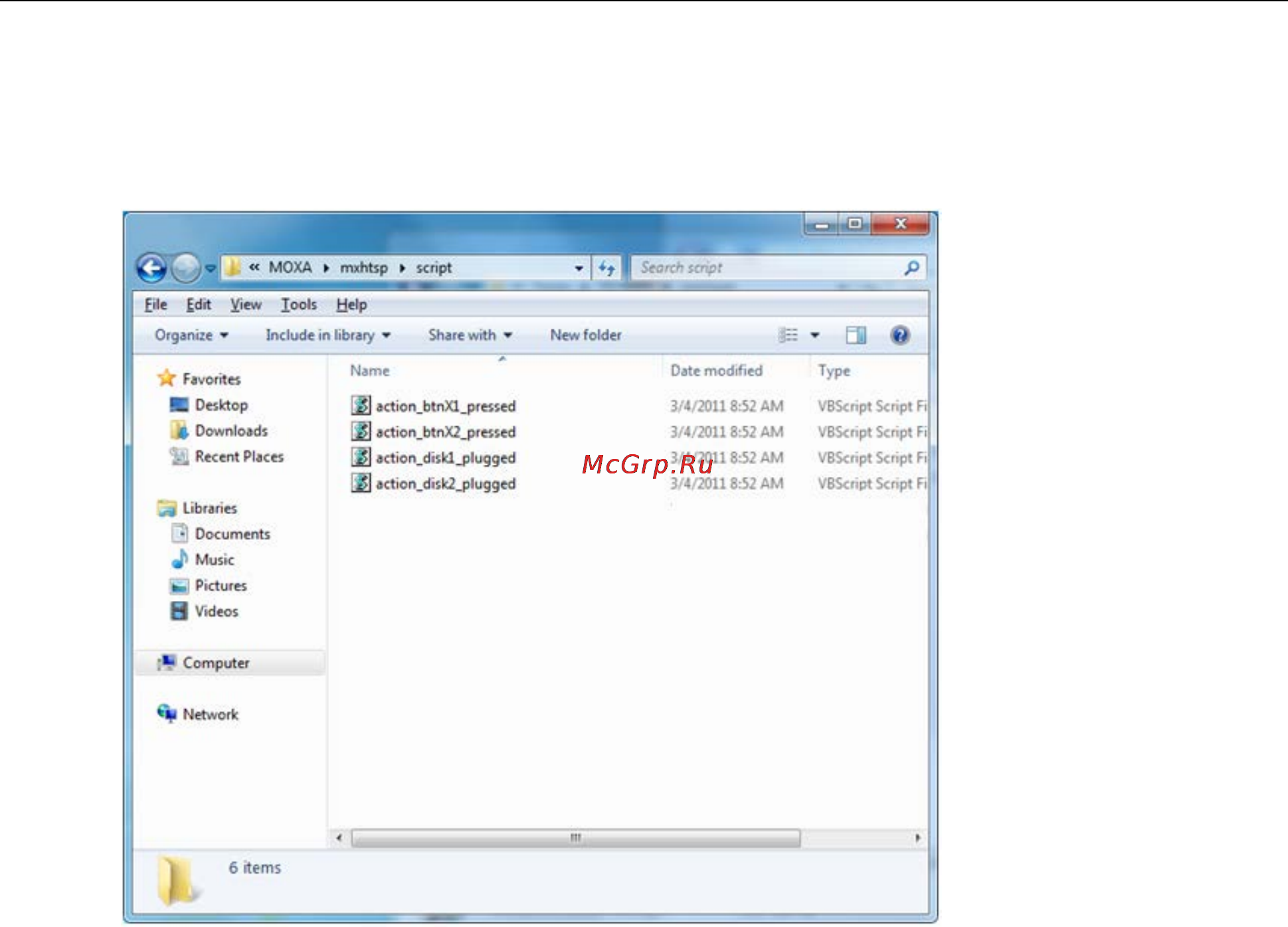

The following shows the definition of the script:

action_btnX1_press.vbs : This script is executed when button X1 on SATA expansion module 1 is pressed,

the default action of this script is to remove the hard disk1.

action_btnX2_press.vbs : This script is executed when button X1 on SATA expansion module 2 is pressed ,

the default action of this script is to remove the hard disk2.

action_disk1_plugged.vbs : This script is executed when disk1 is plugged , the default action of this script

is to light up and light off the led1 3 times.

action_disk2_plugged.vbs : This script is executed when disk2 is plugged , the default action of this script

is to light up and light off the led1 3 times.

Checking the Log File

The event of status or error will be logged into the log file in the directory C:\Program

Files\MOXA\mxhtsp\log. Each log file is tagged with date, and the events are logged with date and time.
