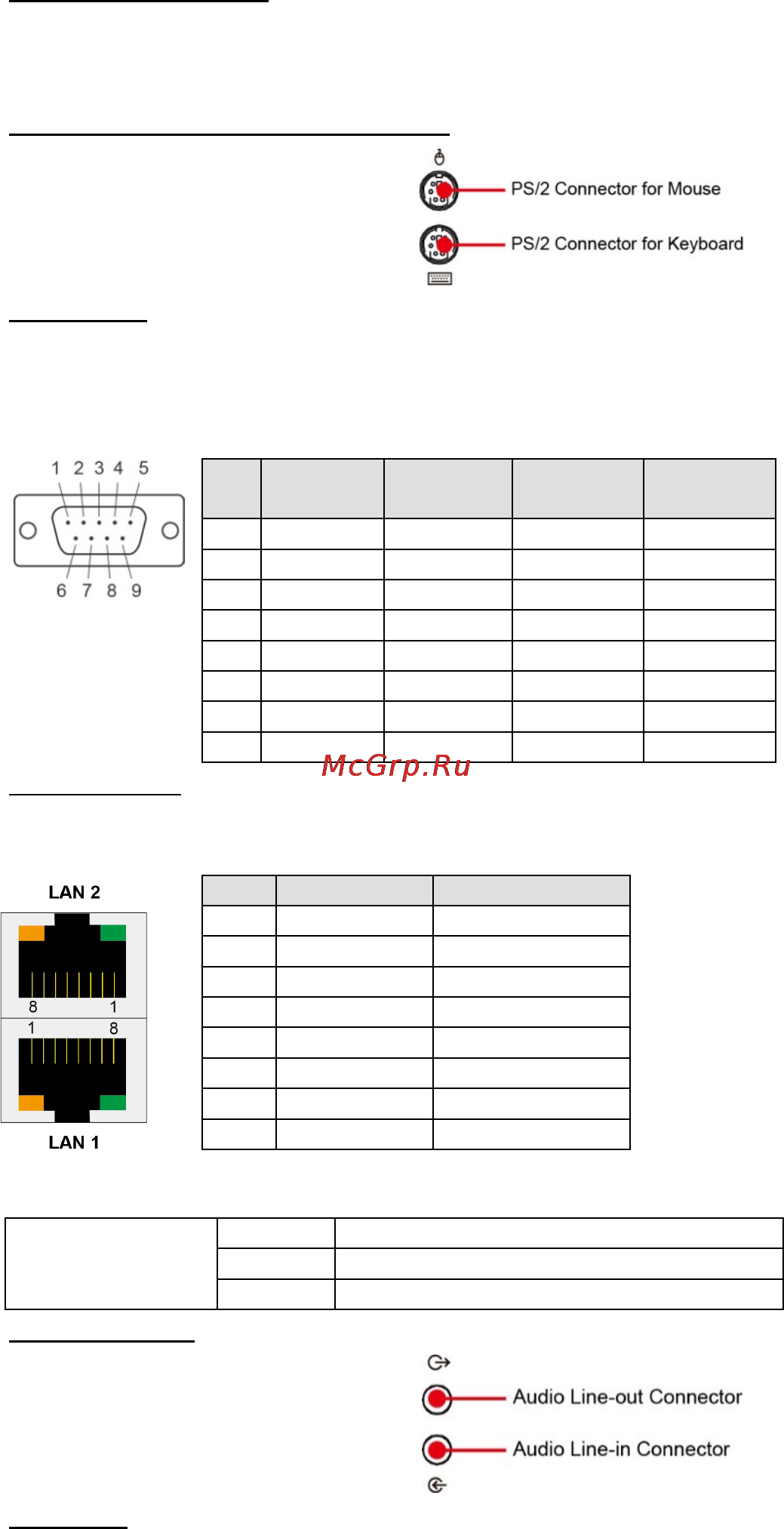

- 4 -
Extending the Display
The MPC-2150 comes with both standard VGA (DB15) and DVI-D (DB29)
interfaces (located on the bottom of the shell) which may be used to
simultaneously extend the display across two monitors.
Connecting to a Keyboard and Mouse
The
MPC-2150 Series comes with
two
PS/2
connectors located on the
bottom surface
, for connecting a
keyboard and a mouse.
Serial Ports
The MPC-2150 offers two software-selectable RS-232/422/485 serial
ports over a DB9 connector. Refer to the MPC-2150 User’s Manual for
serial port configuration details. The pin assignments for the ports are
shown in the table below:
Pin
RS-232 RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1
DCD
TxDA(-)
TxDA(-)
–
2
RxD
TxDB(+)
TxDB(+)
–
3
TxD
RxDB(+)
RxDB(+)
DataB(+)
4
DTR
RxDA(-)
RxDA(-)
DataA(-)
5
GND
GND
GND
GND
6
DSR
–
–
–
7
RTS
–
–
–
8
CTS
–
–
–
Ethernet Ports
The pin assignments for the two Fast Ethernet 100/1000 Mbps RJ45 ports
are shown in the following table:
Pin
1000 Mbps
1
TRD(0)+
2
TRD(0)-
3
TRD(1)+
4
TRD(2)+
5
TRD(2)-
6
TRD(1)-
7
TRD(3)+
8
TRD(3)-
Refer to the following table for a description of the LAN indicators:
LAN
(on connectors)
Green
100 Mbps Ethernet mode
Yellow
1000 Mbps (Gigabit) Ethernet mode
Off
No activity / 10 Mbps Ethernet mode
Audio Interface
The MPC-2150 comes with line-in
and line
-out audio jacks, allowing
users to connect a speaker
system
,
an earphone
, or a microphone.
USB Ports
Four USB 2.0 ports are available on the bottom surface. Use these ports
to connect mass storage drives and other peripherals.
