M-Audio Duo USB [4/27] Front panel

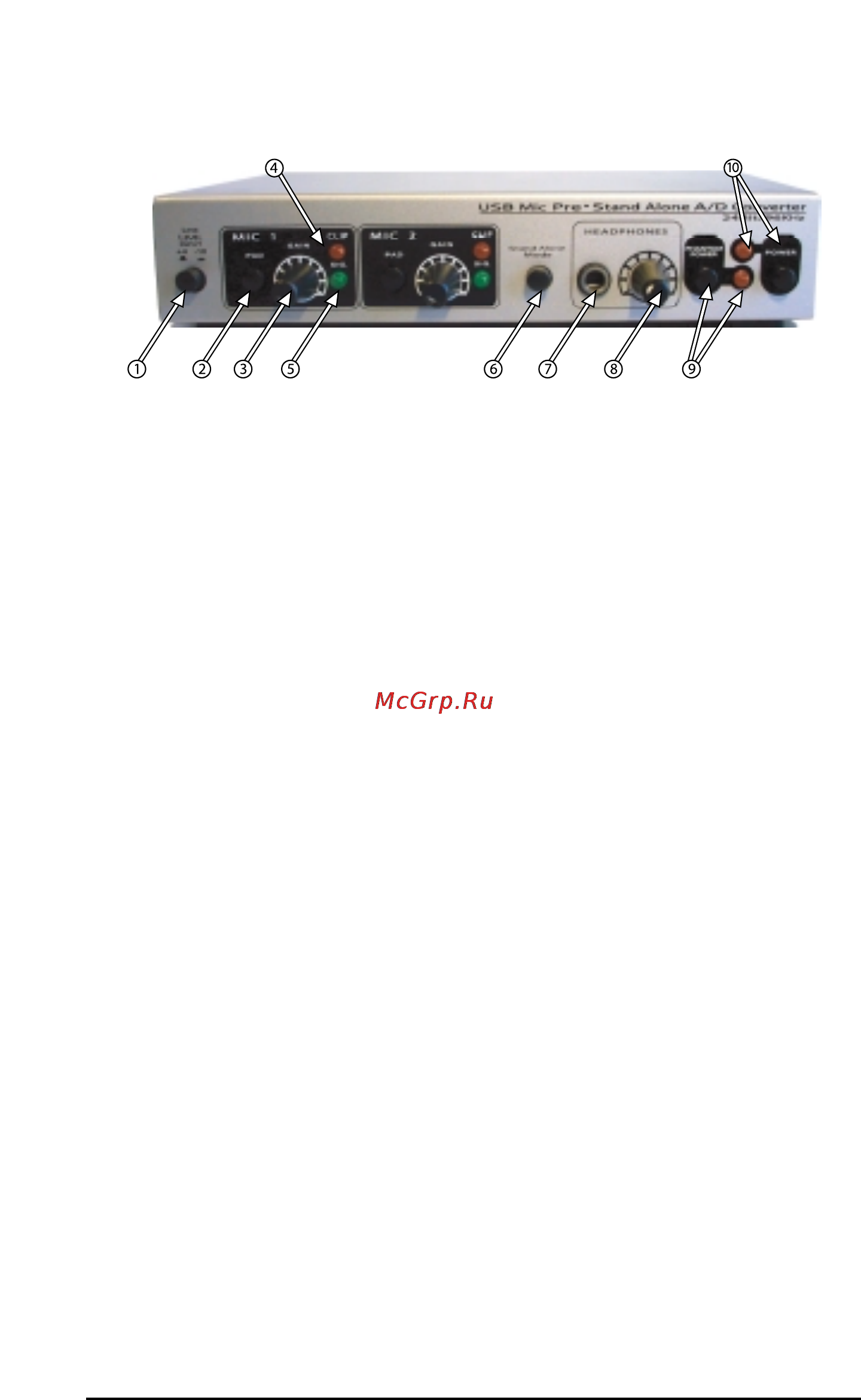

Front Panel:

1. Line Level Input Switch: This switch will set the input line level for the Duo.

With the switch in the out position, the Duo will operate at a +4dBu line level.

Pressing and locking this switch to the in position will set the operating line

level to -10dBV.

2. Pad Switch: One pad switch has been provided for each mic input on the Duo.

Pressing in and engaging the Pad switch will apply a 20dB pad, or “cut,” to

the microphone input prior to the microphone preamp.

3. Gain: This potentiometer controls the amount of gain applied to the

microphone preamp. One Gain pot is provided for each mic input.

4. Clip LED: This LED responds to the signal present at the Duo’s respective Mic

input, and will begin to light when the signal reaches clipping.

5. Sig. (Signal) LED: This LED responds to the signal present at the Duo’s

respective Mic input, and will begin to light when a nominal signal is present

at the input.

6. Standalone: Pressing in and engaging the Standalone switch will connect the

Mic and Line inputs directly to the analog Line Outs, S/PDIF output, and the

Headphone output. Standalone mode allows for use of the Duo as a mic

preamp and/or analog to digital converter independent of the computer. This

feature of the Duo also allows you to directly monitor the inputs when

connected to a computer.

7. Headphone Out Jack: This output jack is designed to connect to a 1/4” TRS

plug, typically for use with a set of stereo headphones. The source for the

signal at the Headphone Out is identical to the Line Outs.

8. Headphone Level: This knob controls the amount of monitoring level sent to

the Duo’s Headphone Out jack.

9. Phantom Power Switch & corresponding LED: Pressing in and engaging the

Phantom Power switch will send 48V of phantom power to the Duo’s Mic

inputs. When phantom power is switched on, the corresponding Phantom

Power LED will light and remain lit.

10. Power Switch & corresponding LED: Pressing in and engaging the Power

switch will power up the Duo, provided that the proper power supply is

connected to the 9V AC Power jack. When power is switched on, the

corresponding Power LED will light and remain lit.
