Ethernet Media Converters and Extenders
1
www.moxa.com

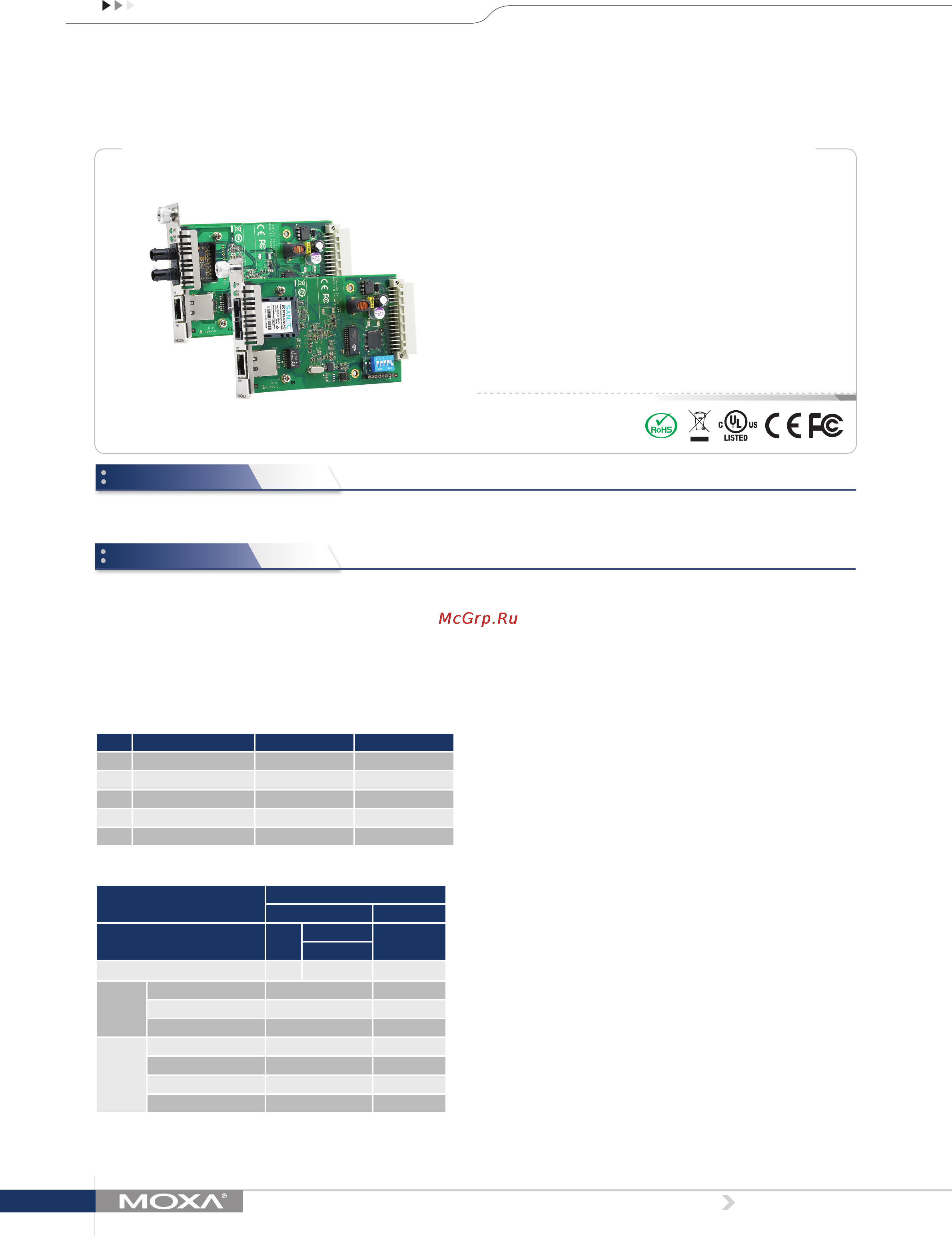

10/100BaseT(X) to 100BaseFX slide-in modules for the NRack System™
The CSM-200/400 modules are slide-in Ethernet-to-fiber media
converters for the NRack System™. The modules provide media
conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors),
and can be installed in any NRack System™ chassis.
Introduction
Specifications
CSM-200 Series
› LFP (Link Fault Pass-through) and FEF (Far End Fault)
› Two different operation modes
• Store-and-Forward
• Pass Through
› Auto Negotiation
› Plug and Play
› Hot-swap
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X), 100BaseFX
Interface
RJ45 Ports: 10/100BaseT(X)
Fiber Ports: 100BaseFX (SC/ST connectors)
LED Indicators: PWR, Fiber Link, 10/100M (TP port)
DIP Switches:
DIP Function ON OFF
1 Auto Negotiation Enable Disable
2 Force TP Speed 100 Mbps 10 Mbps
3 Force TP Duplex Full Duplex Half Duplex
4 Link Fault Pass Through Enable Disable
5 Operating Mode Store-and-Forward Pass Through
Optical Fiber
100BaseFX
Multi-Mode Single-Mode
Fiber Cable Type OM1
50/125 μm
G.652
800 MHz*km
Typical Distance
4 km 5 km 40 km
Wave-
length
Typical (nm) 1300 1310
TX Range (nm) 1260 to 1360 1280 to 1340
RX Range (nm) 1100 to 1600 1100 to 1600
Optical
Power
TX Range (dBm) -10 to -20 0 to -5
RX Range (dBm) -3 to -32 -3 to -34
Link Budget (dB) 12 29
Dispersion Penalty (dB) 3 1
Note: When connecting a single-mode fiber transceiver, we recommend
using an attenuator to prevent damage caused by excessive optical power.
Note: Compute the “typical distance” of a specific fiber transceiver as
follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Physical Characteristics
Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight:
Product only:
CSM-200-1213: 115 g (0.25 lb)
CSM-200-1214/1218: 125 g (0.28 lb)
Packaged:
CSM-200-1213: 170 g (0.37 lb)
CSM-200-1214/1218: 180 g (0.40 lb)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Input Voltage: 12 VDC
Input Current: 180 mA @ 12 VDC max.
Standards and Certifications
Safety: UL 60950-1
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class A
EMS:
EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m
EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV
EN 61000-4-5 (Surge): Power: 1 kV; Signal: 0.5 kV
EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m
EN 61000-4-8 (PFMF)
EN 61000-4-11
Freefall: IEC 60068-2-32
MTBF (mean time between failures)
Time: 1,454,560 hrs
Standard: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
