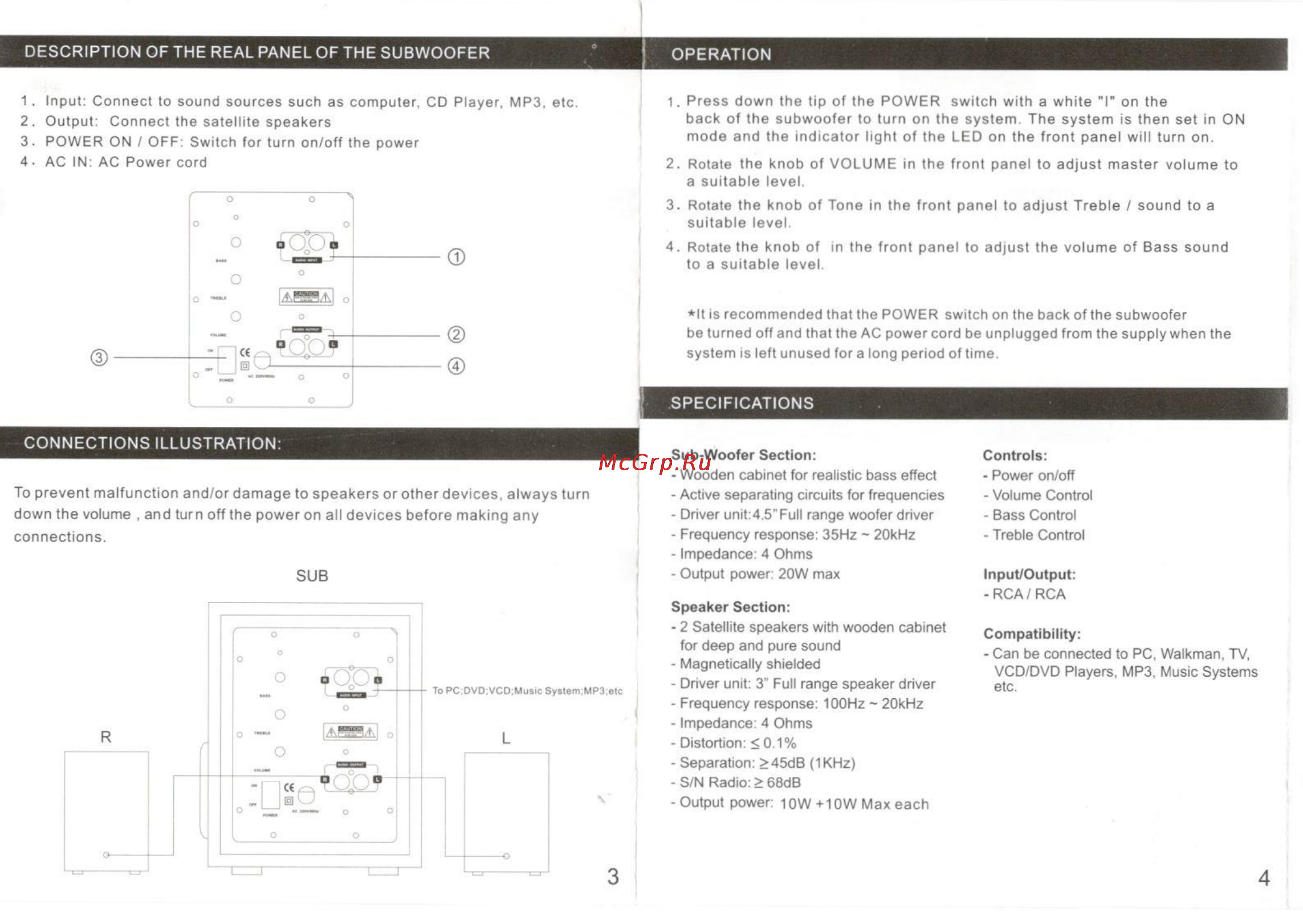

DESCRIPTION OF THE REAL PANEL OF THE SUBWOOFER 1 Input Connect to sound sources such as computer CD Player MP3 etc 2 Output Connect the satellite speakers 3 POWER ON I OFF Switch for turn on off the power 4 AC IN AC Power cord OPERATION 1 Press down the tip of the POWER switch with a white I on the back of the subwoofer to turn on the system The system is then set in ON mode and the indicator light of the LED on the front panel will turn on 2 Rotate the knob of VOLUME in the front panel to adjust master volume to a suitable level 3 Rotate the knob of Tone in the front panel to adjust Treble sound to a suitable level 4 Rotate the knob of in the front panel to adjust the volume of Bass sound to a suitable level 11 is recommended that the POWER switch on the back of the subwoofer be turned off and that the AC power cord be unplugged from the supply when the system is left unused for a long period of time SPECIFICATIONS CONNECTIONS ILLUSTRATION To prevent malfunction and or damage to speakers or other devices always turn down the volume and turn off the power on all devices before making any connections SUB Sub Woofer Section Wooden cabinet for realistic bass effect Active separating circuits for frequencies Driver unit 4 5 Full range woofer driver Frequency response 35Hz 20kHz Impedance 4 Ohms Output power 20W max Speaker Section 2 Satellite speakers with wooden cabinet for deep and pure sound Magnetically shielded Driver unit 3 Full range speaker driver Frequency response 100Hz 20kHz Impedance 4 Ohms Distortion 0 1 Separation 45dB 1KHz S N Radio 68dB Output power 10W 10W Max each Controls Power on off Volume Control Bass Control Treble Control Input Output RCA RCA Compatibility Can be connected to PC Walkman TV VCD DVD Players MP3 Music Systems etc 4
