High-Speed Port Powered Serial to Long Range
Optic Fiber Media Conversion Solution

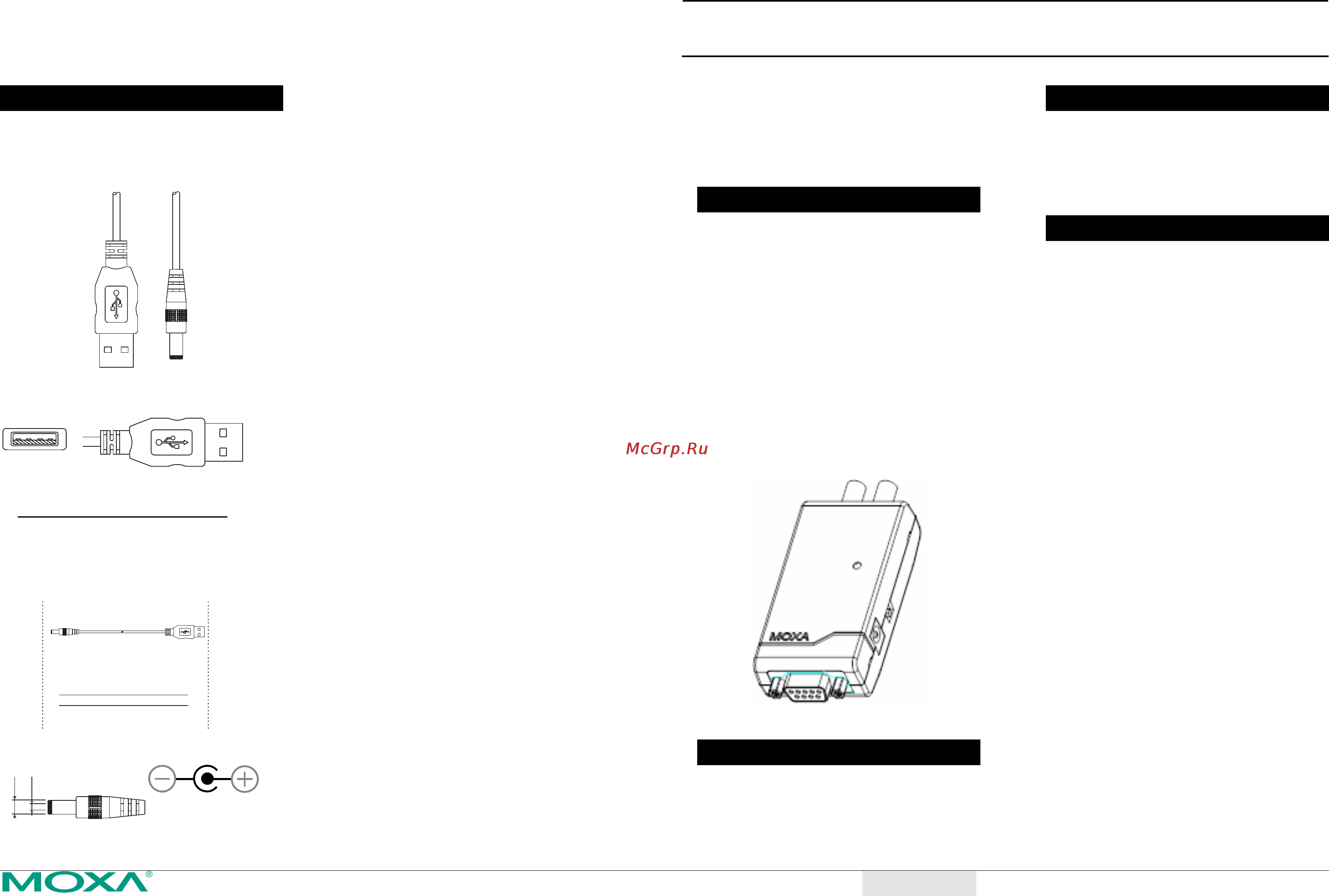

Transio TCF-90 User’s Manual P/N: 1802000900000 Second Edition.
www.moxa.com ©2008 Moxa Inc.
Moxa Inc.
All rights reserved.
USB Power Cord
If additional external power is required,
TCC-80 is designed to be connected to a
standard 5 to 12 VDC Power Supply, or an
USB Power Cord “CBL-USBAP-50”
USB “A” Male Connector
Front:
4 3 2 1
Top:
TCF-90
USB Connector
Connector Pinouts Signals
1 +5 VDC
2 --
3 --
4 GND
TCC-80
inner
outer
DV Power Plug
CBL-USBAP-50
USB
USB Host
A Type Female
+5 VDC
GND
Cable Wiring
1
4
12 VDC
10 mA (max.)
Ø2.1±0.1
Ø5.1±0.1
Transio TCF-90-M/S
High-speed Self-powered RS-232 to Long
Range Optic Fiber Converter with 15 KV
ESD Surge Protection.
Overview
TCF-90 is a compact size, high-speed RS-232 to
Optic Fiber converter which handles the extension
of RS-232 transmission from simply 15 meters to 5
km (TCF-90-M, multi-mode) or 40 km (TCF-90-S,
single-mode) without supplying external power to it.
The TCF-90 series is designed to drain the power
from the attached serial port. It allows two RS-232
serial devices to connect to each other in full duplex
transmission via the reliable optic fiber. Moreover,
the TCF-90 isolates the devices from the dangerous
ground potential rise, ground loops, and also the
electrical EMI/RFI noise. It greatly reduces RF
radiation and susceptibility. Data security is also
enhanced by almost nonexistent electromagnetic
emissions.
Package Checklist
• TCF-90
• USB Power Cord
• User’s Manual
Applications
• Point-to-point data communication
• Factory automation
• Remote serial device control
• Building security automation
• Critical industrial control
Features and Specifications
• Serial interface: RS-232
• Optic fiber interfaces: Multi/Single-mode
• Port types: RS-232 DB9
Female Optic Fiber : ST type
• Auto sensing baudrate up to 115.2 Kbps
• RS-232 Signals: TxD, RxD and GND
• RS-232 loopback: RTS to CTS;
DTR to DSR and also DCD
• 15 KV ESD for all RS-232 signals
• Optic Fiber Wavelength:
TCF-90-S: 1310 nm
TCF-90-M: 850 nm
• Optic Fiber Transmit Distance:
TCF-90-S Multi-mode: 40 km
TCF-90-M Single-mode: 5 km
• Optic Fiber Tx Output: > -5 dBm
• Optic Fiber Rx Sensitivity:
TCF-90-S: -24 dBm
TCF-90-M: -20 dBm
• Serial Power Source: TxD, RTS and DTR
(RTS/DTR ON are recommended)
• Ext. Power (jack): DC +5V to +12V
adapters or a USB Power cord (DC +5V)
• Operating temperature: 0 to 60°C
(32 to 140°F)
• Dimensions: 42 × 80 × 22 mm
• Case: ABS + PC
• Weight: 50 ± 5 g
• CE, FCC Class B approval
• Power Consumption: 10 mA at +5 VDC
• Warranty: 2 years
