Serial Media Converters
2
© Moxa Inc. All rights reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
PIN RS-232
1 DCD
2 TxD
3 RxD
4 DSR
5 GND
6 DTR
7 CTS
8 RTS
DB9 female
connector
Available Models
TCF-90-M: Port-powered RS-232 to multi-mode optical-fiber converter with ST connector for 5 km
transmission
TCF-90-S: Port-powered RS-232 to single-mode optical-fiber converter with ST connector for 40 km
transmission
Note: Models with SC/FC connectors or a 60 km range are available by request.
Optional Accessories (can be purchased separately)
Power Adapter: See Appendix A for details
CBL-F9M9-20: DB9 male to DB9 female RS-232 cable (20 cm)
Package Checklist
• 1 TCF-90 series media converter
• USB power cord, 50 cm
• Quick installation guide
• Warranty card
Optical-Fiber Side
Fiber Connector: ST
Fiber Cable Requirements:
Low-Speed Fiber Module Multi-Mode Single-Mode
Fiber Cable Requirements
50/125 μm, 800 MHz
G.652
62.5/125 μm, 500 MHz
Typical Distance
5 km 40 km
Wave-
length
Typical (nm) 850 1310
TX Range (nm) 840 to 860 1290 to 1330
RX Range (nm) 800 to 900 1100 to 1650
Optical
Power
TX Range (dBm) 0 to -5 0 to -5
RX Range (dBm) 0 to -20 0 to -25
Link Budget (dB) 15 20
Dispersion Penalty (dB) 1 1
Note: When using a power meter to measure the fiber TX power, set the
baudrate to 9,600 bps and send data (00, …, 0h) to the serial converter’s serial
port.
RS-232 Side
Connector: DB9 female
Signals:
RS-232 Tx, Rx, GND (Loop-back wiring: RTS to CTS, DTR to DSR and
DCD)
Baudrate: 300 bps to 115.2 kbps
Physical Characteristics
Housing: ABS + PC
Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Weight: 150 g (0.33 lb)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Source of Input Power: RS-232 port (TxD, RTS, DTR) or power input
jack
Input Voltage: 5 to 12 VDC
Input Current: 20 mA @ 5 VDC (with termination disabled)
Standards and Certications
Safety: UL 60950-1
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m
EN 61000-4-4 (EFT): Power: 0.5 kV; Signal: 0.5 kV
EN 61000-4-5 (Surge): Power: 2 kV; Signal: 1 kV
EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m
EN 61000-4-8 (PFMF)
Green Product: RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time: 2,272,562 hrs
Standard: MIL-HDBK-217F
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

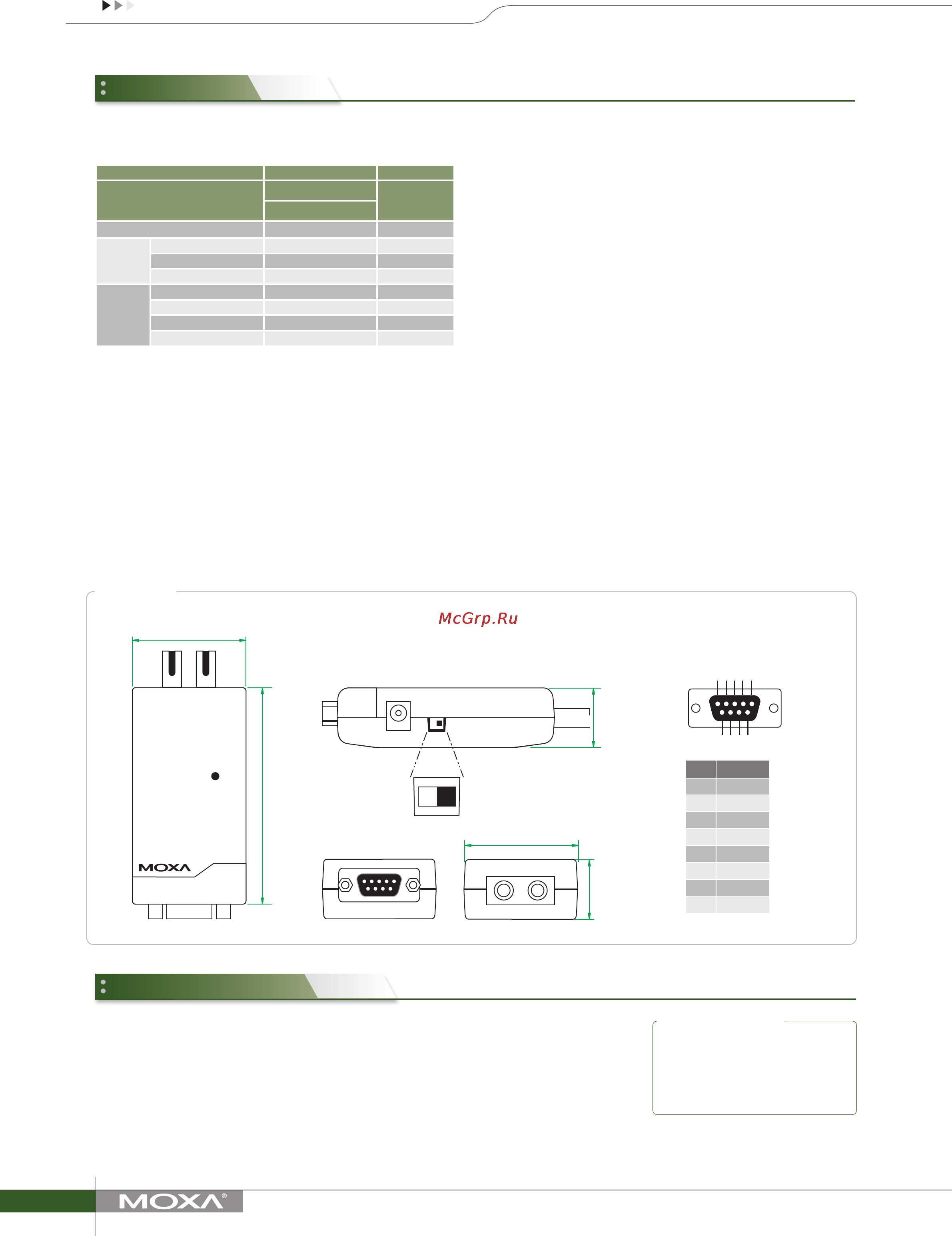

Dimensions
Unit: mm (inch)
5 4 3 2 1
9 8 7 6
Specifications
Ordering Information
22.00 (0.87)
Test
Mode
SW4
Std.
Mode
22.00 (0.87)
42.00 (1.65)
T +
G N D
R + / D +
T
R / D
80.00 (3.15)
42.00 (1.65)
TEST
Tx
Rx
