- 6 -
Switch Settings
There are two DIP switches on the front panel of the ICF-1170I series.
120 Ω Terminator
Switch 1
Enable
ON
Disable
OFF (default)
Fiber Test Mode
Switch 2
Enable
ON
Disable
OFF (default)
LED Indicators
There are 4 LEDs on the front panel of the ICF-1170I.
LED
Color
Function
PWR 1
Green
Steady ON: Power source 1 is ON.
PWR 2
Green
Steady ON: Power source 2 is ON.
Fiber Tx
Green
When sending CAN data to the fiber port.
Fiber Rx
Orange
When receiving CAN data from the fiber port.

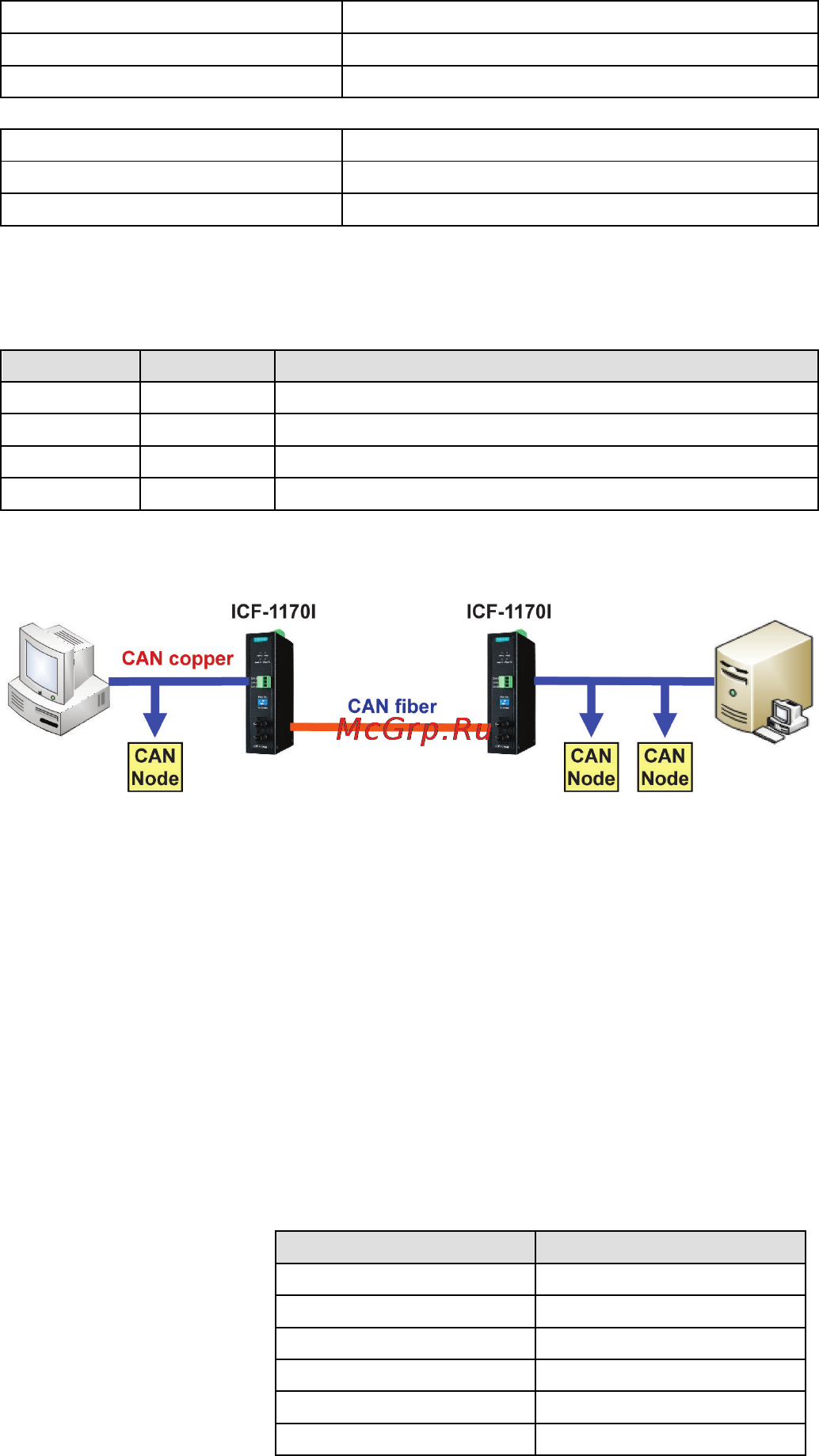

Typical CAN Application
Specifications
CAN Communication
CAN Bus Interface:
ISO 11898-2, Terminals (CAN_H, CAN_L,
CAN_GND)
Protocols Supported:
CAN 2.0A and 2.0B (ISO 11898-2)
CAN Connector:
3-pin removable screw terminal x1
Termination Resistor:
Dip switch selector for 120 Ω terminal resistor
Baudrate:
Up to 1 Mbps
System Delay:
150 ns
Isolation Protection:
2 KV
Transmission Length:
Max
. 2 KM (depends on the data rate and the
protocol used)
Fiber Length
10 m
100 m
250 m
400 m
1000 m
2000 m
Note:
CAN Bus cable length is 30 m.
LED Indicators:
PWR1, PWR2, Fiber TX, Fiber RX
Note: The transmission distance is limited by the signal rate, as
mentioned in the ISO 11898-2 standard.
