Alarm Contact Output

The ICF-1170I supports dual power inputs for redundancy. When one

power input fails, the relay will be triggered. Be sure to install the dual

power inputs for the ICF-1170I series, and choose the correct relay

output when connecting the alarm.

Features

• Transmission distance up to 2 km

• Convert CAN signals to fiber and fiber to CAN signals

• CAN transfer rate up to 1 Mbps

• Dual power inputs for redundancy

• DIP switch for 120 Ω terminal resistance

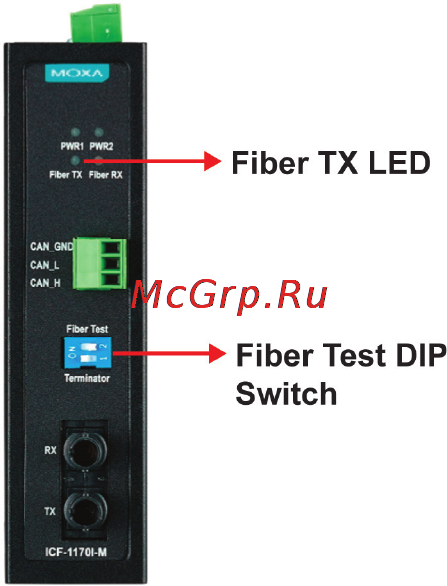

• DIP switch for fiber test mode

• Wide temperature range model available for -40 to 85°C

environments

Package Checklist

Before installing the ICF-1170I series, verify that the package contains

the following items:

• ICF-1170I series CAN-to-fiber Converter

• Quick Installation Guide (printed)

• Warranty Card

NOTE: Please notify your sales representative if any of the above items

are missing or damaged.
