- 6 -

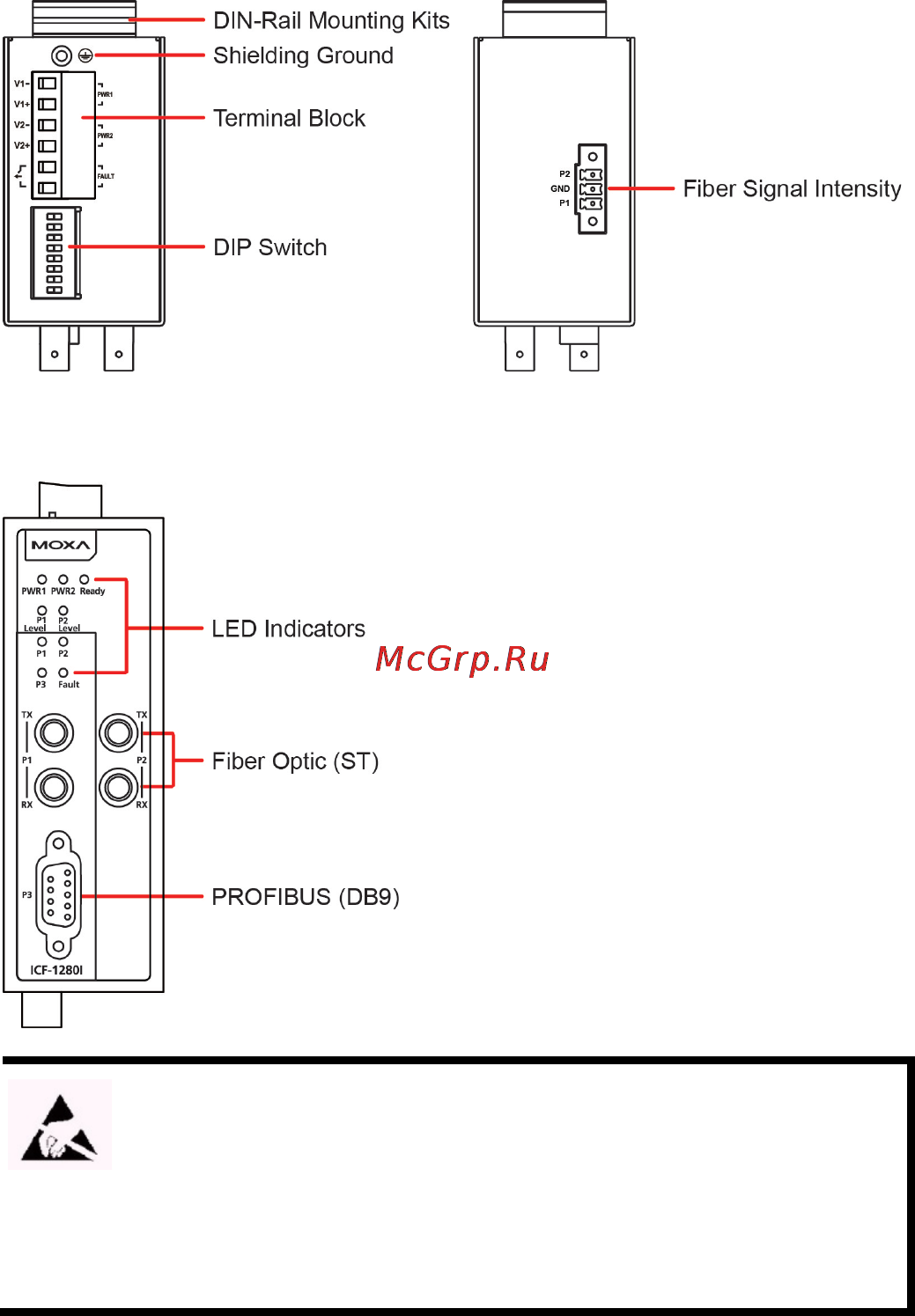

ICF-1280I Panel Layouts
Top View
Bottom View
Front View
ATTENTION
Electrostatic Discharge Warning!
To protect the product from damage due to electrostatic
discharge, we recommend wearing a grounding device when
handling your ICF-1280I series converters.
Mounting
The aluminum DIN rail attachment plate should be fixed to the back panel
of the ICF-1280I converter when you take it out of the box. If you need to
reattach the DIN rail attachment plate to the ICF-1280I converter, make
sure the stiff metal spring is situated towards the top, as shown in the
figures below.
