Jumper Settings

Models with DIO, AI, or external power channels require configuring the

jumpers inside the enclosure. Remove the screw located on the back

panel and open the cover to configure the jumpers.

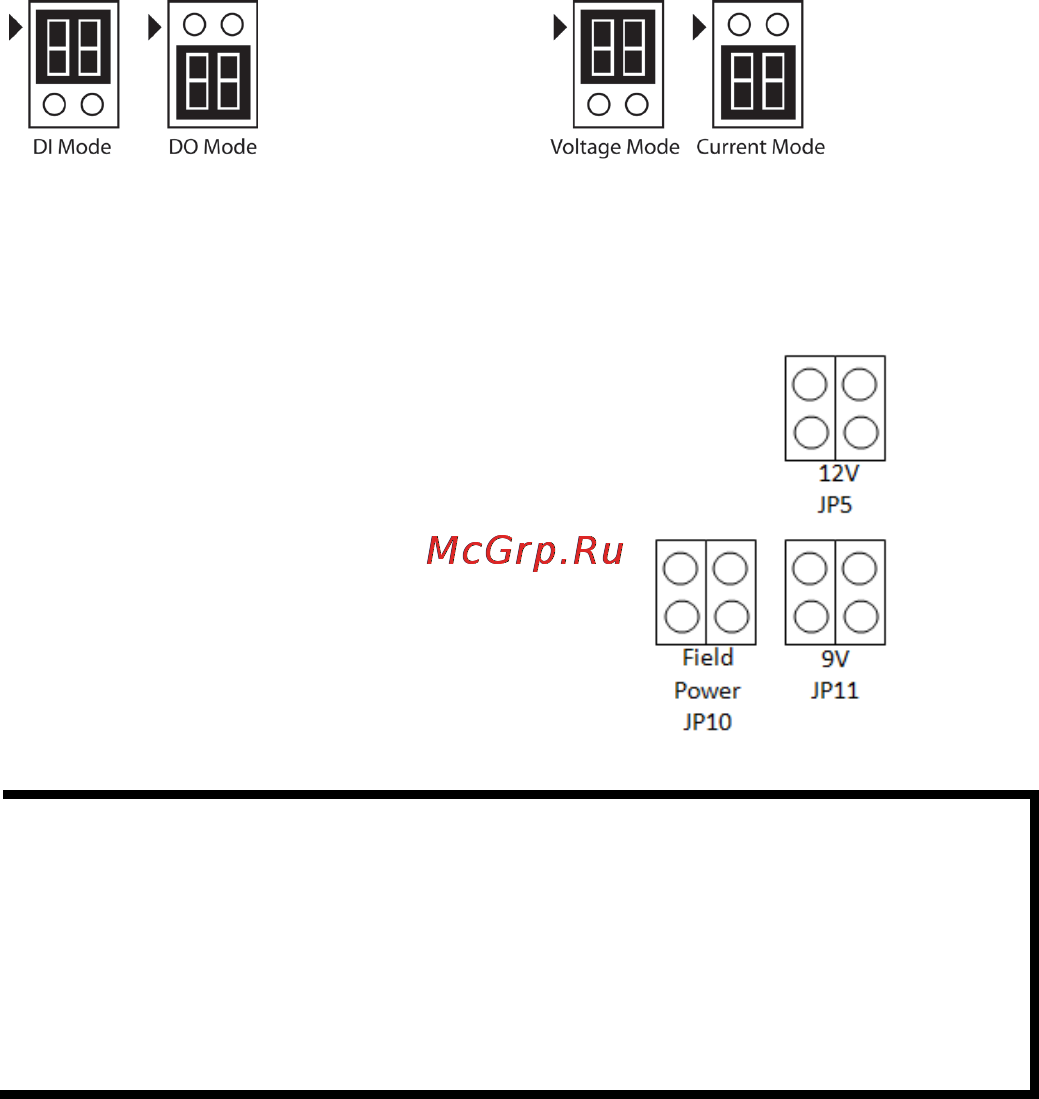

DIO mode configurations are

shown above (Default: DO Mode).

Analog mode configurations are

shown above (Default: Voltage

Mode).

DOs on the ioLogik E1213 have 3

possible external (EXT) power

configurations, which are shown to

the right. Only one field power can

be selected at a time (JP10 / 12V JP5

/ 9V JP11)

and

the jumper must be

inserted vertically, not horizontally

(Default: Field Power JP10).

NOTE

The ioLogik E1213 has 4 pure DO channels and 4 hybrid DIO

channels. For the 4 pure DO channels, you can use the jumpers to

select the power configuration output (i.e., field power, 12 V, 9

V). But for the 4 hybrid DIO channels, you cannot use the

umpers to select the power configuration output. Instead, you

can only use the jumpers to set the DIO channels to either DI

mode or DO mode.

Mounting

There are two sliders on the back of the unit for DIN rail and wall

mounting.

1. Mounting on a DIN rail: Pull out the bottom slider; latch the unit

onto the DIN-rail, and push the slider back in.

2. Mounting on the wall: Pull out both the top and bottom sliders and

align the screws accordingly.

Connecting to the Network

The ioLogik E1200 has two built-in RJ45 Ethernet ports for connecting

standard direct or cross-over Ethernet cables.
