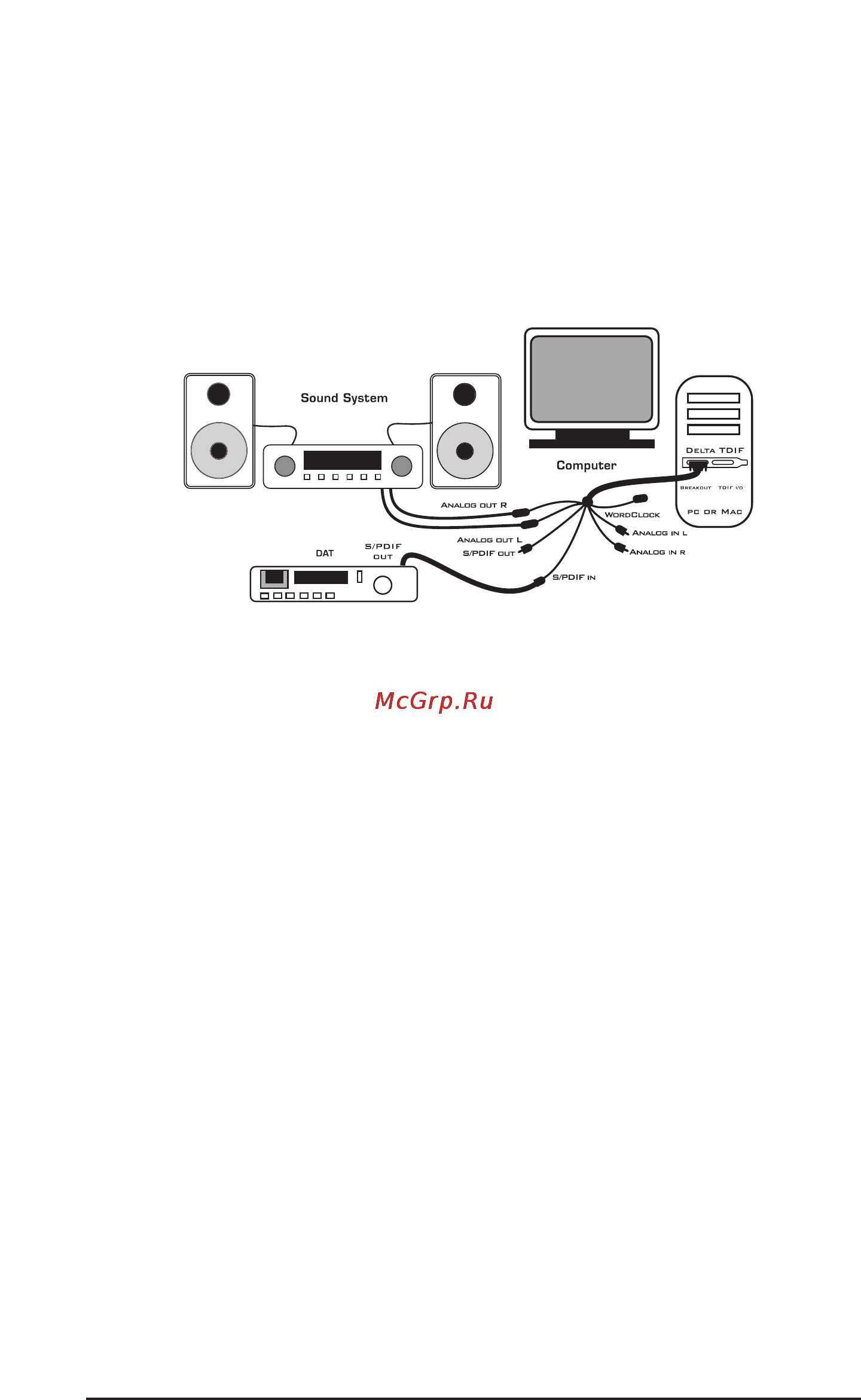

In this example, we will connect a DAT to the Delta TDIF’s breakout cable

using coaxial S/PDIF cables (75-ohm impedance RCA-to-RCA). We’ll also

connect the Delta TDIF’s analog outputs to a sound system for monitoring

purposes. A setup like this might be used to transfer a number of mixes

from a DAT into an audio editing program, performing the appropriate

edits, and then transferring the edited material back to DAT.

Transferring from DAT to Computer

1. Connect the DAT’s coaxial S/PDIF output to the S/PDIF In of the

Delta TDIF breakout cable, using a good quality digital cable.

2. Connect the Delta TDIF’s analog outputs to some type of amplified

sound system. The sound system should be equipped with speakers

or headphones. The line level output settings in the Delta Control

Panel’s “Hardware Settings” page may be set to be compatible with

that sound system’s inputs.

3. Because you will be recording from the S/PDIF input, you will need

to set up the Delta TDIF to synchronize its master clock with the

S/PDIF input. To do this, open the Hardware Settings page of the

control panel software. Under Master Clock, select "S/PDIF In." You’ll

also need to select the S/PDIF as the chosen input source for SP/ANA

(thereby deselecting the Analog input).

4. Next, you will need to tell your application software the expected

sample rate. We’ll use 44.1 kHz in this example. Therefore, on the

Hardware Settings page, set the "S/PDIF Sample Rate" to 44,100.
