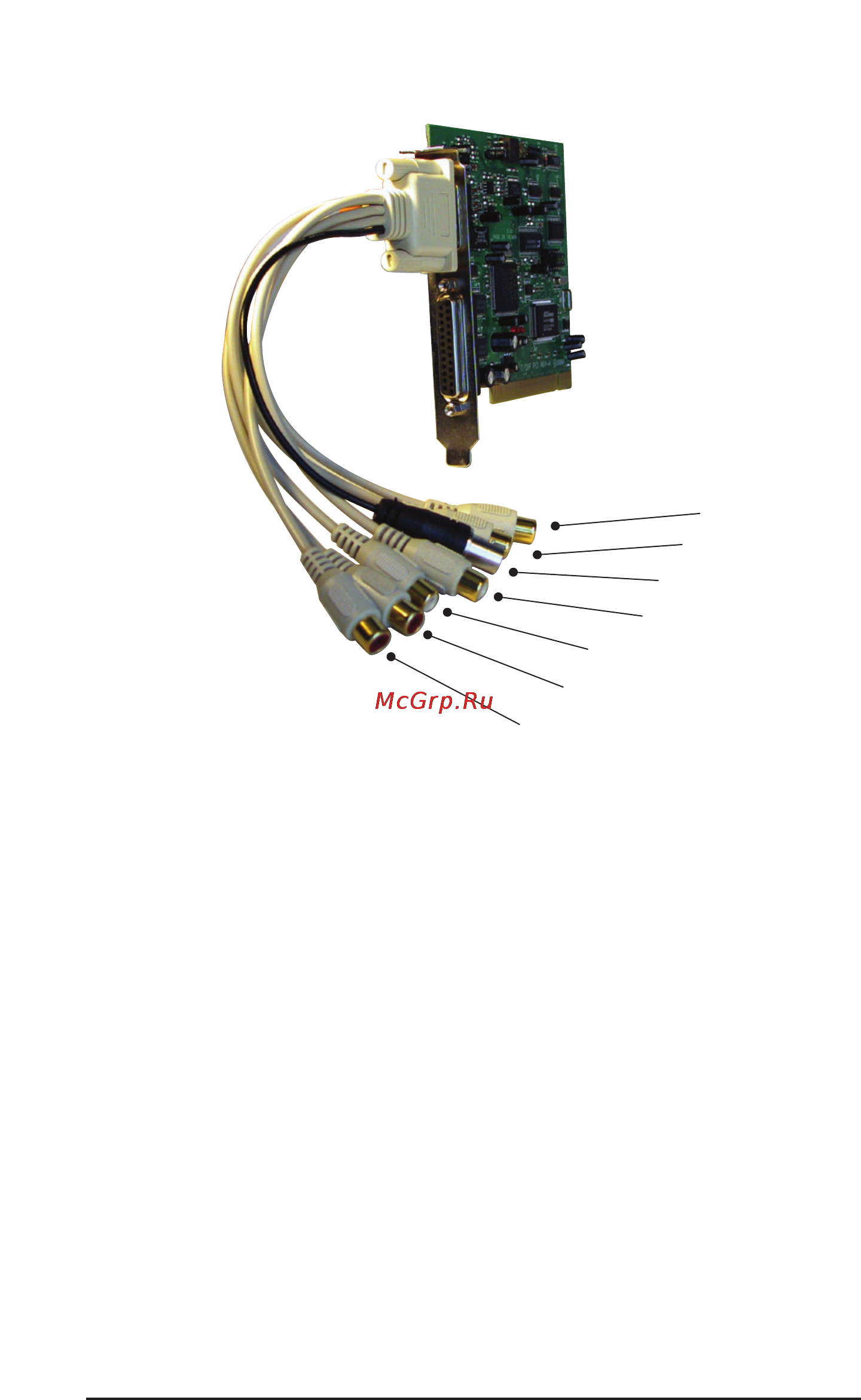

Delta TDIF PCI Breakout Cable:

1. S/PDIF Out RCA jack (sp O): This jack outputs digital audio to a

variety of external sources. This jack is RCA female and is compatible

with coaxial digital cables.

2. S/PDIF In RCA jack (sp I): This jack inputs digital audio from a

variety of external sources. This jack is RCA female and is compatible

with coaxial digital cables.

3. Word Clock Out (black): This female BNC connector outputs a word

clock signal that is in-sync with the present sample rate clock of the

Delta TDIF. The output circuitry is designed to drive a word clock

signal across 75-ohm coaxial cables and into a device with 75-ohm

termination.

4. Analog Out “Left” RCA jack (out L): This jack outputs analog audio to

a variety of external target devices. This jack is RCA female and is

compatible with RCA male audio cables.

5. Analog In “Left” RCA jack (in L): This jack inputs analog audio from

a variety of external sources. This jack is RCA female and is

compatible with RCA male audio cables.
