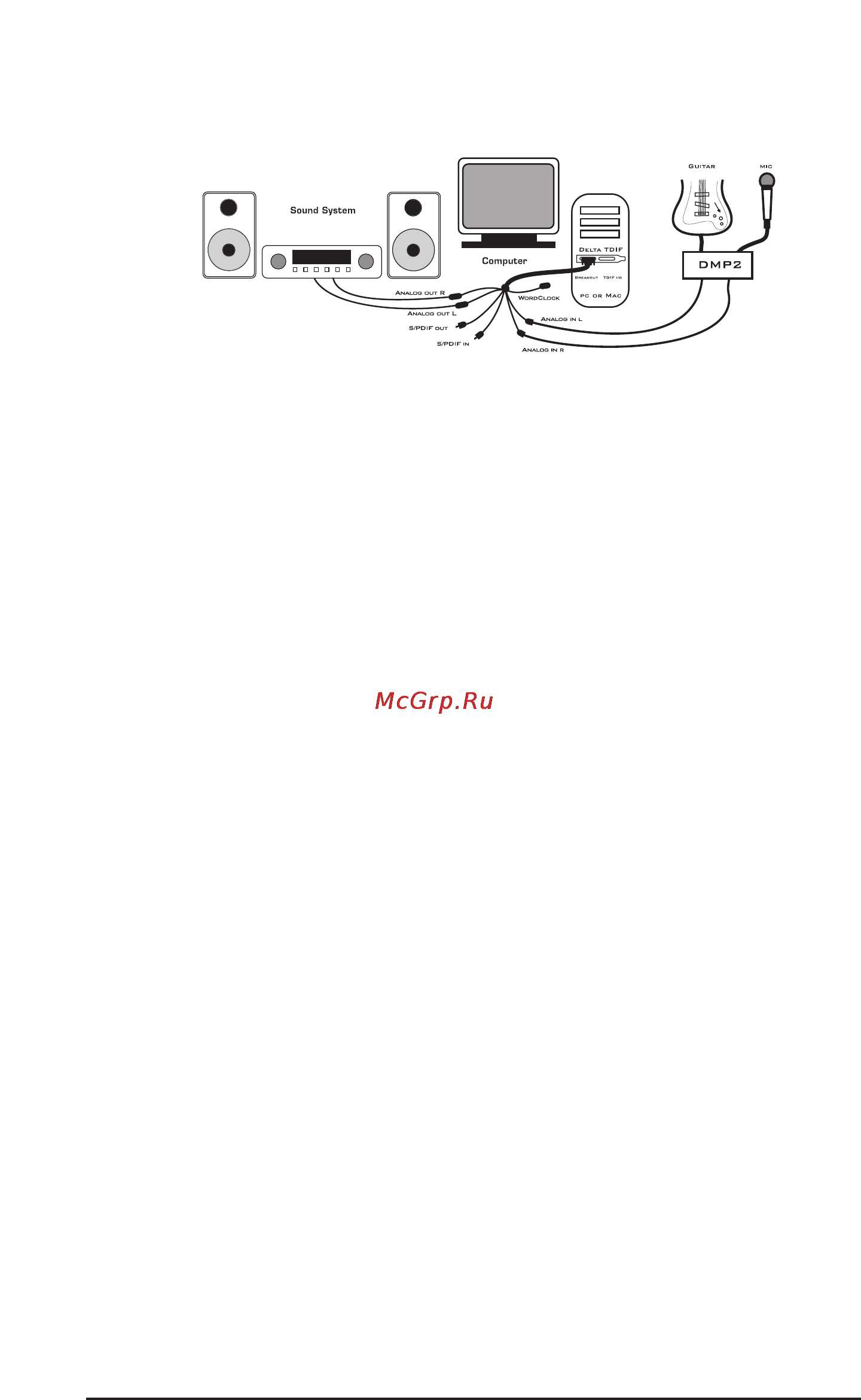

1. Plug the guitar into the channel-1 Line input of the pre-amp. Plug the

microphone into the channel-2 Mic input.

2. Plug the outputs 1 & 2 of the pre-amp into the Delta TDIF’s analog

inputs. Use a high quality shielded cable with a 1/4” phone plug on

one end, and a male RCA plug on the other. You’ll need to open the

Delta Control Panel (when your computer is powered up) to the

Hardware Settings page. Select “Analog” as the input (deselecting

“S/PDIF”) to activate the Delta TDIF’s analog inputs.

3. Plug the analog outputs of the Delta TDIF to a sound system or power

amp with speakers. Again, use a high quality cable with a male RCA

plug on the end that connects to the Delta TDIF’s analog outputs, and

the type of plug on the other end (generally, either male RCA or 1/4”

male phone plug) that is appropriate for your sound system or power

amp.

4. Turn on your equipment in this suggested order: pre-amp, computer,

then sound system.

We’re now physically set up to monitor, record, and play back audio. In

this scenario, you could substitute a tape deck, CD player, or other

playback deck for the instruments and preamp. Just hook it up to the left

and right analog inputs, corresponding to the left and right outputs of

your playback deck.

The next steps involve configuring the Delta Control Panel software and

the music software into which you will be recording. We’ll start with the

Delta Control Panel’s "Hardware Settings" page, then the

"Patchbay/Router" page, and finally the "Monitor Mixer" page. We’re

not using S/PDIF in this example so we’ll ignore the S/PDIF page.
