Remote I/O

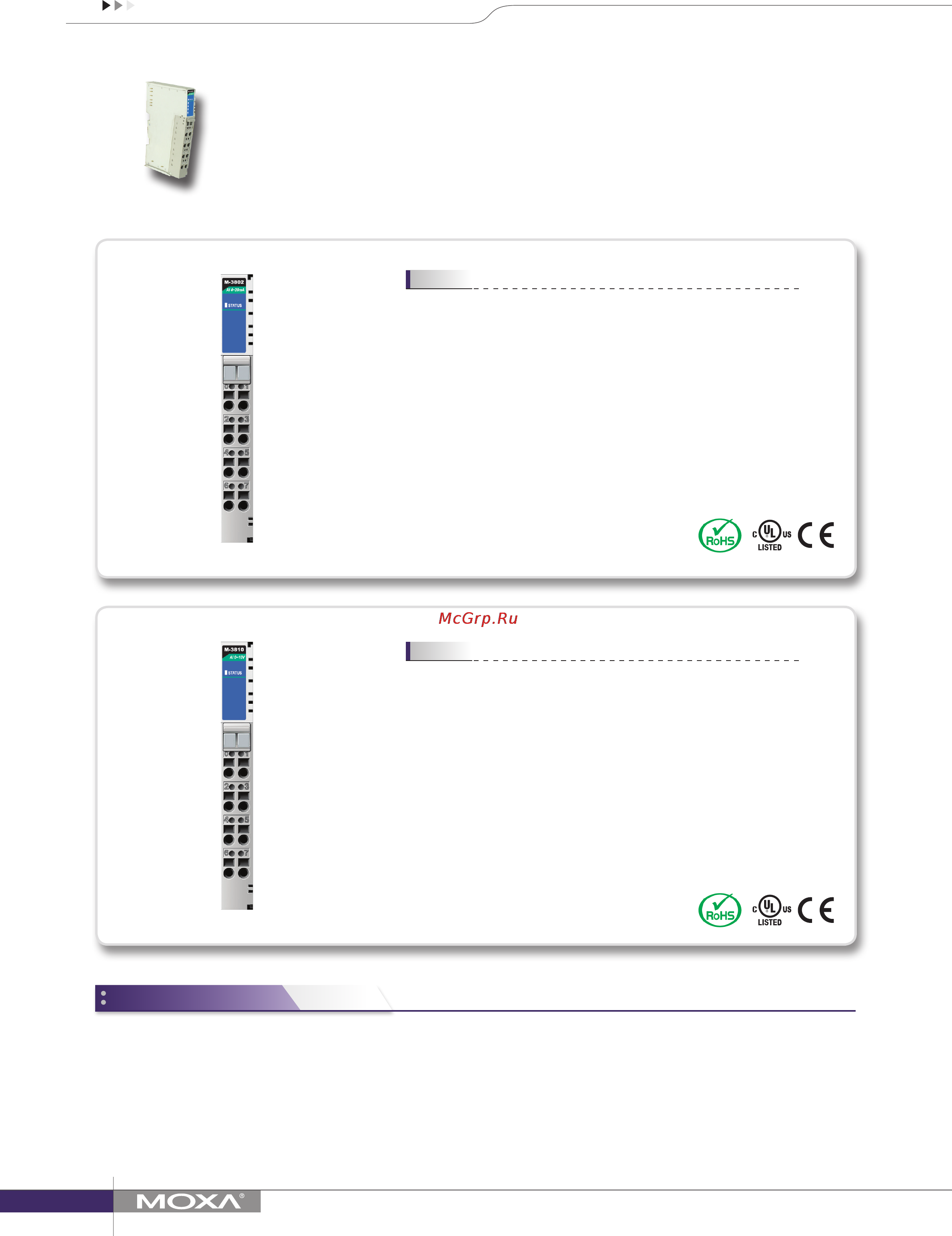

Analog Input Modules

8-channel analog input modules, 12-bit resolution

Ordering Information

M-3802: 8 analog inputs, 4 to 20 mA, 12 bits

Analog Inputs: 8 channels

Resolution in Ranges: 12 bits, 3.91 µA/bit

Input Current Range: 4 to 20 mA (single-ended)

Data Format: 16-bit integer (2’s complement)

Accuracy:

• ±0.1%, FSR @ 25°C

• ±0.3%, FSR @ 0°C, 60°C

Input Impedance: 120 ohms

Conversion Time: 4 ms for all channels

Power Consumption: 80 mA @ 5 VDC

Isolation: I/O to logic (photocoupler isolation)

Wiring: I/O cable max. AWG14

MTBF: 7,375,920 hrs (Database: Telcordia/Bellcore)

M-3810: 8 analog inputs, 0 to 10 V, 12 bits

Analog Inputs: 8 channels

Resolution in Ranges: 12 bits, 2.44 mV/bit

Input Current Range: 0 to 10 VDC (single-ended)

Data Format: 16-bit integer (2’s complement)

Accuracy:

• ±0.1%, FSR @ 25°C

• ±0.3%, FSR @ 0°C, 60°C

Input Impedance: 500K ohms

Conversion Time: 4 ms for all channels

Power Consumption: 60 mA @ 5 VDC

Isolation: I/O to logic (photocoupler isolation)

Wiring: I/O cable max. AWG14

MTBF: 7,288,320 hrs (Database: Telcordia/Bellcore)

Available Models

M-3802: Modular remote I/O module with 8 AIs, 4-20 mA, RTB, -10 to 60°C operating temperature

M-3810: Modular remote I/O module with 8 AIs, 0-10 VDC, RTB, -10 to 60°C operating temperature
