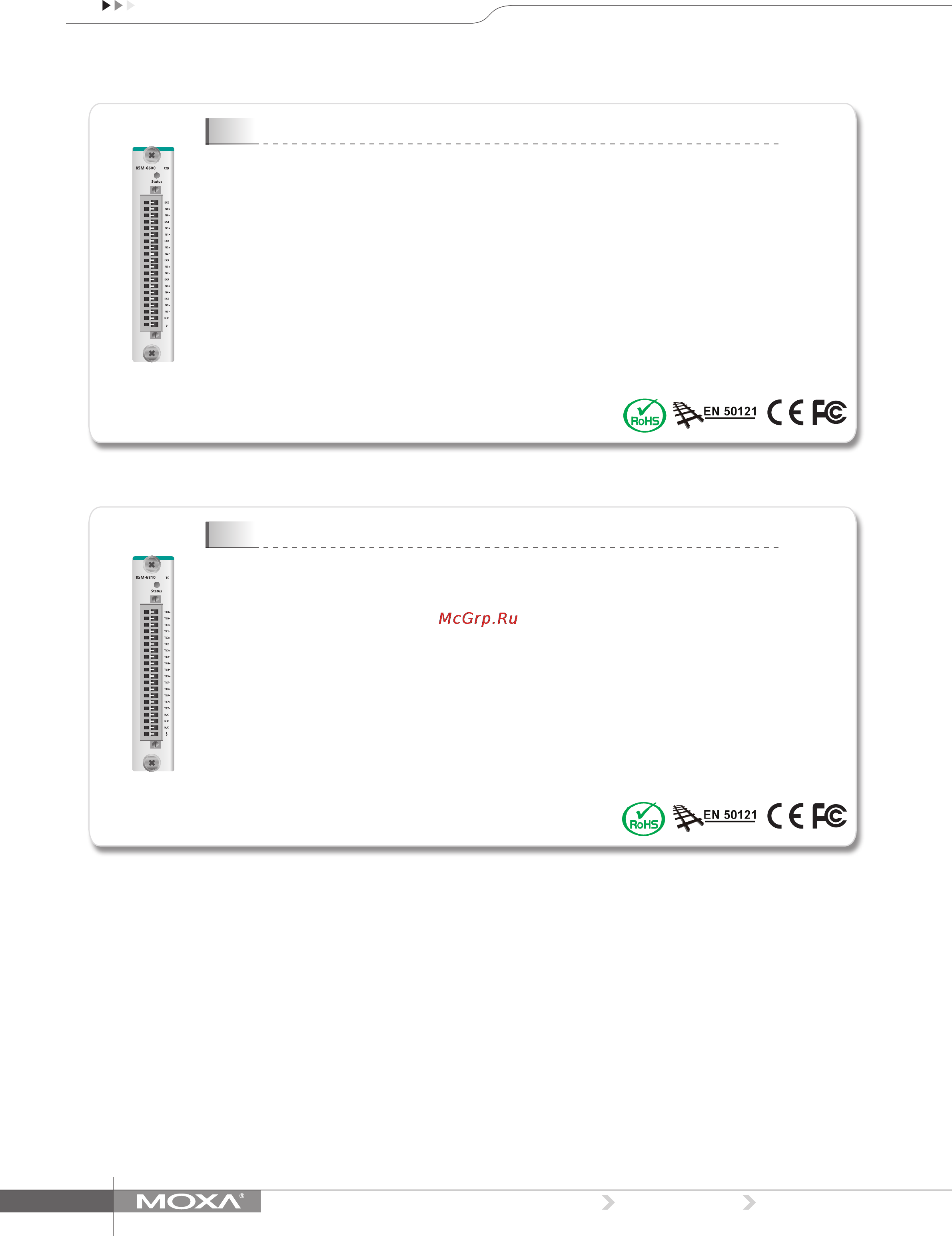

7
www.moxa.com
info@moxa.com
Programmable RTU Controllers
6 RTD inputs
8 thermocouple inputs
85M-6600-T: 6 RTD inputs
Inputs and Outputs
RTD Inputs: 6 channels
Isolation: 3K VDC or 2K Vrms
RTD Inputs
Input Type:
• PT50, PT100, PT200, PT500 (-200 to 850°C)
• PT1000 (-200 to 350°C)
• JPT100, JPT200, JPT500 (-200 to 640°C)
• JPT1000 (-200 to 350°C)
• NI100, NI200, NI500 (-60 to 250°C)
• NI1000 (-60 to 150°C)
• NI120 (-80 to 260°C)
• Resistance of 310, 620, 1250, and 2200
Sampling Rate (single channel):
• All channels: 12 samples/sec
• Per channel: 2 samples/sec
85M-6810-T: 8 thermocouple inputs
Inputs and Outputs
Analog Inputs: 8 channels
Isolation: 3K VDC or 2K Vrms
Thermocouple Inputs
Sensor Type: J (0 to 750°C), K (-200 to 1250°C),
T (-200 to 350°C), E (-200 to 900°C), R (-50 to
1600°C), S (-50 to 1760°C), B (600 to 1700°C),
N (-200 to 1300°C)
Millivolt Type:
• Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV
• Fault and over-voltage protection: -35 to +35 VDC
(power off); -25 to +30 VDC (power on)
Sampling Rate (single channel):
• All channels: 12 samples/sec
• Per channel: 1.5 samples/sec
Resolution: 16 bits
Resolution: 0.1°C or 0.1 ohm
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance: 625 kohms (min.)
Physical Characteristics
Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block
Environmental Limits
Operating Temperature: -40 to 75°C
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance: 1 Mohms (min.)
Physical Characteristics
Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block
Environmental Limits
Operating Temperature: -40 to 75°C
