Programmable RTU Controllers

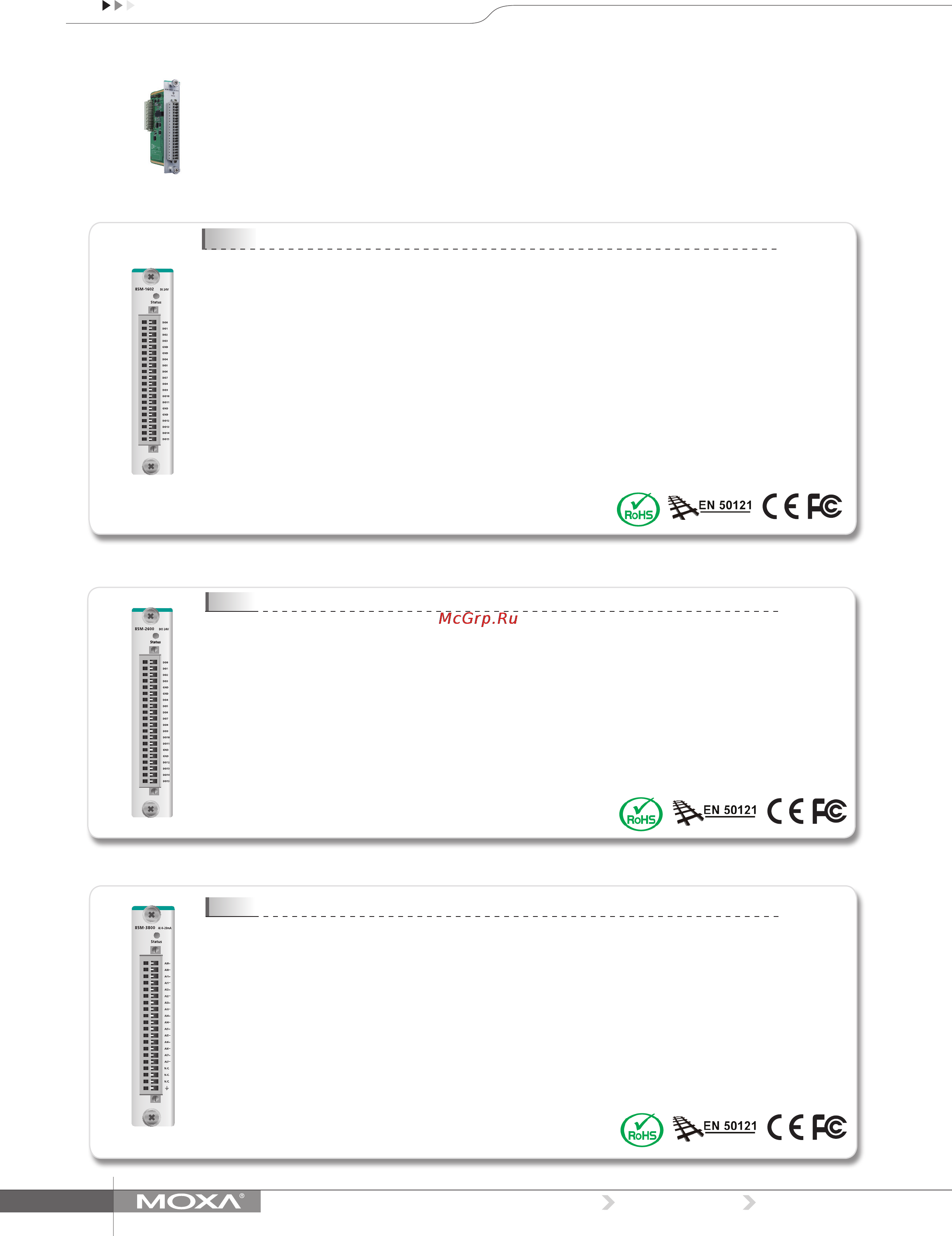

ioPAC 8500 Series I/O Modules
16 digital inputs, 24 VDC, sink/source, dry contact type
16 digital outputs, 24 VDC, sink type
8 analog inputs, 4 to 20 mA
85M-3800-T: 8 analog inputs, 4 to 20 mA
Inputs and Outputs
Analog Inputs: 8 channels
Isolation: 3k VDC or 2k Vrms
Analog Inputs
Type: Differential
Resolution: 16 bits
I/O Mode: 4 to 20 mA (wire off)
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate:
• All channels: 100 samples/sec
• Per channel: 12.5 samples/sec
Input Impedance: 125 ohms (min.)
Physical Characteristics
Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block
Environmental Limits
Operating Temperature: -40 to 75°C
Power Requirements
Power Consumption: 1.05 W @ 3.3 VDC
MTBF (mean time between failures)
Time: 1,512,906 hrs
Database: Telcordia (Bellcore)
85M-1602-T: 16 digital inputs, 24 VDC, sink/source, dry contact type
Inputs and Outputs
Digital Inputs: 16 channels
Isolation: 3k VDC or 2k Vrms
Digital Inputs
Sensor Type: Wet contact (NPN or PNP), dry contact
I/O Mode: DI or event counter
Dry Contact:
• On: short to GND
• Off: open
Wet Contact (DI to GND):
NPN (DI to GND):
• On: 0 to 3 VDC
• Off: 10 to 30 VDC
PNP (DI to GND):
• Off: 0 to 3 VDC
• On: 10 to 30 VDC
85M-2600-T: 16 digital outputs, 24 VDC, sink type
Inputs and Outputs
Digital Outputs: 16 channels
Isolation: 3k VDC or 2k Vrms
Digital Outputs
Type: Sink
I/O Mode: DO or pulse output
Pulse Output Frequency: 5 kHz
Over-voltage Protection: 45 VDC
Over-current Protection: 2.6 A (4 channels @ 650 mA)
Over-temperature Shutdown: 175°C (typical), 150°C (min.)
Current Rating: 200 mA per channel
Common Type: 8 points per COM
Counter Frequency: 5 kHz
Digital Filtering Time Interval: Software selectable (by 0.1 ms)
Physical Characteristics
Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block
Environmental Limits
Operating Temperature: -40 to 75°C
Power Requirements
Power Consumption: 1.2 W @ 3.3 VDC
MTBF (mean time between failures)
Time: 1,132,561 hrs
Database: Telcordia (Bellcore)
Physical Characteristics
Wiring: I/O cable, max. 16 AWG
Connector: Spring type terminal block
Environmental Limits
Operating Temperature: -40 to 75°C
Power Requirements
Power Consumption: 0.85 W @ 3.3 VDC
MTBF (mean time between failures)
Time: 792,571 hrs
Database: Telcordia (Bellcore)
