Rotate adjustment

NOTE

Do not grasp the lens when rotating the camera. Instead, hold

the two copper cylinders.

NOTE

After adjusting the PAN, TILT, and ROTATE positions, tighten all

of the screws to ensure that the orientation of the camera does

not change.

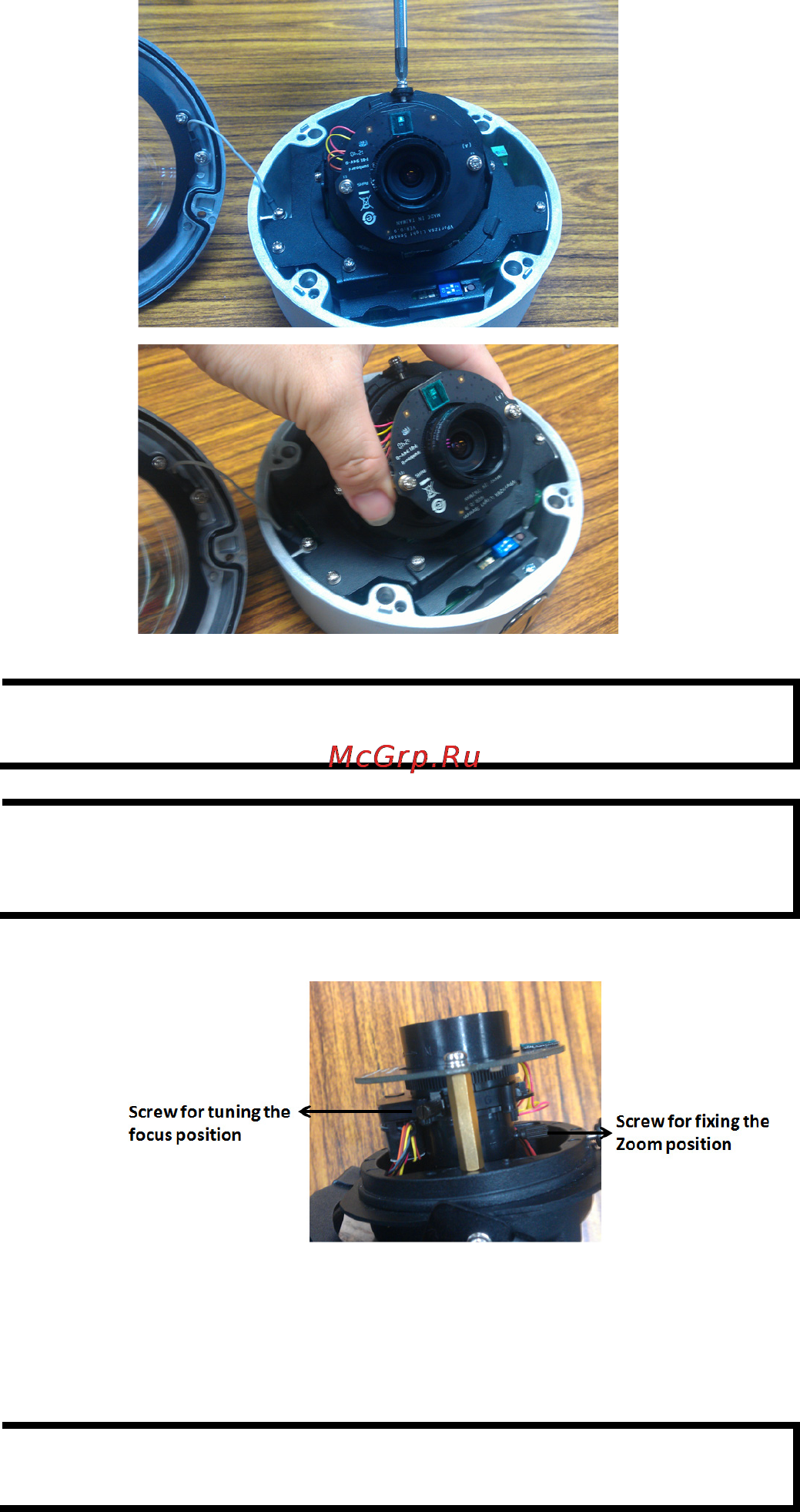

Zoom and Focus adjustment

To adjust the Zoom and Focus positions, connect to the

camera’s web console first so that you can view a

live video

feed. Next, loosen the screws for both the zoom and focus

positions, and then rotate the lens to focus on the desired

image. Finally, tighten both screws.

NOTE

To adjust the focus position, loosen the appropriate screw and

then rotate the lens head.

Step 8:

Fasten the upper case to the bottom case to complete the

hardware installation.
